MEchanism

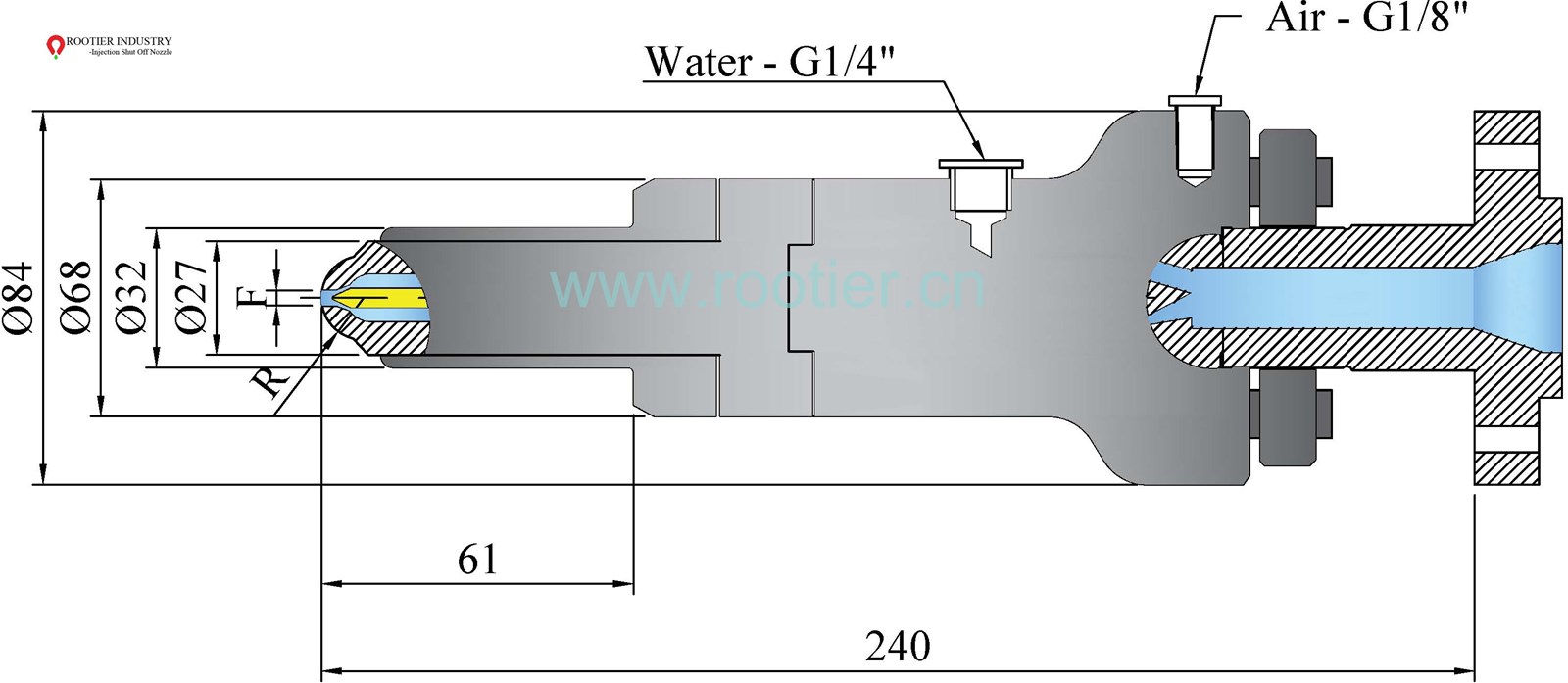

during storage period of injection unit process, the integrated pneumatic system will drive inside needle to seal the channel and prevent material from leakage, and open with machine signal to offer precise injection. Meanwhile the integrated water cooling system will guarantee the LSR running in proper temperature in case of vulcanization and block the nozzle.
Appliance field
Baby and infant product, Medical products, Electronic components.
| Max. Injection Rate |
: 500 cm3/sec |
| Max. Screw Dia. (Ref.) |
: 60 mm |
| Air Connection |
: G 1/8 |
| Drive Pressure |
: < 6Bar |
| Water Connection |
: G 1/4 |
| Max. Temperature |
: 120 |
| PARAMETER |
LSR-I |
| Max. Injection Rate |
Cm3/sec |
500 |
| Nozzle Body Length |
mm |
185 |
| Front Barrel Length |
mm |
65 |
| Air Connection Size |
/ |
2-G1/8" |
| Water Connection Size |
/ |
2-G1/4" |
