Introduction

Piston type pneumatic shut-off nozzle mainly serves in high speed injection synchronization, compare to needle type pneumatic nozzle, the unique piston sealing design offers single pass channel with very less pressure loss and max. Shot weight, and the simple structure also guaranteed the excellency in product color changing during injection, which can significantly improve production efficiency, shorten production time.

Mechanism

during storage period of injection unit process, through integrated air cylinder, the inside piston is pushed in radial direction to lock and open flowing channel, so that material will be blocked inside nozzle to prevent leakage. and open with machine signal to offer precise injection.

Appliance field

Food container, Auto parts, Electronic components.

Max. Injection Rate	: 4500 cm3/sec
Actuator	: Pneumatic
Drive Air Pressure	: 6-10 Bar
Max. Injection Pressure	: 3000 Bar
Max. Temperature	: 450
Suitable Equipment	: Horizontal

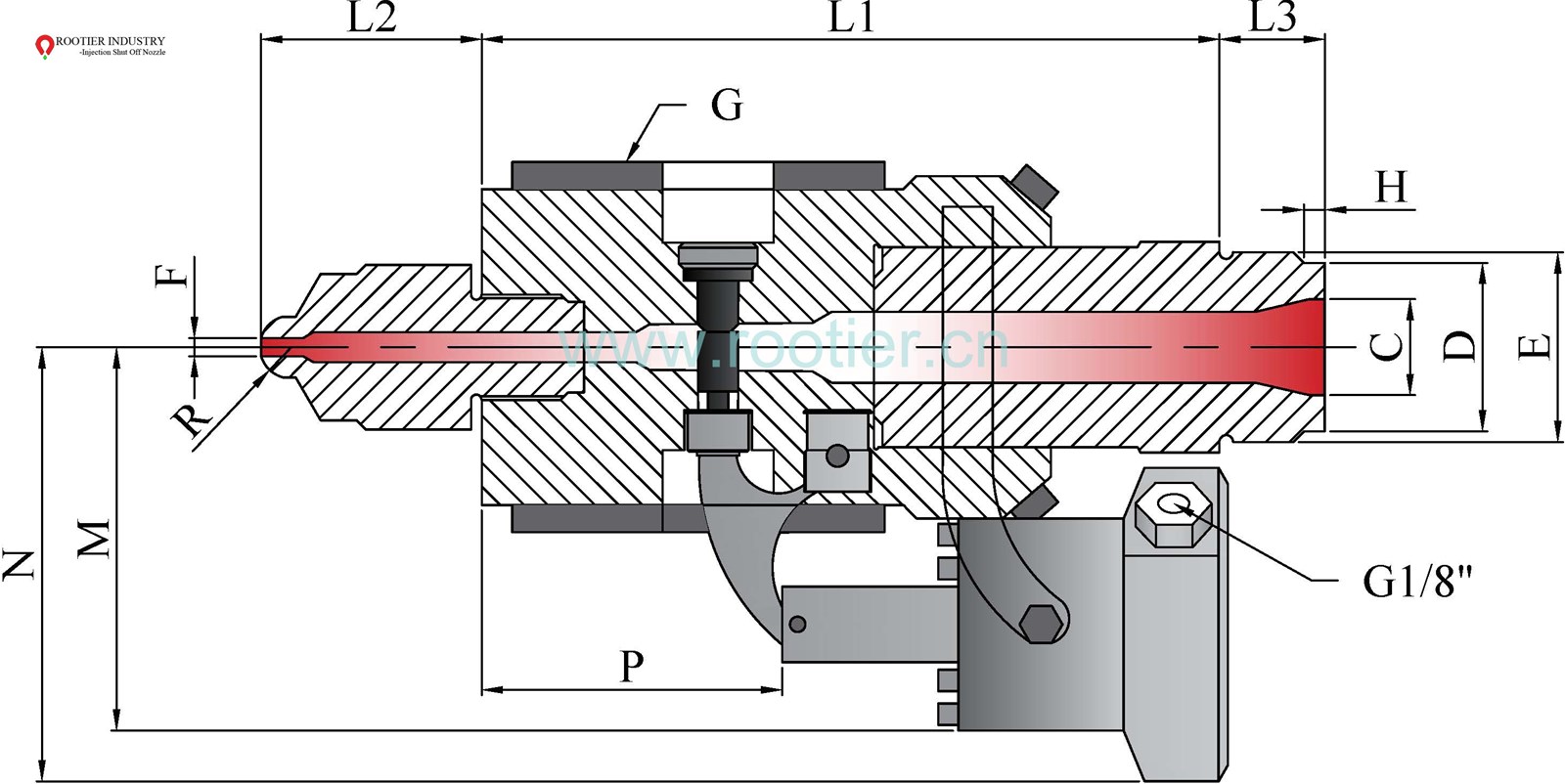

PARAMETER		RP-I	RP-II	RP-III
Max. Injection Rate (PS)	Cm3/sec	500	3000	4500
Max. Screw Size (Ref.)	mm	60	140	220
Nozzle Body Length (L1)	mm	140	180	310
Heater Size (G)	mm	60*80	80*100	110*180
Air Pressure (Ref.)	Bar	6	8	10
P	mm	55	65	90
M	mm	72	80	135
N	mm	85	100	170
