Model: YHJ3.7

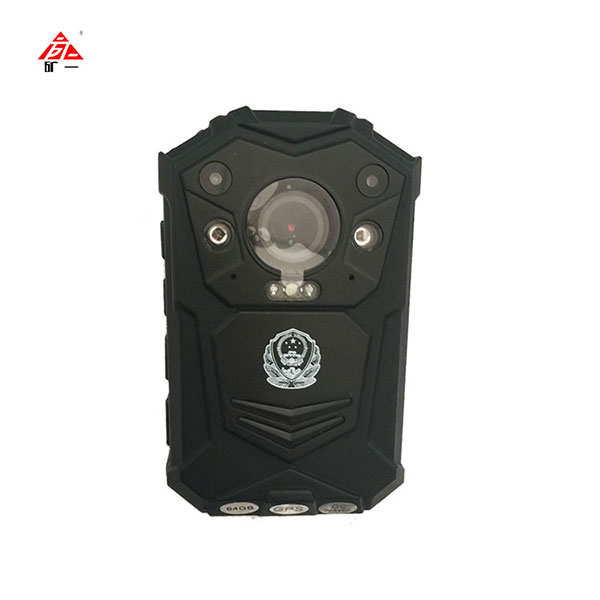

Description: YHJ3.7 Mining Intrinsic Safe Video & Audio Recorder

MA: MFA170017 (National Safety sign for coal mining products)

ExibI: CMExC16.4624X (Intrinsic safe and Explosion-proof products certificate)

ExibII:CMExC17.4213 (Intrinsic safe and Explosion-proof products certificate)




Introduction:

1. Digital video camera, digital Camera, talkback transmitter function.

2. Record detection process.

3. Applicable for coal mining, Non-coal mining, industrial park, railway, police fields.



Technology parameters:

1. Sensor: 32-megapixel, CMOS

2. Night vision function: see facial Expressions clearly within 12 meters; see people's profile within 20 meters.

3. Video output: HDMI port: Composite video signal output (PAL).

4. Wireless transmission: external Wireless transmit module, support data flow or file format transmission.

5. Prerecord/ Video delay function: 10s.

6. Intercom function: built-in Microphone and horn.

7. Optical filter switcher: Automatic/ manual.

8. Interface: USB 2.0/HDMI/data Interface.

9. Flash lamp: warning flash Function

10. GPS function: built-in GPS Module.

11. External cell box: expand Battery capacity and have charging function.

12. Display: 2.0 inch 16:9 TFT LCD, HD 960 240.

13. Large field angle: horizontal Field angle 135.

14. Video: H.264 compressed format, 1296P(2304*1296) 19201080, 30 frames/s 14401080, 30 frames/s 1280720, 60 frames/s, 848480.

15. Image pixel: 76004275 32-megapixel, 54723648 23-megapixel, 46083456 16-megapixel, 40003000, 32002400, 25921944

16. Battery operating time: high Capacity battery, 3.7V 3600mAh, continuous working time 10 hours, stand-by time 240 hours, superior to standard A.

17. Storage capacity: standard 16G, Max 128G.

18. Anti-impact: can withstand the Fall from 3m height.

19. Zoom: 1-8 multiple digital zoom.

20. Shortcut video function: under Shutdown status, long-pressing video button can take videos directly.

21. Lighting: LED

22. Dimensions: 906030mm

23. Weight: 150g
