| Processing: | Storage Tank |
|---|---|
| Certification: | CE PED EAC GOST |
| Processing: | design, welding, polishing, acid washing etc. |
| Processing Types: | wine or cider |
| Brand Name: | YUXIN |
| Condition: | New |
| Dimension(L*W*H): | capacity request |
| Weight: | depengs on size |
| Power(W): | customized |
| Voltage: | customized |
| Model Number: | customized |
| Place of Origin: | China (Mainland) |
| product name: | small 1000l cider fermentation tank / fermentation vessel |
| key words: | cider fermentation tank,fermentation vessel,small fermentation tank |
| material: | stainless steel |
| manway: | option |
| Polish: | Sanitary Standard Polishing |
| thickness of tanks: | 3mm for interior shell/2mm for exterior shell |
| Insulation: | Polyurethane with Thickness=80mm |
| control system: | PID,PLC with touch screen or common control |
| interior: | pickling and passivating or mirror polishing |
| False bottom: | Option |
Quick Details
Specifications

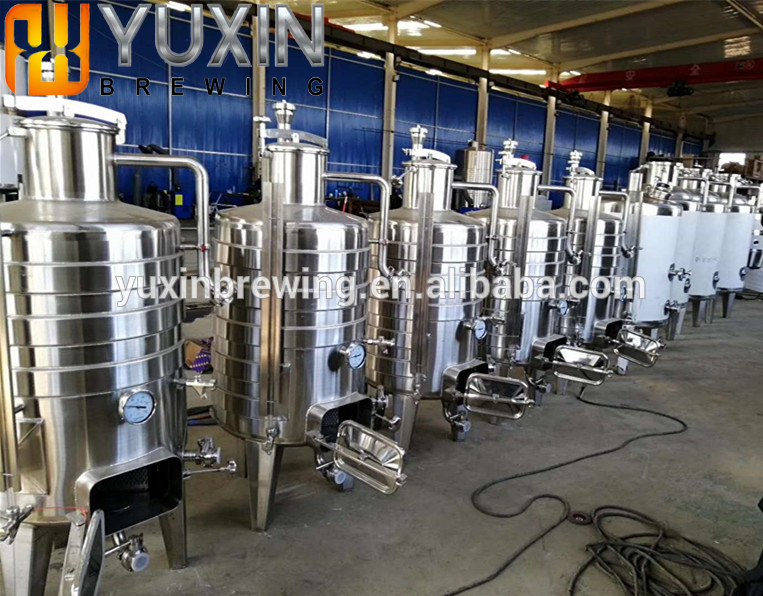

Small 1000l cider fermentation tank / fermentation vessel
We focus on making and suppling perfect wine tanks for your perfect wine.
Specification:
We are serious for your project and our product, from the raw material to the finished products, with qulified purchasing channels, skilled workers, strict quality management.

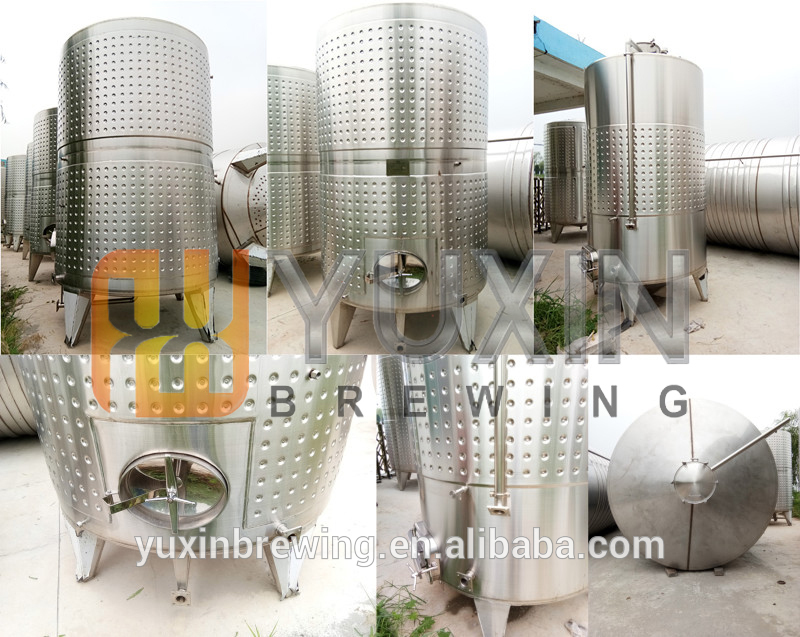

WINE FERMENTATION (STORAGE) TANK
Large or small, standard or custom, red or white wine, YUXIN would be your best choice.
Best wine making depends on high quality tanks. Decades of years wine tanks manufacture experience combined with strict quality standard and professional design produce a perfect product.
We Not only offers common wine fermentation tanks, but also design and manufacture modern wine fermenters.
| No. |
Specification |
O. D. |
Total H. |
Remarks |
| 1 | 19hl wine tank |
1310 |
2317 | Shell with jacket |
| 2 | 38hl wine tank |
1460 |
3227 | Shell with jacket |
| 3 | 50hl wine tank |
1610 |
3447 | Shell with jacket |
| 4 | 57hl wine tank |
1710 |
3460 | Shell with jacket |
| 5 | 76hl wine tank |
1970 |
3497 | Shell with jacket |
Specification:
| Item |
Wine EQuipment |
Wine EQuipment |
Wine EQuipment |
Wine EQuipment |
| Capacity(t/year) |
200 | 500 | 1000 | 3000 |
| Area of factory(m2) |
1200 | 2200 | 3600 | 6000 |
| Power(kw) |
120 | 360 | 660 | 1500 |
| Electricity(kwh/kl) |
200 | 190 | 160 | 140 |
| WAter consumption(m3/kl) |
6 | 6 | 5 | 4 |
| BEer ratio(%) |
45-70 | 45-70 | 45-70 | 45-70 |
| TOtal energy loss |
35 | 35 | 35 | 35 |
| BOttles/kl |
1500-2000 | 1500-2000 | 1500-2000 | 1500-2000 |
| WOrkers |
25 | 40 | 80 | 200 |
Control system:
Ordinary PID control cabinet or PLC control with touch screen
01.Schneider low voltage electrical components; Danfoss VFD;
02.Wiring diagram will be provided with the panel;
03.Wiring diagram and English nameplate.
04.All motors must have fuse and overload protection.
YUXIN offers all necessary peripheral equipment, so that your brewery/brewpub has everything for high quality brew.
Service:
Drawings, layout, loading diagram, installation/debugging and training etc.
Packaging:
Air bubble film, stretching membrane, steel shelf, free-fumigation wooden box, to make everything safe in containers.
