Warranty: | 1 year |
---|---|
Certification: | ce |
Brand Name: | Eclipse |
Type: | Air Heater |
Condition: | New |
Quick Details
Specifications

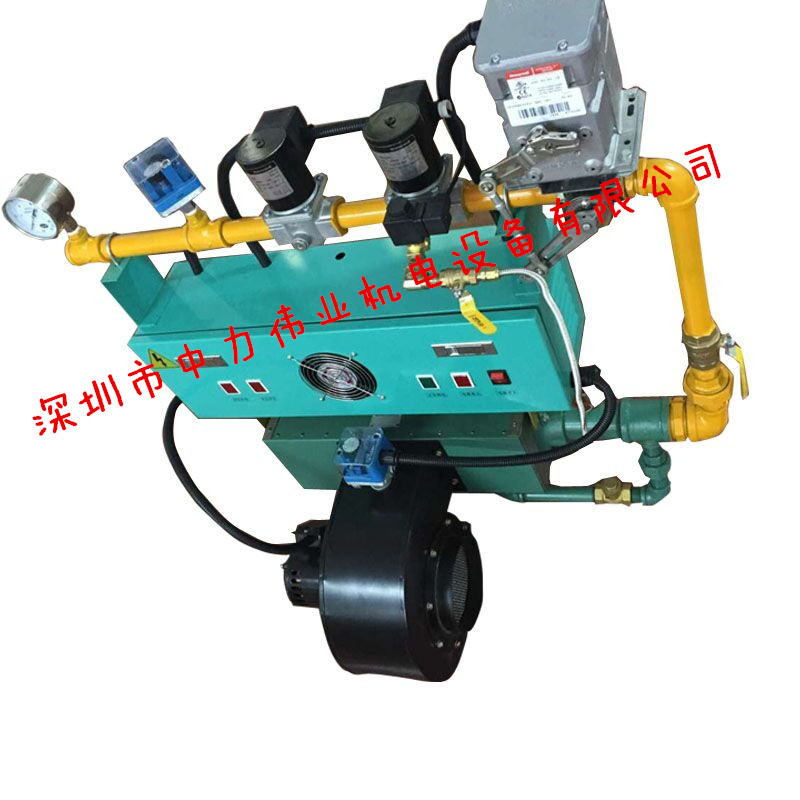

ECLIPSE
Burner series is a high efficiency air heating auto gas burner researched by
Us(Shenzhen Zhongliweiye electromechanical equipment Co.,Ltd),this burner
Series is heating by both of air and gas mix heating,it can burn completely,save
Power(gas).
ECLIPSE burner series is used special alloy in
the handpiece,have long working hours in high temperature.Also it is get
High safty protection by multiple protection
Desighing.Easy maintenance and repair.
ECLIPSE burner series was proved by many users,have high
Drying effect of powdered and lequired coating,electroplating.It widely use for
Drying heating of pringting,food,wood,Agriculture products,etc.
Specification |
Heating(kcal/h) |
Length(MM) |
Width(MM) |
Height(MM) |
Weigh(KG) |
RAH-40 |
116 |
165 |
170 |
286 |
7.5 |
RAH-80 |
233 |
318 |
170 |
286 |
11 |
RAH-120 |
349 |
472 |
170 |
286 |
14.5 |
RAH-160 |
466 |
632 |
170 |
315 |
22.5 |
RAH-200 |
582 |
775 |
170 |
315 |
27.5 |
RAH-240 |
698 |
925 |
170 |
315 |
38 |
ECLIPSE burner series is a high
Efficiency air heating auto gas burner,this burner series is heating by both of
Air and gas mix heating,it can burn completely,save power(gas,LPG,LNG).
ECLIPSE burner series is used special alloy in
the handpiece,have long working hours in high temperature.Also it is get
High safty protection by multiple protection
Desighing.Easy maintenance and repair.
ECLIPSE burner series was proved by many users,have high
Drying effect of powdered and lequired coating,electroplating.It widely use for
Drying heating of pringting,food,wood,Agriculture products,etc.
Specification |
Heating(kcal/h) |
Length(MM) |
Width(MM) |
Height(MM) |
Weigh(KG) |
RAH-40 |
116 |
165 |
170 |
286 |
7.5 |
RAH-80 |
233 |
318 |
170 |
286 |
11 |
RAH-120 |
349 |
472 |
170 |
286 |
14.5 |
RAH-160 |
466 |
632 |
170 |
315 |
22.5 |
RAH-200 |
582 |
775 |
170 |
315 |
27.5 |
RAH-240 |
698 |
925 |
170 |
315 |
38 |
Other series:
1.Eclipse Airheat this burner is design for heat hot
Air circulation,the linear gas nozzle design allows for very uniform
Distribution of heat energy within the hot air system. the high proportion
Stepless firepower adjustment energy achieves the accurate temperature control,
the rapid temperature rise and the energy save
Power regulate ratio: 40:1
Fuel available:LNG,LPG,propane,butane
Power output:100,000kcal/h-1,600,000kacl/h
Furnace temperature max:815C
Typical used:Coating drying, materials drying, direct - burning gas air
Conditioning and food processing
2.Eclipse Ratiomatic series It is most suitable for the
Industrial process in which the positive pressure and pressure change greatly
In the furnace. the maximum output power regulation ratio can be up to 100:1,
and the appropriate length of combustion drum can be selected according to the
Thickness of furnace wall
Power regulate ratio:30:1-100:1
Fuel available:LNG,LPG,propane,butane
Power output:125,000kcal/h-17,500,000kcal/h
Furnace temperature max:1038C
Typical used:High temperature curing, incineration combustion, glass annealing,
Aluminum solution and soaking
3.Eclipse AH-MA series Can be combined into a variety of shapes, do
Not need combustion fan
Power regulate ratio:30:1
Fuel available:LNG,LPG,propane,butane
Power output:300,000kcal/h/feet
Furnace temperature max:454C
Typical used:Direct combustion gas air conditioning heating section, and other
Need hot air but hot air volume stable
4.Eclipse Thermjet TJ series is a low emission, high power
Ratio burner, through the generation of high temperature high-speed airflow to
Improve the temperature uniformity and thermal efficiency in the furnace, TJ
Series can also use the combuste air of highest temperature of 315C
Combustion air
Power regulate ratio:50:1
Fuel available:LNG,LPG,diesel
Power output:37,500kcal/h-2,500,000kcal/h
Furnace temperature max:1530C
Typical used:Metal annealing furnace, metal melting furnace, incinerator, small
Glass kiln, ceramic kiln and fluidized dryer
