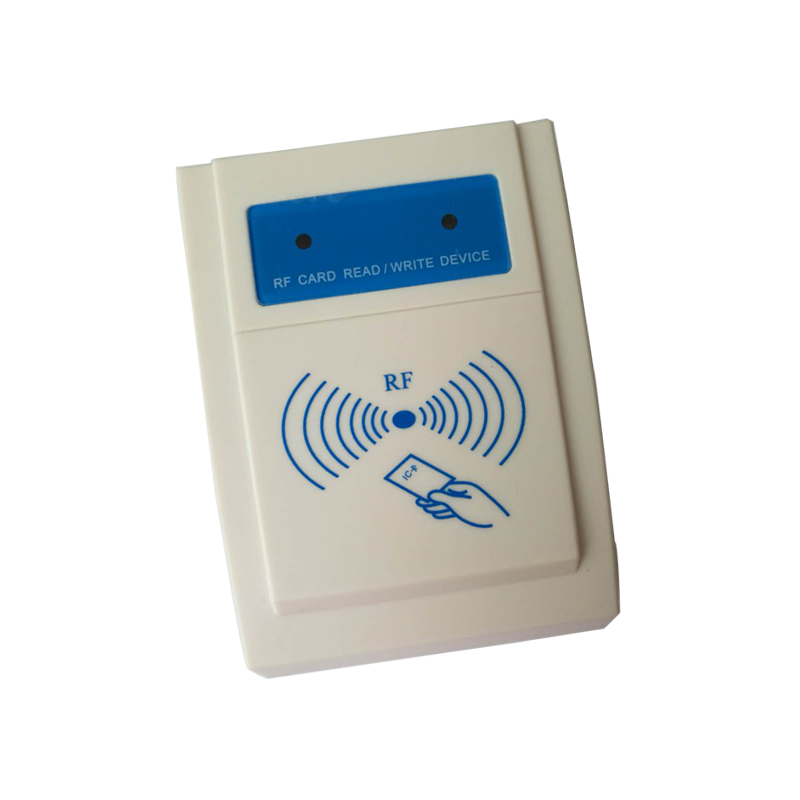

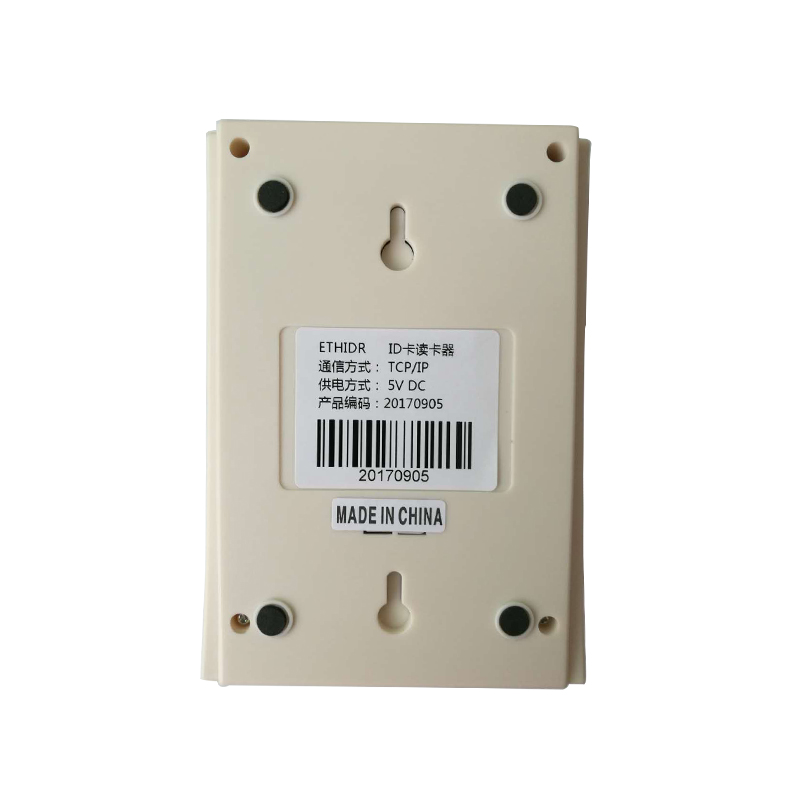

TCP/IP Ethernet RJ45 RFID CARD reader

Specification

Frequency: 125khz or 13.56mhz optional

Interface:RJ45

Voltage: 5V

Dimension: 142x100x31mm

Material: ABS

OPtional plug type: UK type, Euro type, Australia type or USA type.



Features

10/100M Ethernet interface, Support MDI/MDIX

Support TCP Server, TCP Client, UDP Server, UDP Client and DHCP.

Can transmission between different Gateways, Also can use in Internet.

Support command to drive the on-board buzzer

Real-time transmission

Effective distance is larger than 5cm

5V DC supply, low power consumption less than 250MA.

Working temperature -20 to 75,Storage -40 to 85

It don't have relay and can not open the door,Only reading the data.
