Specification:



1.Support MF 1K,4K, S50 S70 NTAG203,Ultralight,NTAG213,NTAG215,NTAG216Its compatible RFID MF card.( If you need MF card please feel free to contact with us).

2.Frequency: 13.56MHZ Khz

3.Read first 10 digits of the RFID/Proximity card.( We also have CARD read the last 8 digits, if you need please contact with us)

4.Support  Windows.NT.XP,LIUNX,Android.

5.Communication speed: 106Kbit/s

6.Power: DC3.3V to DC 5V(5%)

7.Reading distance: 3-8cm

8.Interface: USB

9.Operating temperature: -10C~ +70C

10.Storage temperature: -20C~ +80C

11.Size:( L W H) 75x20x7.5mm

12.Weight: 70g. with USB Cable: 120g

13. Color: White ( the same as the web photo )



Package include:

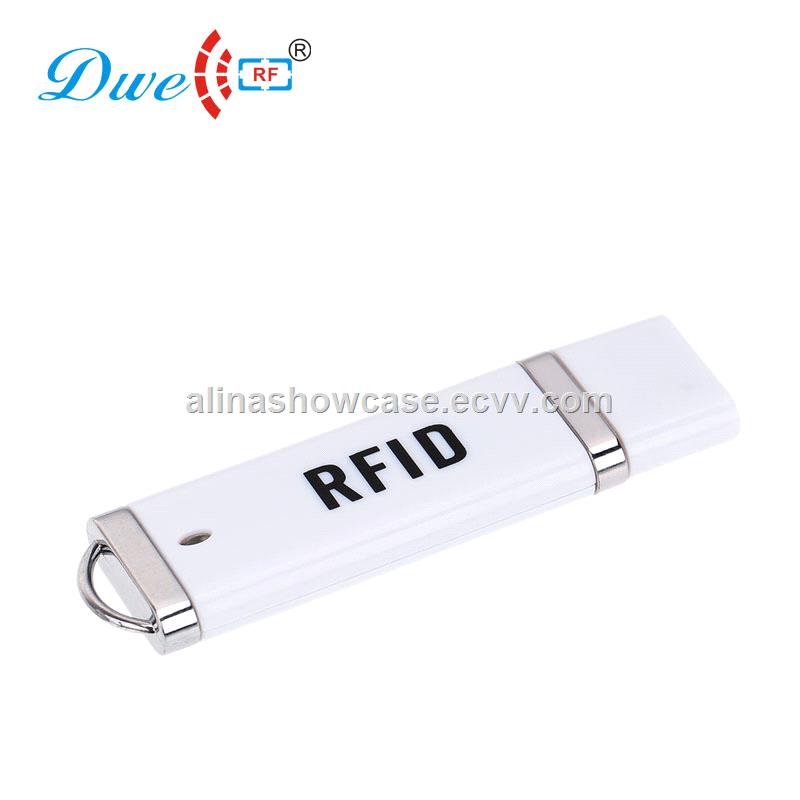

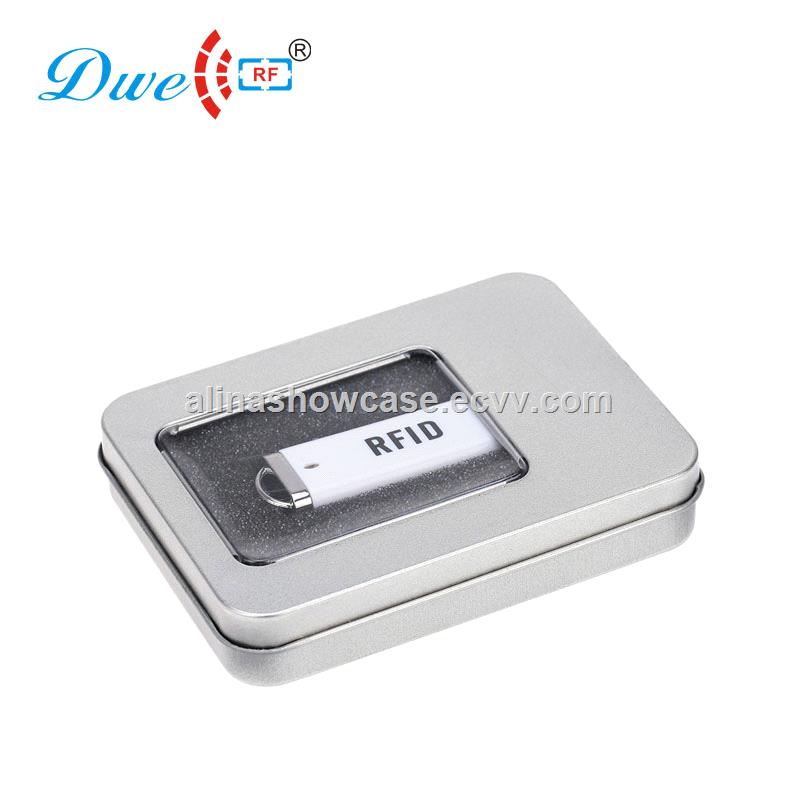

1 x new  RFID USB Pen Reader ( if you need OTG cable, kindly contact us, thanks)



Installation Instructions

First: Connect the RFID USB Pen Reader to the computer USB port.

Second: the reader will 'drip' sound and flash about that power successfully, and then half a second after the 'drip' sound

and flash about that device self-test successfully, without Install any drivers, windows will automatically recognize it.

Third: Open one EXCEL or WORD,the card number would be input by itself.



Connect USB pen reader to OTG cable, OTG cable to smartphone, open any file can type letters, the card number would be input by itself.
