| Processing: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 3 years |
| Processing: | Fermenting Equipment |
| Brand Name: | YUXIN |
| Condition: | New |
| Certification: | CE PED EAC GOST |
| Processing Types: | beer |
| Dimension(L*W*H): | customized |
| Weight: | depends on capacity |
| Power(W): | depends on size |
| Voltage: | customized |
| Model Number: | YUXIN 500ml portable beer bottling and capping machine |
| Place of Origin: | China (Mainland) |
| Product Name: | 500ml portable beer bottling and capping machine |
| Keywords: | beer bottling and capping machine,portable bottling machine |
| working heads: | customized |
| capacity: | 200-1000cans per hour |
| filling method: | isobar filling |
| sealing: | rotary sealing automatically |
| control system: | common PID control or PLC control with touch screen |
| type: | manual, semiauto,automatic |
| dimension: | 1800*750*1800mm |
Quick Details
Specifications

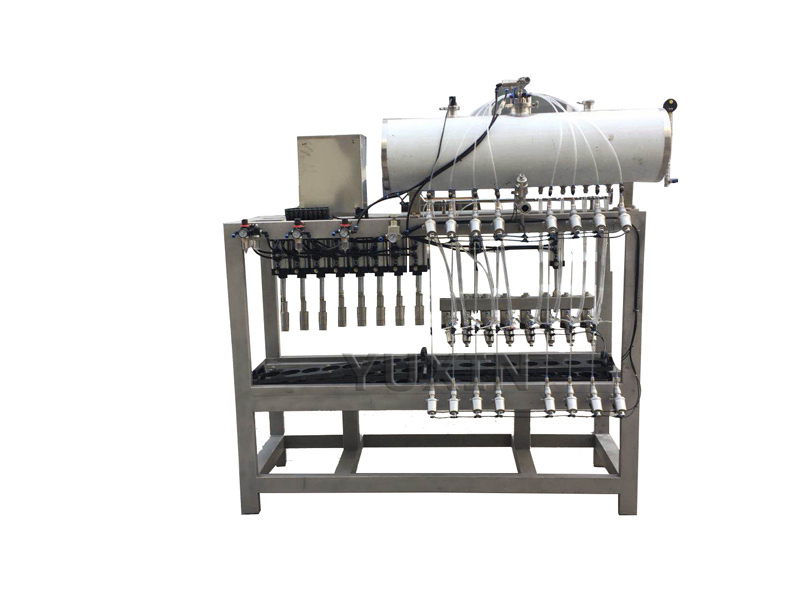

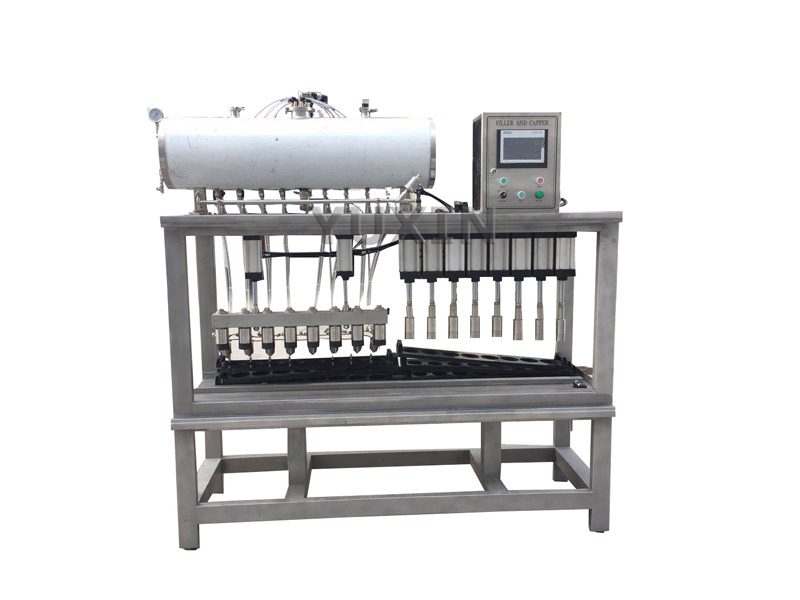

500ml portable beer bottling and capping machine
Specification
Technology Feature
(1) Adopts high precision mechanical valve, has advantages of fast filling speed, high precision in liquid level.
(2) Sealed filling cylinder made of 304 stainless steel and automatic adjustment of the liquid level to realize isobaric filling.
(3) Has CIP cleaning function, touching screen control, the whole machine is protected by stainless door.
(4) Adopt vacuumization and CO2 preparing pressure principal, and then prepare pressure for a second time to make sure the filling quality.
(5) The height of the washing filling capping machine is adjustable to fill different kinds of beer bottles within the design scope.
(6) Main transmission adopts a transmission combination of cog-type belt and gear box type, high efficiency and low noise.
(7) Main transmission adopts stepless speed regulation. The machine adopts MITSUBISHI PLC industrial computer control.
(8) When there are bottles, it will fill. Otherwise, it won't.
(9) There are two kinds of control system, manual and automatic. When using manual system, if there is no beer or cap, the machine can alarm automatically. When using automatic system, it can automatically adjust if you set the requirement.
Packaging & Shipping
Packaging: free-fumigation wooden box, and steel rope, to make everything safe in containers.
