| Item Type: | High Mast Lights |
|---|---|
| Brand Name: | Green Inova |
| Certification: | CE,EMC,ETL,RoHS,SAA,UL |
| IP Rating: | IP66 |
| Lamp Body Material: | Aluminum |
| Item Type: | Outdoor LED Light |
| Model Number: | 3H300XXXX2XXX |
| Place of Origin: | China (Mainland) |
| Base Type: | E40 |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(): | |
| Color Temperature(CCT): | Cool White |
| CRI (Ra>): | 70 |
| Lamp Luminous Efficiency(lm/w): | 125 |
| Lamp Luminous Flux(lm): | 40000 |
| Lamp Power(W): | 300 |
| Input Voltage(V): | 100-277V |
| Light Source: | HID |
Quick Details
Specifications
Description

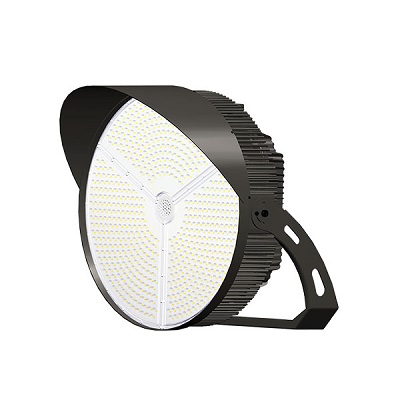

Green Inova 's powerful LED high mast light is designed to replace high power traditional lighting products, such as Metal Halide, High Pressure Sodium light, High Intensity Discharge Lamp, etc., available in 300W, 400W, 500W, 600W, 750W, 950W, 1200W, replacing MH/HPS/HID from 600W to 3500W. the light output is up to 125lm/w, more energy-saving than ever.
the compact design makes shipping and installation much easier. and excellent thermal management with cold-forging heat sink and unique heat dissipation structure makes it much better cooling system than other competitives, enables longer lifespan, almost free of maintenance.
Specification Summary
| Typical Model | 3H300XXXX2XXX |
| Power (W) | 300W |
| Color Temperature (CCT) | 3000K/4000K/5000K/5700K/6500K (others available) |
| Lumen Output (LM) | 38,486 |
| Efficacy (lm/W) | 128 |
| Input Voltage (V) | 100-277V (347-480V available) |
| Power Factor | >95% |
| CRI | 70Ra, or 90Ra |
| Gross Weight | 13.7kgs / 30.2 lbs |
| Dimensions (in) | 377mm L172mm |
| IP Rating | IP67 |
| Beam Angle () | 20*20, 30*30, 40*40, 60*60, 90*90, 120*120, 60*120, Type III, Type V |
| Driver Brand | Meanwell |
| LED Class | UL Listed: LM80 |
| Driver Class | UL Listed: Class II |
| SPD | 20KV SPD standard (40KV optional) |
| Photocontrol | Twist-lock photocell available |
| Dimming Options | 0-10V dimming / Zigbee wireless dimming available |
| Zigbee Control | on/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP) |
| Environment | Indoor or outdoor |
| Operating Temperature | 40C- 40C / -40F - 104F |
| Certifications | UL/CB/CE/ENEC/ROHS/PSE/RCM/SAA/EAC/KC/BIS/Inmetro/TISI/NOM/SASO COC (pending) |
| L70 Lifetime (hours) | >100,000 Hrs (L70 @ 25C) |
| Warranty | 7-year warranty for 100-277V version, 5-year warranty for 347-480V version |
Features
High Protection Level up to IP67
Light engines and driver compartment are sealed to protect LEDs, electrical components, and terminal block against dust and moisture, increasing reliability and extending lifespan.
High Impact Resistance
Meets IK08 mechanics impact protection code.
Anti 17-level Wind Power
Fixture's Low profile and pin structure effectively reduce wind load, plus light weight and high mechanics strength, the fixture has strong ability of anti-wind.
High Vibration Resistance
Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.
Surge Suppression Protection
Optional 20KV SPD for adding an additional layer of protection for the light.
HD TV Broadcasting
High lumen efficiency, flicker free, and options of CRI>90, TLCI>90, meeting the lighting requirements of HD TV broadcasting for sports events.
Intelligent Control
Intelligent Zigbee controller, supports wireless on/off, dimming, color turning, grouping, status monitoring, remote control, all simply and easily via smart-phone.
Twist-lock Photocontrol
Optional twist-lock photocell at the back, can be quickly upgraded in the future.
Beam Angle
Optics of this 300W version are 22, 40, 60, 90 optional. A variety of lighting distributions, UV stabilized materials, meeting demands of various applications. Widely used for both indoor and outdoor, including stadium, high mast pole, airport, roadway, etc..
