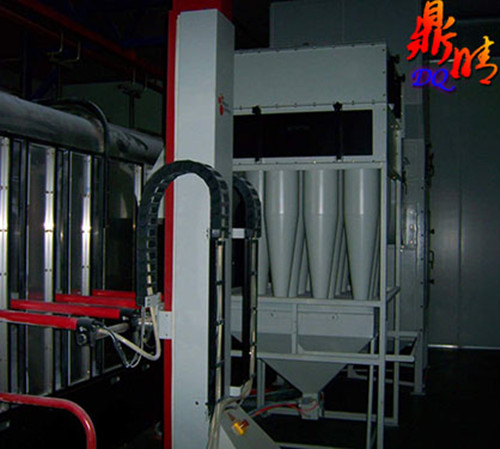

Equipment Name: Small Cyclone Recycling Powder Room

Equipment introduction:

1. the spray chamber is made of SUS304 stainless steel or galvanized (or sprayed)

2. Primary recovery consists of multiple unit small cyclones

3. Secondary recovery consists of fiber high-precision filter

Equipment advantages:

1. It is composed of SUS304 stainless steel or galvanized spray-coated board. It is easy to clean plastic powder.

2. Multi-unit small cyclone separator can effectively recover secondary powder and directly use it by suction pump.

3. after the secondary recovery, the indoor discharge can be realized, the exhaust pipe can be omitted, and the equipment is simpler and more beautiful.

Application: It is suitable for continuous automatic coating of various hardware, sheet metal parts, profiles and tubular parts.

Technical Parameters:

Spray booth total length: 6000mm width: 1200-2000mm

There are automatic spray positions on both sides, manual fill position,

the small cyclone separation rate is 95%, and the exhaust air volume is 16000M3/h.
