Is specially used for purifying unqualified turbine Oil, especially for serious emulsion turbine oil.

It can quickly and efficiently break emulsification, separate water, gas, particles from oil. so that makes sure quality of treated oil to achieve new oil's standard, ensure Whole turbine system work safely. this equipment use a special polymer Materials as filter medium combined with vacuum separating technology to break Emulsification, dewater, degas, remove acid and particles, make the badly Turbid turbine oil becomes clear transparent.

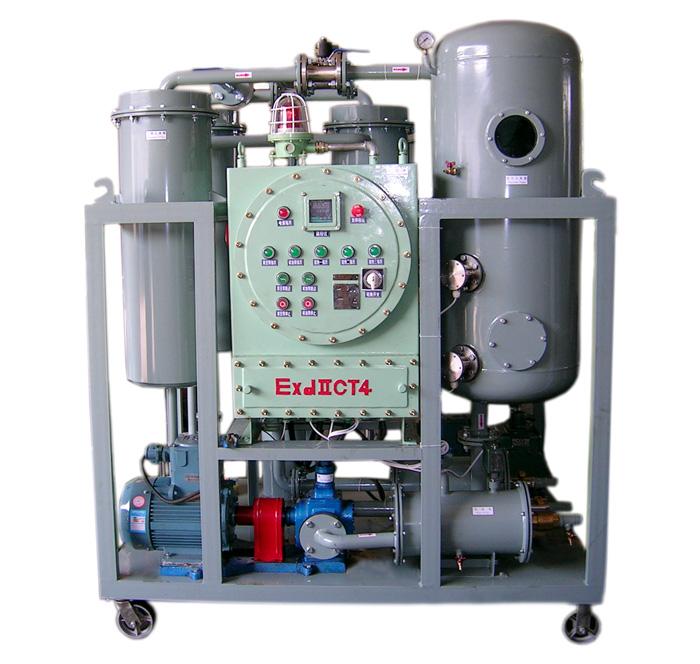

JS-TY Series Vacuum Turbine Oil Purifier is a perfect turbine oil purifier for live line work; also It can purify low viscosity hydraulic oil and lube oil.

FEATURES:

1.Double primary filters Structure, three-stage filtration system (primary filter, seconday filter, fine filter) with gradually incresing filtration Precision, removing impurities as much as possible.

2.Large area Three-dimensional flash distillation technology, removing gas and water efficiently.

3.Strong ability of demulsification, separating oil and water efficiently.

4.Humanized design, All necessary control buttons and indicator lights are equipped on the control Panel which provides easy control for operation and supervision.

5.High-efficiency Electric heating system, controlled by automatic constant temperature Controller, heating the oil uniformity, avoiding oil deterioration, less power Consumption.

6.Equipped with double-infrared Oil level controller: during the running of the machine, it will control the Oil pump start and stop automatically, ensuring the balance between oil inlet and outlet.

7.Equipped with Pressure controller: during the running of the machine, if the working pressure Exceed the setting value, the machine will stop running automatically.

8.Equipped with Emergency stop switch:, If there has any emergency situation, the machine will stop running Immediately.

9.Interlocking Protection mechanism, connecting vacuum pump and heater, avoiding blank Pumping, blank heating, safe and reliable.
