| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | huaxia master |
| Power Type: | Diesel |
| Type: | Rotary Drilling Rig |
| Condition: | New |
| Weight: | 460KG |
| Power(W): | 22000 |
| Usage: | Coal |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introductio
.

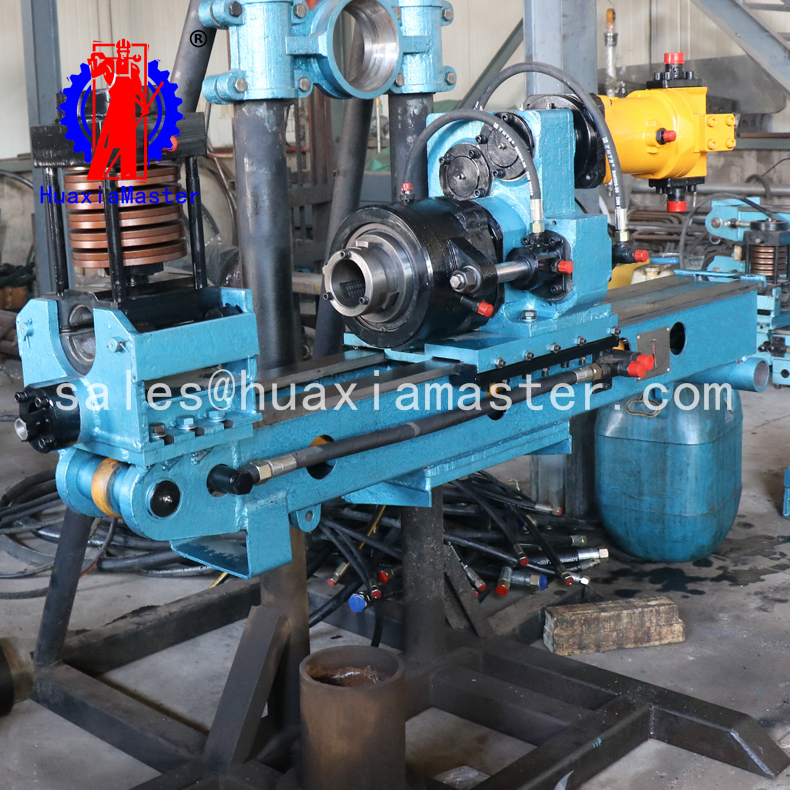

hydraulic exploration drilling rig for metal mine has the function of linkage. It is simple and safe to control the rig through the operation platform. the spindle of the gyration adopts the through hole structure. the length of the drill pipe is not restricted by the drilling rig, and it can also be applied to diamond wire-line coring drilling.
2. COmponents of KY-150HydraulicExplorationDrilling rig for metal mine
the KY-150 hydraulic exploration drilling rig for metal mine adopts the structure of full hydraulic power head, and consists of three parts: main engine, pump station and operating floor.
3. SPecifications of KY-150HydraulicExplorationDrilling rig for metal mine
Borehole diameter |
36.5mm/46.5mm |
Drilling depth |
|
Borehole angle |
0-360 |
Spindle speed |
400-1400 r/min |
87-300 n.M | |
Rated pull force |
30 kn |
Rated pull speed |
> 0.3 m/s |
Oil supply mode |
Double gear pump |
Hydraulic oil mode |
|
Motor model |
Manual variable motor A6V55MA |
Motor specifications |
|
Equipment weight |
Main engine166kg/backbone 40kg/operation floor 86kg/power car 210kg |
