| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | HUAXIA MASTER |
| Power Type: | Electric |
| Type: | Rotary Drilling Rig |
| Condition: | New |
Quick Details
Specifications
the following example is f
or you reference.
1.Brief Introduction:
2.Techincal parameters:
1. Brief introductions of
gasoline engine sampling drilling rig is used for geological industrial and civil buildings, bridges, railway, highway, hydro power industry survey, geophysical exploration, advanced drilling and grouting hole drilling.

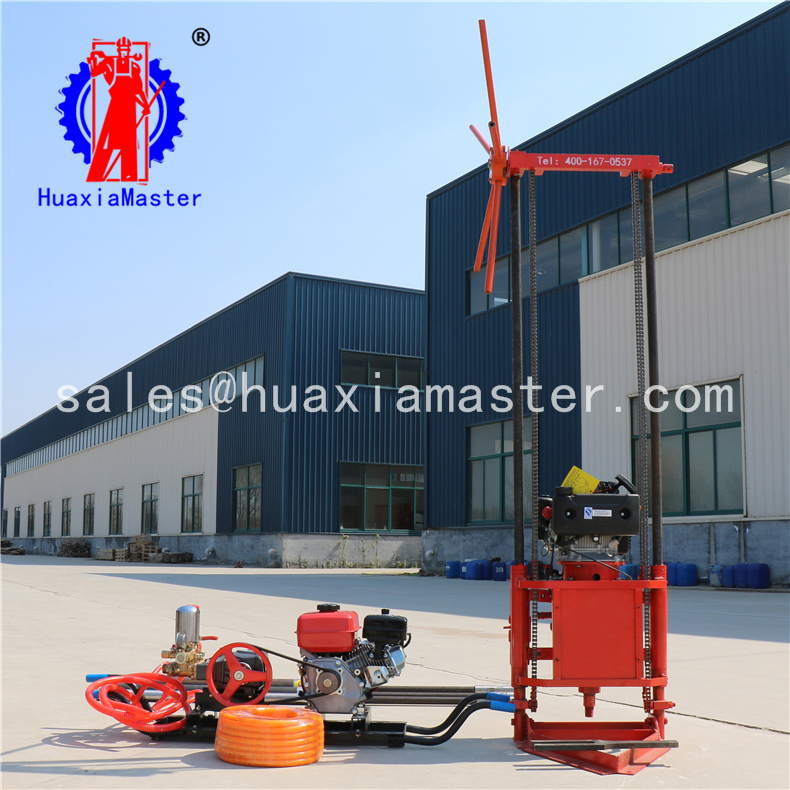

2. TEchnical parameters of QZ-2C gasoline engine sampling drilling rig
QZ-2C gasoline engine sampling drilling rig | ||
Bottom hole diameter (mm) |
32-91 | |
Drilling depth(m) |
Soil layer 91:10-15m 91:5-10m Lithosphere75:10-15m Lithosphere60:15-20m Lithosphere46:20-30m | |
Drilling pipe diameter (mm) |
30 | |
Horse power(HP) |
6(4.5kw) | |
Displacement(cc) |
224 | |
Dimension(l*w*h) |
600*450*1900 | |
Weight(kg) |
95 | |
3. Configuration list of QZ-2CGasoline engine sampling drilling rig
Item |
Parameter |
Unit |
Quantity |
GAsoline engine sampling drilling rig |
set |
1 | |
Drilling pipe |
30*1500 |
PC |
6 |
Drilling pipe |
30*800 |
PC |
14 |
38 |
PC |
20 | |
Reducing nipple |
58/38 |
PC |
2 |
Core barrel |
58*800 |
PC |
1 |
Core barrel |
58*1500 |
PC |
1 |
60 |
PC |
1 | |
Diamond bit |
60 |
PC |
1 |
Reducing nipple |
73/38 |
PC |
2 |
Core barrel |
73*800 |
PC |
1 |
Alloy bit |
75 |
PC |
1 |
Diamond bit |
75 |
PC |
1 |
Three-wing bit |
75 |
PC |
1 |
Safety clamp |
|
PC |
1 |
Water seal |
Y 30*50*10 |
PC |
4 |
Oil seal |
30*50*10 |
PC |
1 |
Pipe wrench |
18 |
PC |
2 |
Monkey wrench |
|
PC |
1 |
Shaft snap ring clamp |
|
PC |
1 |
Hole snap ring clamp |
|
PC |
1 |
Clamp |
|
PC |
1 |
Cross screwdriver |
|
PC |
1 |
Hex wrench |
|
PC |
1 |
Control wheel |
|
PC |
1 |
If you need a wooden base, a high pressure pump, and a high pressure water pipe, please specify.
3.Performance features:
