the following example is for you reference.

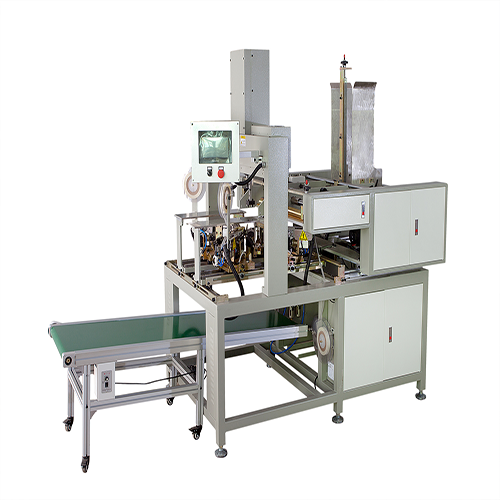

1.Brief Introduction:



this machine is dedicated to one-time Automatic angle pasting on four sides It is mainly applied to the box making, Such as gift boxes, jewelry boxes, clothing box, shoes box, etc. the full servo System and man-machine interface in the machine determine the equipment Precision, height, the installation of mold and humanization design. with easy operation, High output, and high efficiency,  it can Save a lot of human resources and improve the production efficiency as well as the quality of the product for the box making enterprises.

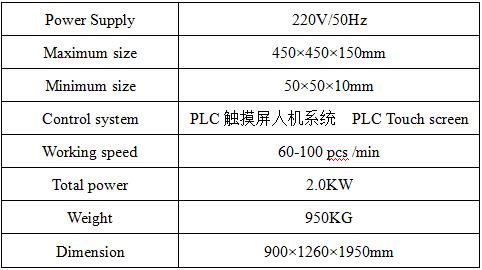

2.Techincal parameters:





3.Performance features:

1. Adopting man-machine interface system, which is easy to learn, easy to understand and easy to operate;

2. Full servo drive control system and PLC programming ensure the accuracy and performance of the product;

3. the production efficiency of the machine is 3-5 times of the traditional manual performance

4. Adopting feeder system to effectively improve the production output;

5. Adopting the conveyor belt to collect the product, which only need one person to complete all operations and can effectively save labor.

6. Adopting imported bearings and electronic components; improve the quality of the machine and  increase the service life;

7. Adopting three-stage split-type installation (paper feeding system, main machine, product collect system), easy to move;

8. Transparent tape and kraft paper tape are available, which provide you a variety of options.
