Product Description:

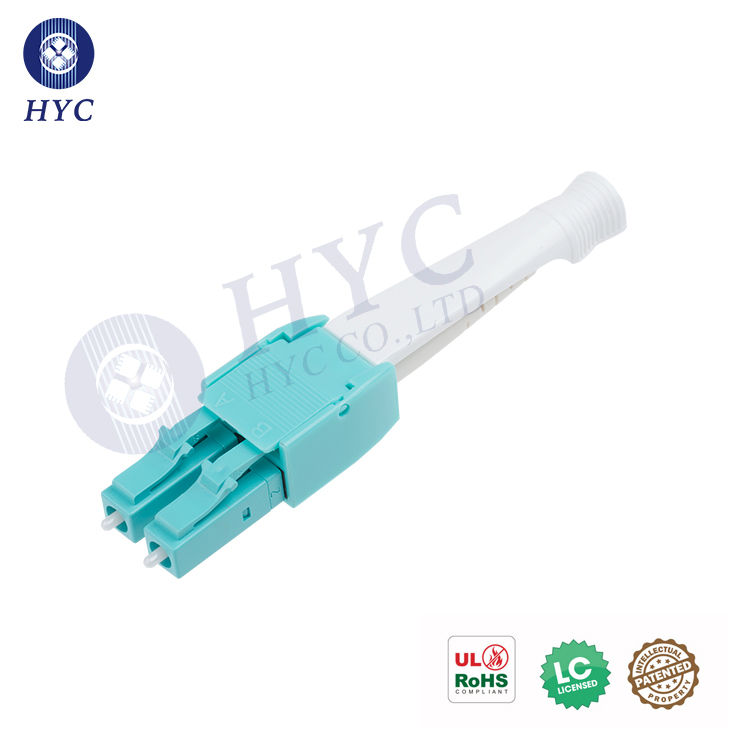

A Uniboot connector that come with a Push-Pull tab, which can be used in a high density environment. Comparing to the conventional duplex connector, the design is more compact, as well as just one cable was used, which help to improve the hot air flow in a high density and a crowed environment. HYC CO., LTD did an unique and a patented design to reach in a highest density in the industry.

Features:

the push-pull design ensure easier release from HD enviroment
Avoid cable twine together
PC/APC and various color available
Applied to 1.2~2.5mm cable
Customized logo is optional
IEC61754-20 and GR-326-Core complaint
RoHS/REACH&UL94-V0 inflammability complaint


Applications:

Telecom network
Ethernet network
Optical communication equipment

Specifications:

Items	Single mode	Multi mode
Insertion Loss	0.3dB	0.3dB
Return Loss	50dB(UPC);60dB(APC)	30dB
Ceramic ferrule spec	125.5um concentricity deviations:<1um	127um concentricity deviations:<3um
Insert-pull test	500 times <0.3dB
Operation temperature	-40~+85
Suitable fiber	PC/APC(9/125um)	PC(50/125um,62.5/125um)
