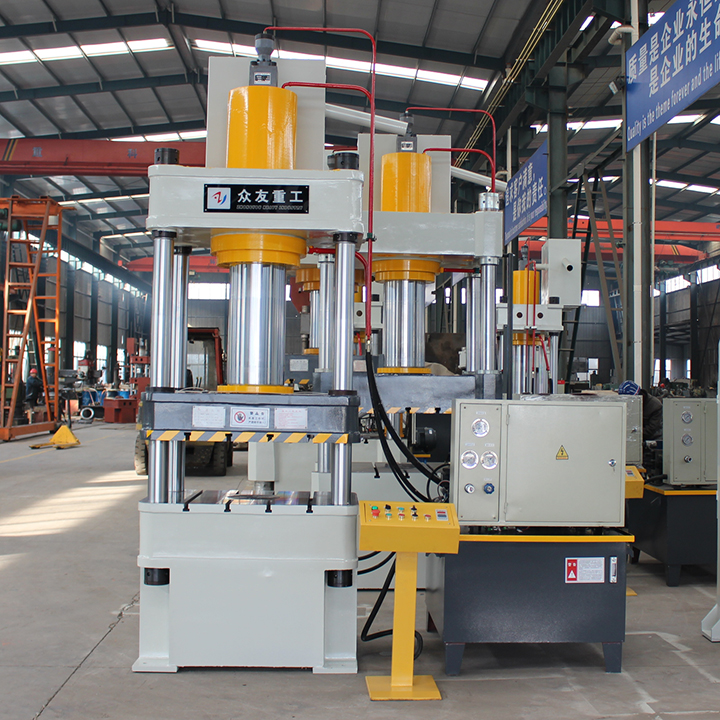

Zhongyou 4 post 200t 250 ton hydraulic press machine for sale





the working pressure, pressing speed and stroke of the 4 post 200t 250 ton hydraulic press machine produced by our company can be adjusted freely according to the user's requirements within the specified range, and the so-called adjustable stroke and adjustable pressure.







Parameter name	Unit	YQ32-200B	YQ32-250
Nominal force	KN	2000	2500
Hydraulic system maximum pressure	Mpa	25	25
Max opening height of the slide	mm	1200	1200
Max stroke of the slide	mm	700	700
Workbench effective area	mm	1000900	800800
Ejector cylinder nominal force	KN	400	400
the stroke of the eject	mm	220	220
Slider speed	Down mm/s	100	100
	Press mm/s	510	510
	Return mm/s	90	90







the tonnage of the 200t 250 ton hydraulic press machine is not high. the pressure-cylinder cylinder of the machine can be used as a buffer device. 250 ton hydraulic press machine can also be used for blanking and punching.

the working pressure of each chamber can be adjusted separately under the pressure set by the system.

in order to ensure the quality of the stretching and crimping, a pressure holding system has been added.





Can be customized according to customer requirements, such as hydraulic machine table size, stroke length, opening height, working pressure, running speed, automatic loading and unloading, automatic / semi-automatic. Tailor-made high-quality hydraulic machine equipment to meet the needs of customers' production processes.
