Brand Name: | Dechuang |
---|---|
Accuracy: | 5mm |
Material: | aluminum/PTFE/stainless steel |
Measuring range: | 30meter |
display color: | Blue/special custom |
Model Number: | DCRD1000A5 |
Place of Origin: | China (Mainland) |
Application: | Solid particles, dust, reservoir, river, water level monitoring |
Process connection: | Screw thread, Flange |
Anti-explosion/safety grade: | ExiaII CT6Ga/Exd ia II CT6 Gb / IP67 |
Signal output: | 4...20mA/HART(Two-wire/Four) RS485/Mod bus |
Quick Details
Specifications

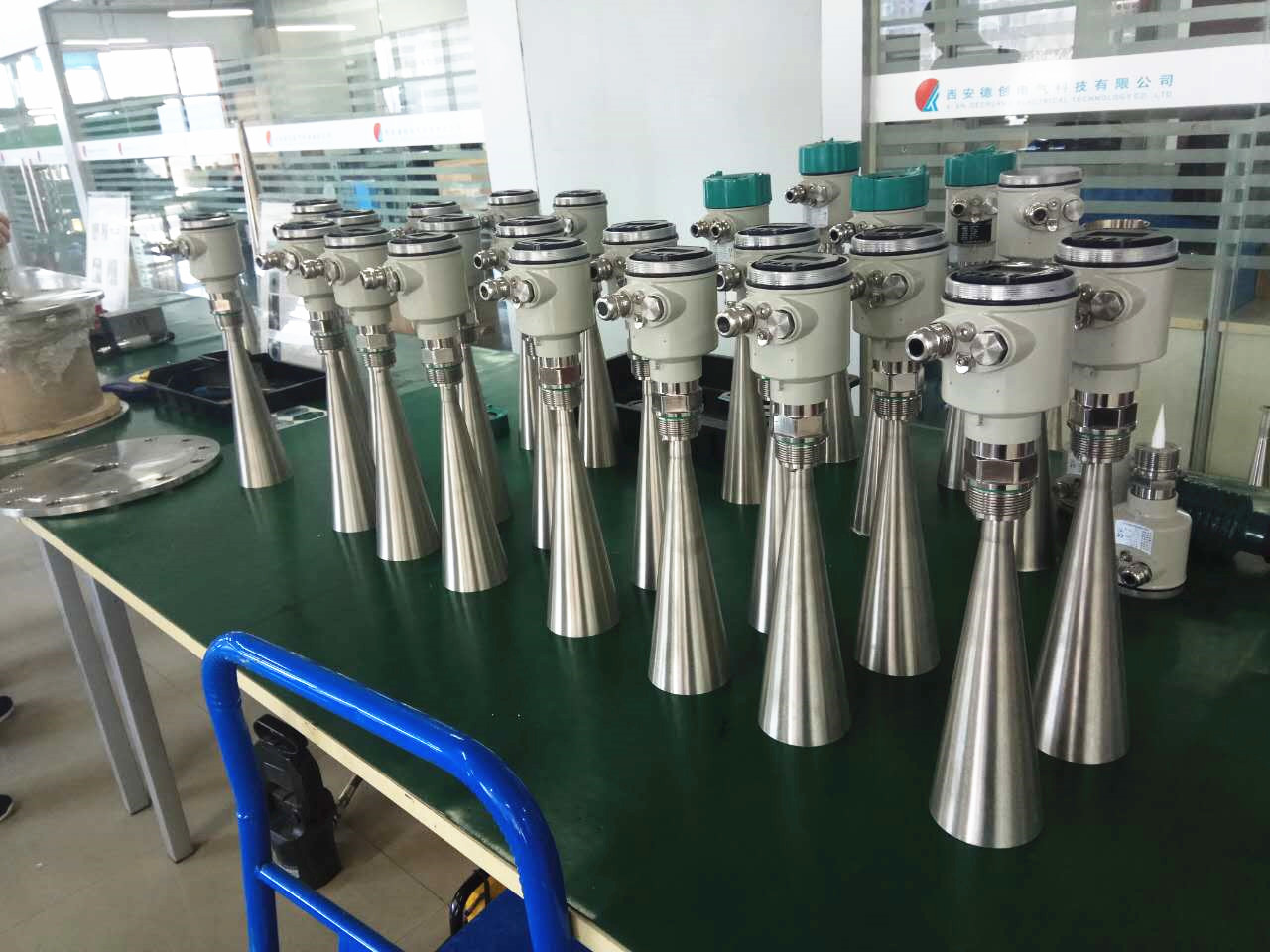

Product View
Wholesaler 26ghz pulse radar water tank level controller radar level sensor
1.Working principle
DCRD1000A Series Radar Level sensor is high-frequency level measuring instruments with the maximum measuring distance up to 70 meters. the antenna is further optimized, and the new-type microprocessor can perform higher rate of signal analysis and processing, making the instrument available for complex measurement conditions, such as reactors, solid silos.
Radar level antenna emits narrow microwave pulses that transmitted down by the antenna. the microwave comes into contact with the measured medium surface then reflected back and receiving by the antenna system. The signal is transmitted to electronic circuit and partly convert to level signals (as the microwave featured with high propagation speed, it's almost instantaneous for the electromagnetic waves to reach the target and return to the receiver)
2. Features of Wholesaler 26ghz pulse radar water tank level controller radar level sensor
Small antenna size, easy to install; non-contact radar, no wear, no pollution.
Almost free from corrosion, foam impact; hardly affected by the change of the temperature, pressure and water vapor in the atmosphere.
Severe dust environment is not likely to affect the work of the high-frequency level transmitter.
Shorter wavelength can achieve better reflection for the inclined solid surface.
the small field angle and energy concentration, enhanced echo capabilities, and beneficial to avoid interference.
Minimized measuring blind spot can gain better result of small tank measurement.
High SNR, even in the case of fluctuations can result in better performance.
High frequency, the best choice to measure solids and low dielectric media.
3. Wholesaler 26ghz pulse radar water tank level controller radar level sensor Technical Parameters
Application |
Solid particles, dust,rEservoir, river, water level monitoring |
Measuring range |
30 meter |
Process connection |
Screw thread, Flange |
Medium Temperature |
-40250C |
Process pressure |
Atmospheric |
Accuracy |
10mm |
Frequency range |
26GHz |
Anti-explosion/safety grade |
Exia II CT6 Ga/Exd ia II CT6 GB /IP67 |
Signal output |
4~20mA/HART(Two-wire/Four-wire) RS485/Modbus |

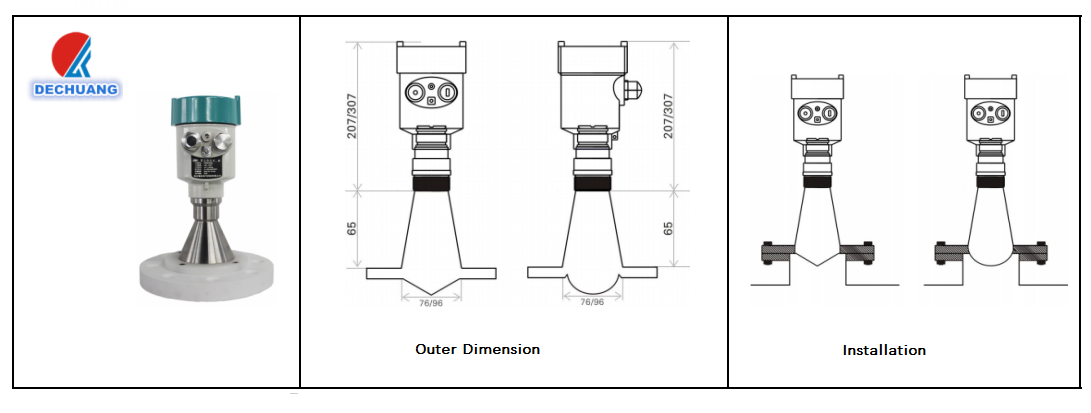

4. Wholesaler 26ghz pulse radar water tank level controller radar level sensor Outer Display
5. Ground penetrating radar solid level instrument paraboloidal antenna radar level transmitter Model selection
Anti-explosion
P Standard (non-Ex)
I Intrinsically Safe (Exia IIC T6 Ga)
D Intrinsic safety+Exd (Exd ia II CT6 GB)
Process connection/ Material
B Flange DN80 / stainless steel 304
C Flange DN100 / stainless steel 304
D Flange DN125 / stainless steel 304
E Flange DN150 / stainless steel 304
BF Flange DN80 / PTFE
CF Flange DN100 / PTFE
DF Flange DN125 / PTFE
EF Flange DN150 / PTFE
Y Special custom
Antenna Type/ Material
P1 Planar antenna76mm / stainless steel 316L+PTFE
P2 Planar antenna76mm / stainless steel 316L+PTFE
T1 Lens antenna76mm / stainless steel 316L+PTFE
T2 Lens antenna76mm / stainless steel 316L+PTFE
Y Special custom
Seal/ process temperature
V Viton / (- 40 ~ 120)C
K Kalrez / (- 40 ~ 250)C
Electronics unit
2 (4 ~ 20) mA / 24V DC / HART two-wire system
3 (4 ~ 20) mA / 24V DC / HART four-wire system
4 (4 ~ 20) mA / (85~ 265) V AC / HART four-wire system
5 RS485/Modbus/( 6~26)V DC
Housing /SAfety grade
L Aluminum / IP67
G Aluminum / IP67 Double chamber
Cable entry
M M20xl. 5
N 1/2 NPT
Live display/ programming
A with
X without
SpecialCustom
Y Special custom
