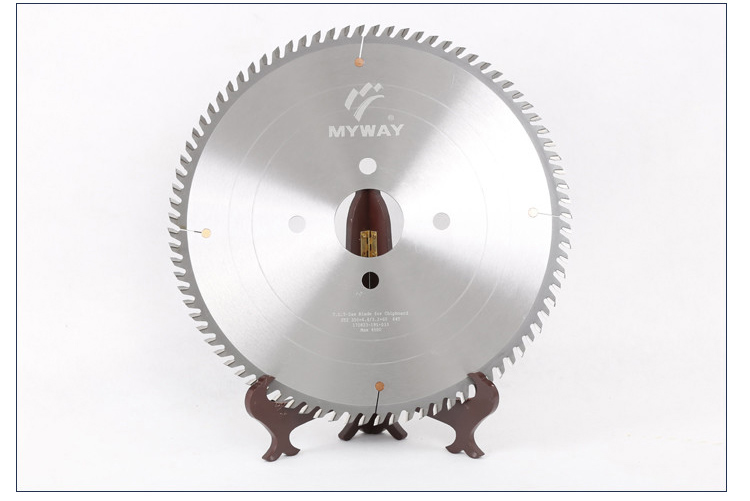

PCD composite diamond saw blade has become the hardest material cutting tool, and has become the leader of woodworking dry cutting tools.

1. Its superhard performance and durable wear resistance are the nemesis of woodworking materials.

2.Diamond saw blade, Vickers hardness 10000HV, strong acid resistance, easy to passivate the cutting edge, good quality of processed wood, good wear resistance, more wear resistance than hard alloy, for particleboard, MDF, wooden floor.

3.past the cutting operation time of the panel and other cutting operations can reach 300~400 hours, and the maximum use time can reach 4000 hours/piece.

4.Compared with the cemented carbide insert, the service life is longer, and the processing efficiency and processing precision are the most.

High-quality demand is a smart choice for woodworking operations.

Suitable for cutting material:Aluminum profile,solid aluminum or plastic material sawing.

Application:Transverse,side angle cutting.

Equipment:Double end miter saw,heavy CNC saw,double -headed cutting trace lubrication equipment.

Saw blade speed:2800r/min.



Product	Outer diameter	Kerf	Plate thickness	Inner diameter	Number of teeth
ID	D(mm)	B(mm)	b(mm)	d(mm)	Z
001	300	3.2	2.2	25.4/30	60
002	300	3.2	2.2	25.4/30	72
003	300	3.2	2.2	25.4/30	96
004	350	3.5	2.5	30	72
005	350	3.5	2.5	30	84
006	350	3.5	2.5	30	96
007	350	4.4	2.5	60/75	72
008	350	4.4	3.2	60/75	84
009	350	4.4	3.2	60/75	96
010	380	4.4	3.2	60/75	72
011	380	4.4	3.2	60/75	84
012	380	4.4	3.2	60/75	96
013	400	4.4	3.2	60/75	72
014	400	4.4	3.2	60/75	84
015	400	4.4	3.2	60/75	96
