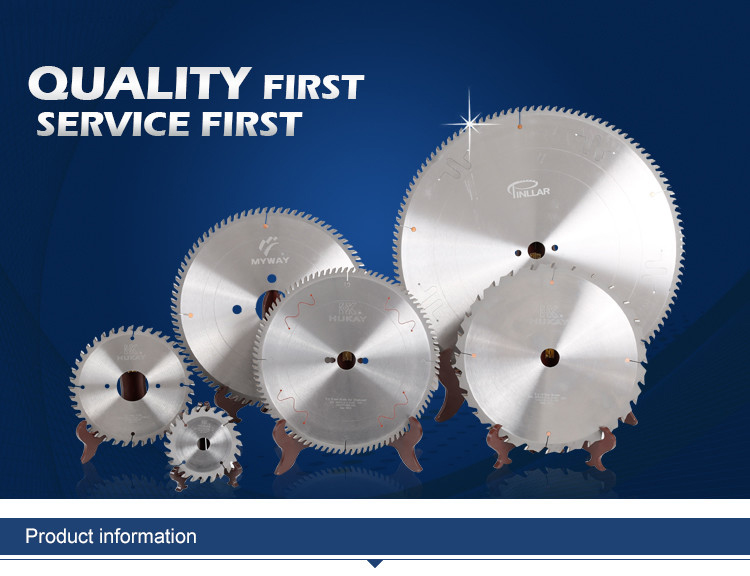

TCT Saw Blade for Cutting Aluminum

the TCT saw blade full name is Tungsten Carbide Tipped blades are suitable for cutting hardwood, softwood, chipboard ashaving board, wood fiber board, joinery panel, composition board, parallel cutting veneer, plank, laminates and plywoodnd other composite materials. Hardened and strengthened to ensure a long life.



Features:

1. Material of Teeth: Micro Grained Tungsten Carbide Tips supplied from the worlds most advanced tungsten manufacturers ;



2. Material of Saw Body: 65Mn or 75Cr1, Ultra-thin, perfectly tensioned steel plates for true run;



3. Expansion Slot: Laser Cut Expansion Slots allow blade to expand and  contact during heated operation;



4. Noise Reduction Slots: Laser Cut Resin filled noise reduction slots on low noise blades;



5.  Precision Tensioned Saw Bodies  ensure distorsion free cutting throughout the life of the blades.



6 Tooth Model: Left & Right side bevel teeth, alternate top bevel teeth, trapeziform-flat teeth, flat teeth



Product	Outer diameter	Thickness	Inner diameter	Number of teeth
ID	D(mm)	B(mm)	d(mm)	Z
001	160	6.0	32	24
002	160	6.5	32	24
003	160	8.0	32	24
004	200	4.0	32	40
005	200	5.0	32	40
006	200	5.5	32	40
007	200	6.0	32	40
008	250	6.5	32	40
009	250	7.0	32	40
010	250	7.5	32	40
011	250	8.0	32	40
012	250	8.5	32	40
013	250	10.0	32	40
014	250	5.0	32	24
015	250	6.0	32	24
016	250	8.0	32	24
017	250	10.0	32	24
