Product Main

Quick Details

Type: Antique Telephone
Brand Name: Joiwo
feature: Public Vandal Resistant Phone
color: stainless steel
material: 304
Model Number: JWAT123
Place of Origin: China (Mainland)
Installation: wall-mounted
Color: stainless steel qualities+grey
Vandal resistance: yes
Lightening protection: yes
Weight: 2kg
Product Name: joiwo
Warranty: 1 year
Function: auto-dial emergency telephone
Application: public use bank use self-service us

Specifications

Hotline speed dial jail visitor phone-JWAT123
P
PRODUCT DESCRIPTION

OVERVIEW

Product Name: automatic dial telephone
Product Type: JWAT123
Communication system: Switchboard
Defend Grade: IP54
Dimensions: 270 130 60
Material: Stainless steel 304+aluminum alloy
Color: stainless steel qualities + Grey
Electronic sample:


APPLICATION

Suitable for inside prisons, labor camps, drug rehabilitation and other intercom, communication and other places which need monitoring.


FEATURES

1.the phone can be set with auto dialing when off hook.
2.the phone can form an independent telephone communication system with program-controlled switches and couplers.
3.the phone can be connected directly to the telecommunications network.
4.after the composition of the call system, each phone is an independent station. the malfunction of any phone doesn't affect the whole system work.
5. after the composition of the call system, the product has an automatic gain function, and the voice does not vary with distance or telephone quantity.
6.Telephone circuits within the integrated circuit using internationally accepted double-sided, with hair the exact number, call clarity, job stability, etc.
7.Stainless steel housing, high mechanical strength, strong impact.
8.Key parts of the handset and the hooks are both produced by our own company; Quality control strictly; after-sale reaction fast.


TECHNICAL PARAMETERS

Signal voltage

DC48V

Standby operating current

1mA

Frequency response

250~3000 Hz

Ringing level

80dB

Defend Grade

IP65

Corrosion grade

WF2

Ambient temperature

-40~+60

Atmospheric pressure

80~110KPa

Relative humidity

95%

Lead hole

3-M20

Total Weight

2kg

Installation

Embedded /Wall mounted


INSTRUCTIONS

1. the caller take off-hook, automatically dial programmed number the callee picks up the handset, both sides under normal conversation .

2. at the end of the call, hang back the handset.

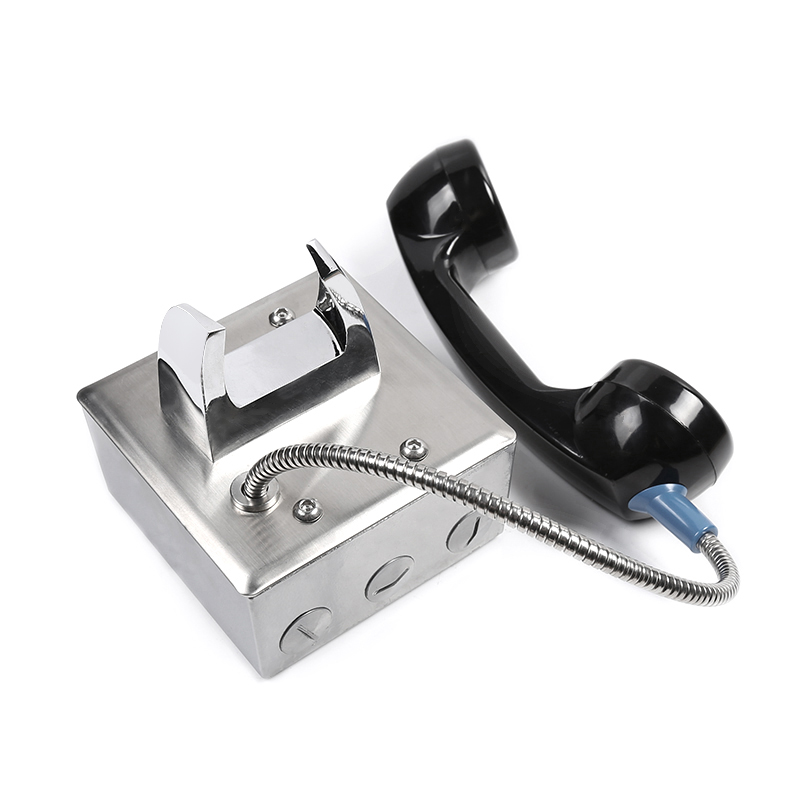

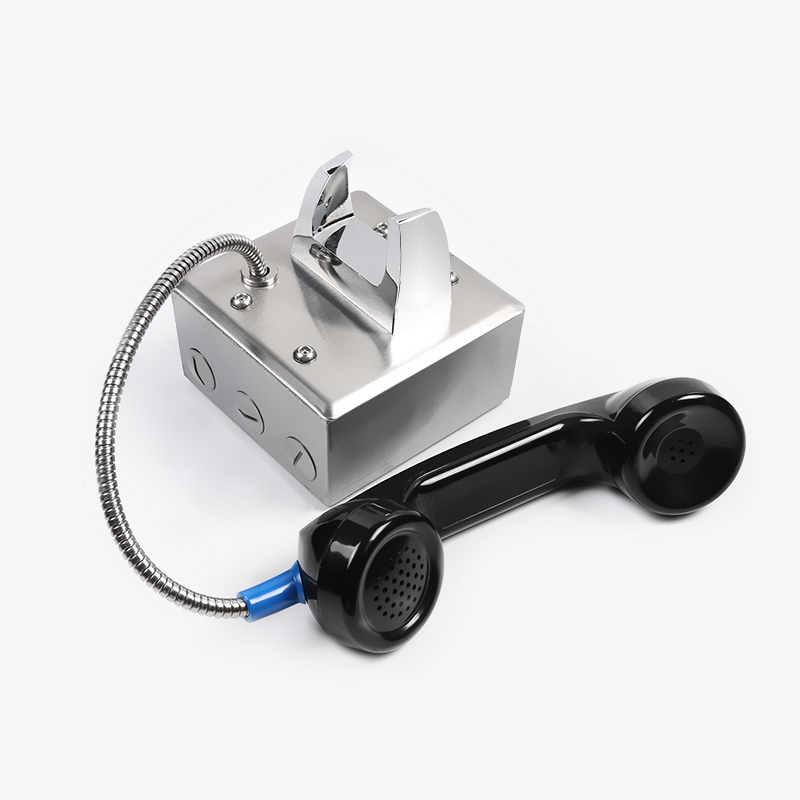

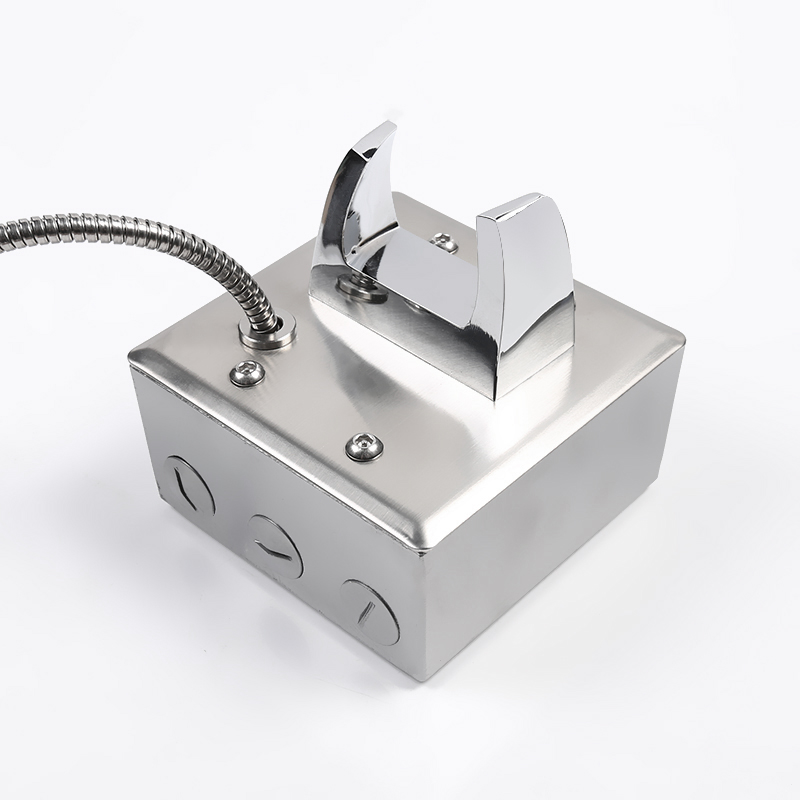

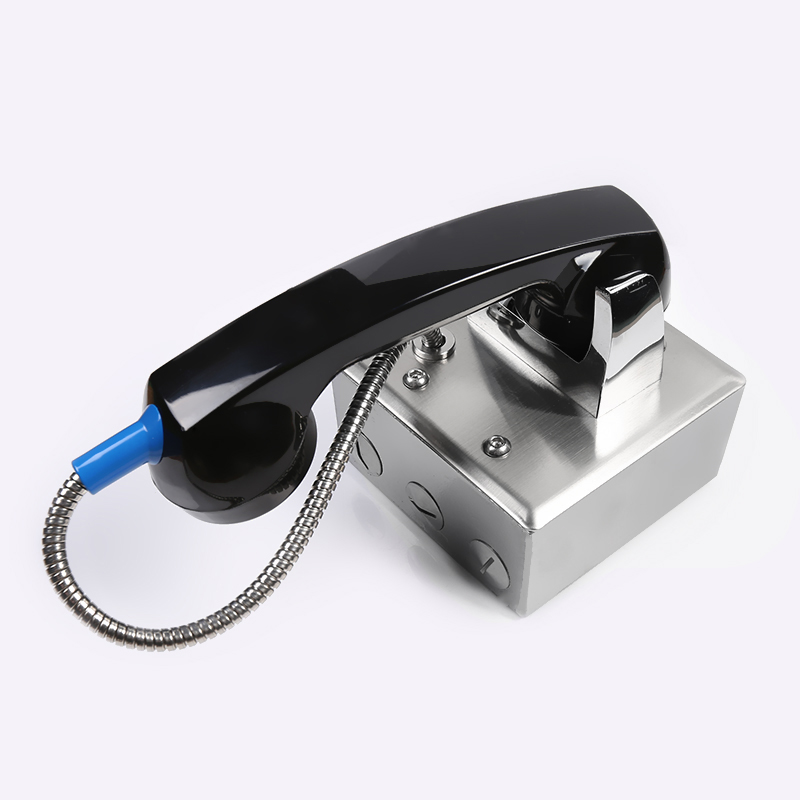

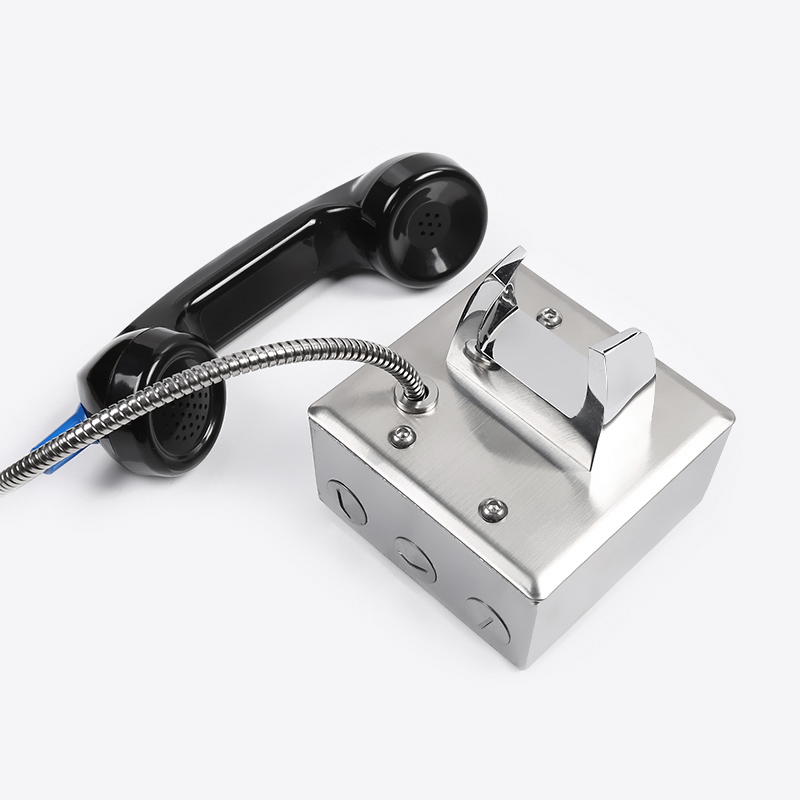

PRODUCT PICTURES

hotline speed dial jail visitor phoneJWAT123hotline speed dial jail visitor phoneJWAT123hotline speed dial jail visitor phoneJWAT123hotline speed dial jail visitor phoneJWAT123hotline speed dial jail visitor phoneJWAT123
