Product Main

Quick Details

Type: Antique Telephone
Brand Name: Joiwo
feature: Public Vandal Resistant Phone
color: stainless steel
material: 304
Model Number: JWAT135
Place of Origin: China (Mainland)
installation: wall-mounted
color: stainless steel qualities
Vandal resistance: yes
Lightening protection: yes
material: Stainless steel 304
weight: 3 kg
Product Name: joiwo
Warranty: 1 year
Function: automatic dial
Application: prison

Specifications

Wall Mounted Telephone hotline Jail Telephone-JWAT135
P
PRODUCT DESCRIPTION

OVERVIEW

Category: Jail Phone
Model: JWAT135
Product Name: Public Vandal Resistant Phone
Product Model: JWAT135
Protection Class: IP54
Dimensions: 110 x 165 x 45
Material: 304
Color: Stainless Steel
Communication Mode: Analogue


APPLICATION

Suitable for inside  prisons, labor camps, drug rehabilitation and other intercom,  communication and other places which need monitoring.


FEATURES

1. the phone can be set with auto dialing when off hook.

2. the phone can form an independent telephone communication system with program-controlled switches and couplers.

3. the phone can be connected directly to the telecommunications network.

4. after the composition of the call  system, each phone is an independent station. the malfunction of any  phone doesn't affect the whole system work.

5. after the composition of the call  system, the product has an automatic gain function, and the voice does  not vary with distance or telephone quantity.

6.Telephone circuits within the  integrated circuit using internationally accepted double-sided, with  hair the exact number, call clarity, job stability, etc.

7. Stainless steel housing, high mechanical strength, strong impact.

8. Key parts of the handset and the  hooks are both produced by our own company; Quality control strictly;  after-sale reaction fast.





TECHNICAL PARAMETERS

Signal voltage

DC48V

Standby operating current

1mA

Frequency response

250~3000 Hz

Ringing level

80dB

Protection class

IP54

Corrosion grade

WF2

Ambient temperature

-40~+60

Atmospheric pressure

80~110KPa

Relative humidity

95%

Lead hole

1-15

Total Weight

3kg

Installation

Wall-mounted


INSTRUCTIONS

1.the caller take off-hook, automatically dial programmed number the callee picks up the handset, both sides under normal conversation .

2. at the end of the call, hang back the handset.

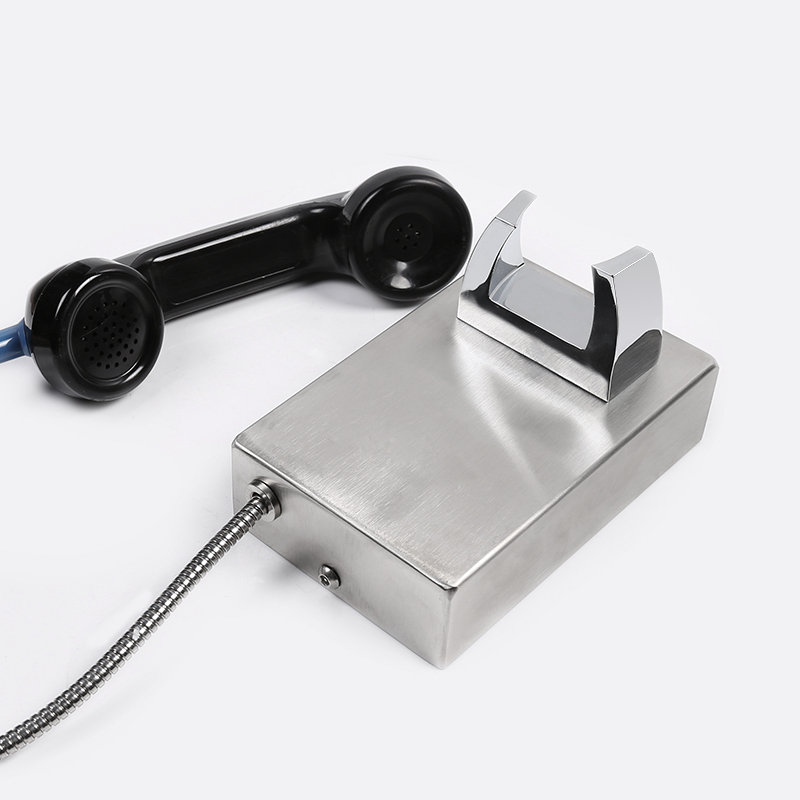

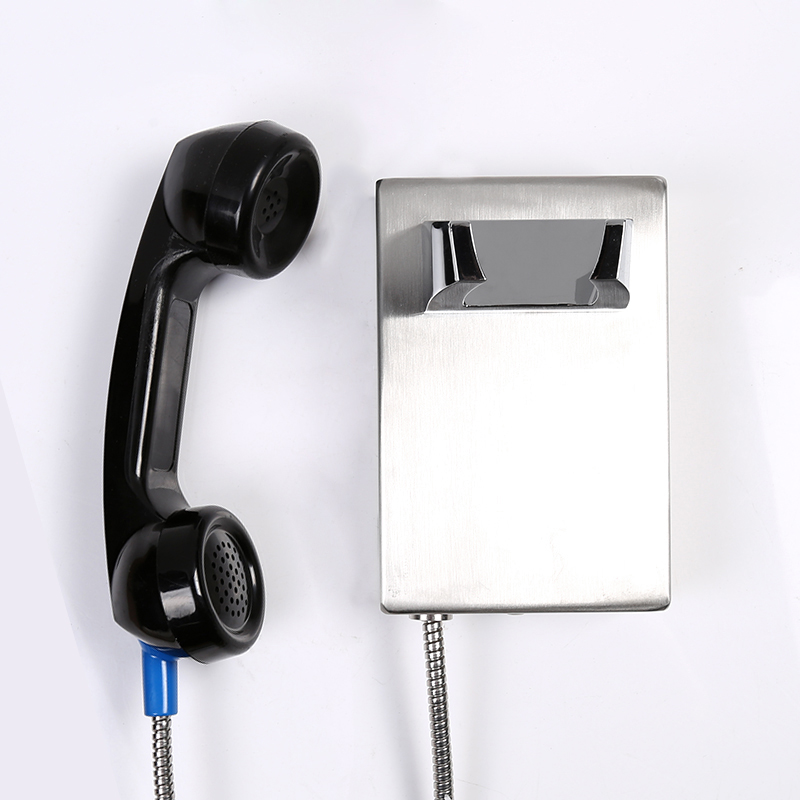

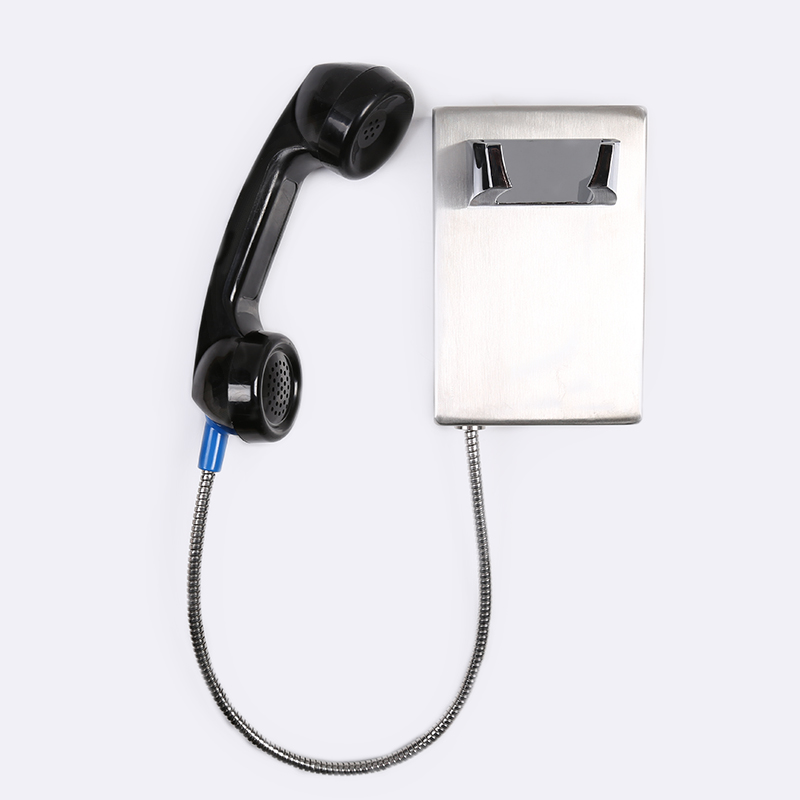

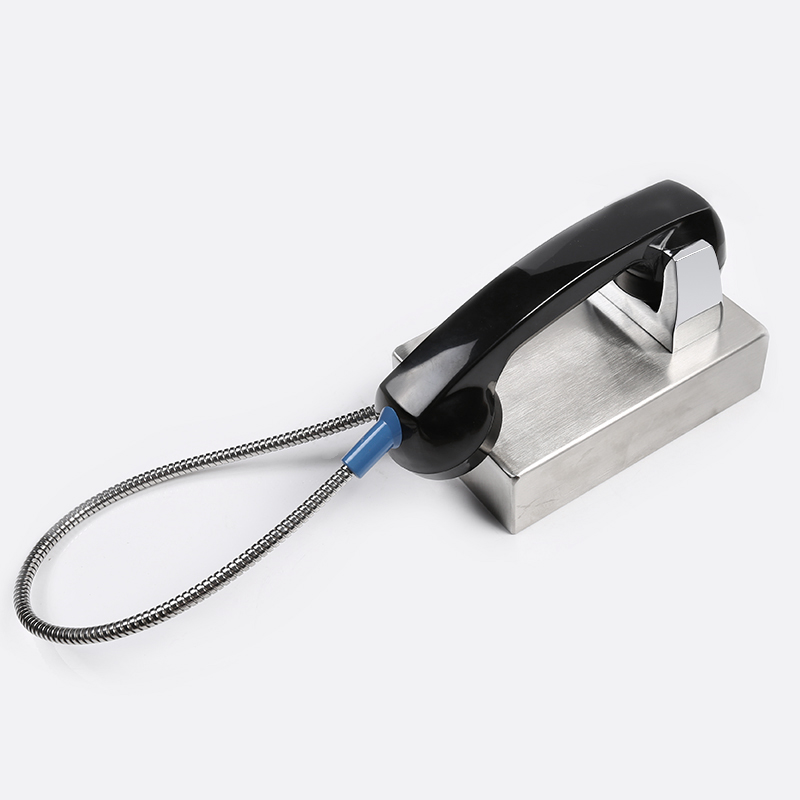

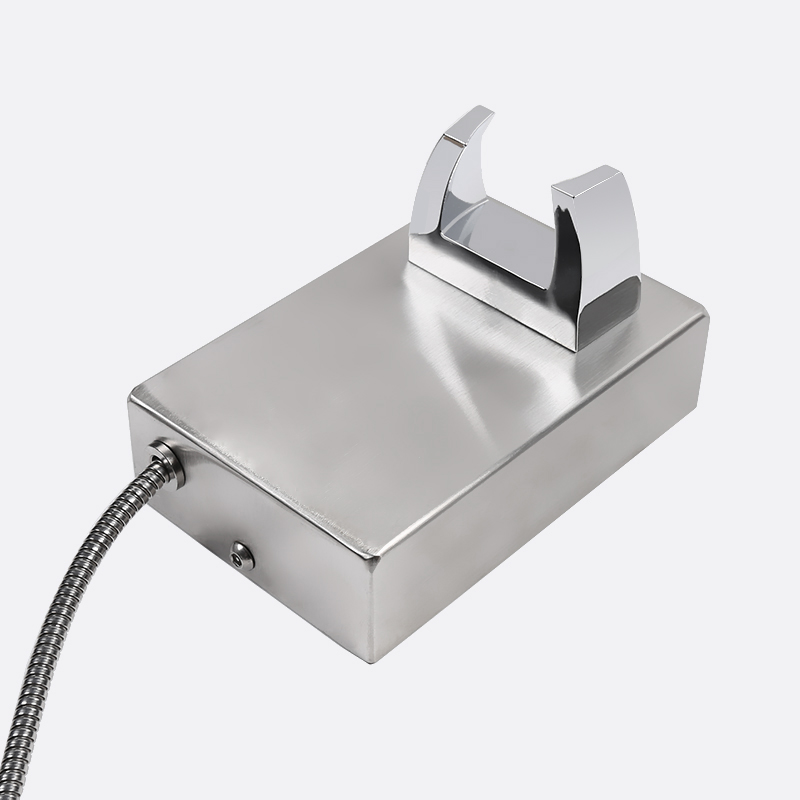

PRODUCT PICTURES
Wall Mounted Telephone hotline Jail TelephoneJWAT135Wall Mounted Telephone hotline Jail TelephoneJWAT135Wall Mounted Telephone hotline Jail TelephoneJWAT135Wall Mounted Telephone hotline Jail TelephoneJWAT135Wall Mounted Telephone hotline Jail TelephoneJWAT135
