| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | HuaxiaMaster |
| Power Type: | Gasoline |
| Type: | Core Drilling Rig |
| Condition: | New |
| Warranty: | 6months |
| Certification: | iso9001 |
| Weight: | 90KG |
| Dimension(L*W*H): | 600*450*1900 mm |
| Power(W): | 3.5KW |
| Usage: | Coal |
| Model Number: | QZ-2B |
| Place of Origin: | China (Mainland) |
| Product name: | gasoline engine sampling drilling rig |
| Application: | geological industrial and civil buildings |
| Feature: | small volume, light weight, two gears, easy to move |
Quick Details
Specifications

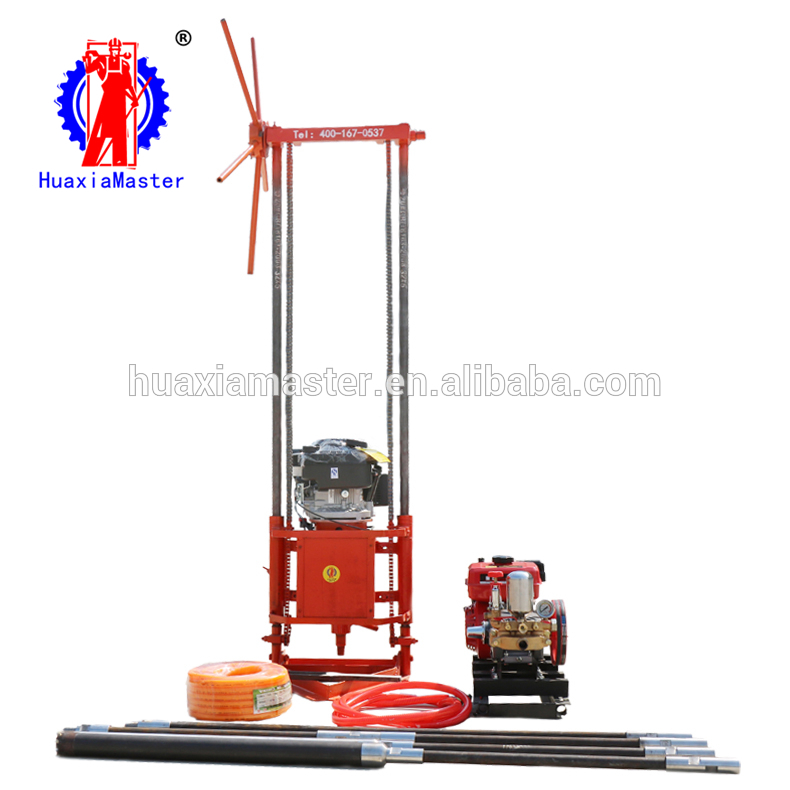

1.Brief introduction of QZ-2B gasoline engine SamplingDrilling rig
QZ-2B gasoline engine sampling drilling rig is produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole and small household wells check out.
ing rig has the following features:
2. TEchnical parameters of QZ-2BIng rig
Ing rig | ||
Bottom hole diameter (mm) |
32-91 | |
Drilling depth(m) |
Soil 91:10-15m Stone91:5-10m Stone75:10-15m Stone60:15-20m Stone46:20-25m | |
Drilling pipe (mm) |
28 | |
Rotating speed(r/min) |
200-570 | |
Torque(n.M) |
110 | |
House power(HP) |
5 (3.5kw) | |
Displacement(cc) |
196 | |
Dimension(l*w*h) |
600*450*1900 | |
Weight(kg) |
90 | |
3.COnfiguration list of QZ-2BIng rig
Item |
Parameter |
Unit |
Quantity |
Ing rig |
set |
1 | |
Drilling pipe |
28*1500 |
PC |
6 |
Drilling pipe |
28*800 |
PC |
8 |
35 |
PC |
14 | |
Reducing nipple |
45/35 |
PC |
1 |
Core barrel |
45*800 |
PC |
1 |
Alloy bit |
46 |
PC |
1 |
Reducing nipple |
58/35 |
PC |
1 |
Core barrel |
58*800 |
PC |
1 |
Alloy bit |
60 |
PC |
1 |
Three-wing bit |
60 |
PC |
1 |
Safety clamp |
|
hold |
1 |
Water seal |
30*50*10 |
PC |
4 |
Oil seal |
30*50*10 |
|
|
Oil seal |
17*50*10 |
|
|
Control wheel |
|
PC |
1 |
If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
