| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | HuaxiaMaster |
| Power Type: | Diesel |
| Type: | Core Drilling Rig |
| Condition: | New |
| Warranty: | 6months |
| Certification: | iso9001 |
| Weight: | 165KG |
| Dimension(L*W*H): | 680*1200*3800 mm |
| Power(W): | 8HP |
| Usage: | Coal |
| Model Number: | QZ-3 |
| Place of Origin: | China (Mainland) |
| Application: | field investigation and construction |
| Drilling depth: | 40-50M |
Quick Details
Specifications
1.BRief introductions of QZ-3dIesel engine sampling drilling rig

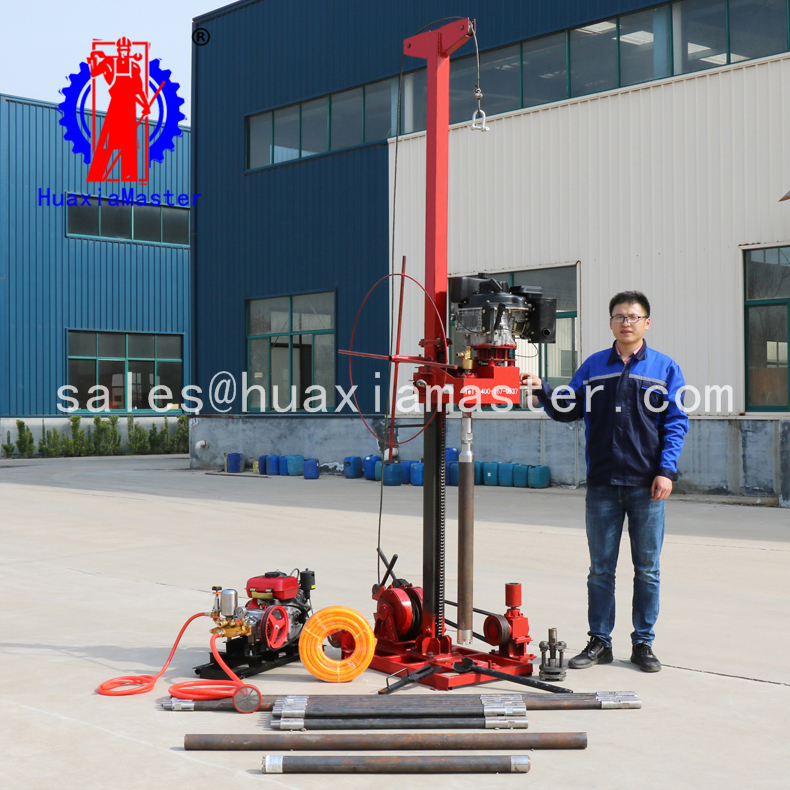

the QZ-3 diesel engine sampling drilling rig is independently developed by Shandong Master Machinery Group Co.,Ltd., which is a portable multi-purpose drilling rig. the diesel engine sampling drilling rig is equipped with a hoist, which is more convenient for geological drilling and lifting. It can do standard drilling hole, earth sampling and cone penetration with the heavy hammer.
the diesel engine sampling drilling rig uses diesel power, and it is more convenient to purchase oil.
2. Technical parameters of QZ-3dIesel engine sampling drilling rig
Borehole diameter (mm) |
46-110 |
Drilling depth(m) |
Soil Layer110:15-20m Lithosphere91:20-25m Lithosphere75:25-30m Lithosphere60:30-40m Lithosphere46:40-50m |
diameter (mm) |
30 |
Torque(n.M) |
180 |
Dimension(l*w*h) |
680*1200*3800(highly customizable) |
Weight(kg) |
165 |
3.Configuration List of QZ-3 dIesel engine sampling drilling rig
Item |
Specifications |
Unit |
Quantity |
Remarks |
Base |
|
PC |
1 |
|
Winding engine |
PC |
1 | ||
Drilling tower |
PC |
2 | ||
Manual windlass |
PC |
1 | ||
Diesel engine |
PC |
1 | ||
Gear box |
PC |
1 | ||
including joint |
30*1000 |
PC |
15 |
Drill pipe |
Drilling pipe including joint |
30*2000 |
PC |
5 | |
Reducing nipple |
58/38 |
PC |
1 |
60mm core drill tool |
Core barrel |
58*800 |
PC |
1 | |
Core barrel |
58*1500 |
PC |
1 | |
60 |
PC |
1 | ||
Reducing nipple |
73/38 |
PC |
1 |
75mm core drill tool |
Core barrel |
73*800 |
PC |
1 | |
Diamond bit |
75 |
PC |
1 | |
Safety clamp |
|
|
|
Tool |
Pipe wrench |
|
|
| |
Drill rod tong |
|
|
| |
Oil seal |
|
PC |
2 |
Vulnerable parts |
Safety plate |
|
PC |
1 |
If need high pressure pump and high pressure water pipes, please specify.
