| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | HuaxiaMaster |
| Power Type: | Diesel |
| Type: | Core Drilling Rig |
| Condition: | New |
| Warranty: | 6months |
| Certification: | iso9001 |
| Weight: | 198KG |
| Dimension(L*W*H): | 1400*600*1055mm |
| Power(W): | 5.7KW |
| Usage: | Coal |

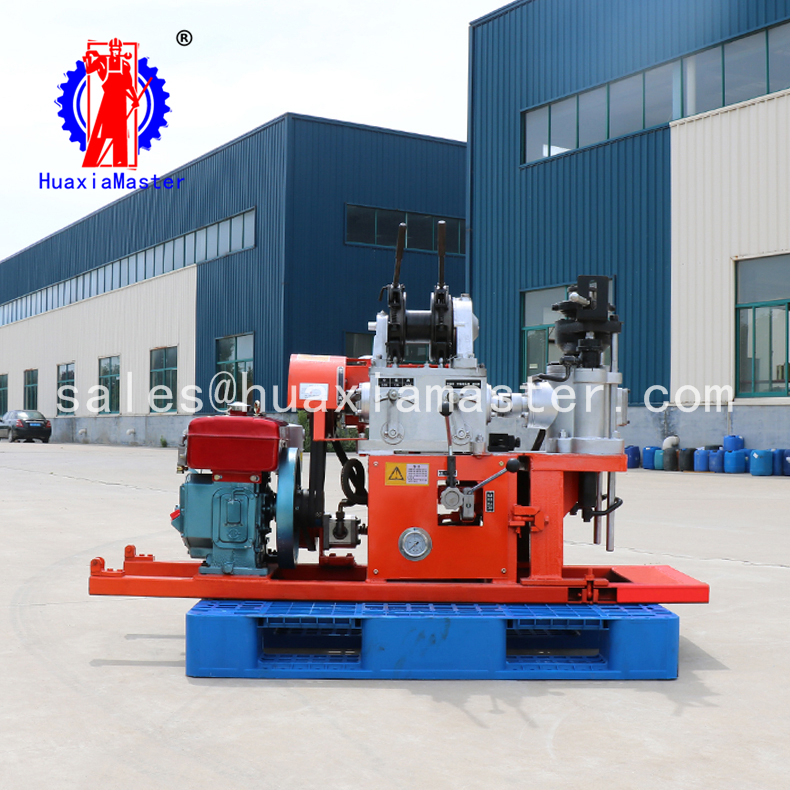

| Model Number: | YQZ-30 |
| Place of Origin: | China (Mainland) |
| Application: | road construction and blasting hole, shallow oil |
| Feature: | Oil pressure automatic feeding mechanism easy to operate |
Quick Details
Specifications
1. BRief introductions of
4kn
Coiling block diameter
90mm
Wire rope diameter
8mm
Maximum length
18m
the band type brake diameter
200mm
the band type brake width
35mm
Vertical shaft
Rotating speed
136/338/578r/min
Stroke
400mm
Maximum pressure
8kn
Lifting power
10kn
Oil pump
Model
YBC20/125
Rated pressure
12.5Mpa
Rate of flow
20ml/r
Rated rotate speed
1500r/min
Power
Diesel engine
R180
Cooling type
Water-cooling
Rated power
5.67KW
Rated rotate speed
2600r/min
4.COnfiguration list of YQZ-30 hydrauliccore drilling rig
Item |
Specification |
Unit |
Quantity |
HYdrauliccore drilling rig |
YQZ-30 |
Platform |
1 |
Drill pipe including joint |
42 |
m |
30 |
Reducing nipple joint |
57/57 |
PC |
2 |
Reducing nipple |
89*57 |
PC |
1 |
Opening pipe |
89 |
PC |
1 |
Alloy bit |
91 |
PC |
1 |
Reducing nipple |
73 |
PC |
1 |
Core barrel |
73 |
PC |
1 |
Diamond bit |
75 |
PC |
1 |
Water pump |
Diesel engine power |
set |
1 |
Drill tower |
3m |
set |
1 |
Wire rope |
10mm |
m |
20 |
Rope cappel |
|
PC |
4 |
U shape ring |
|
PC |
1 |
Flat square main rod |
2m/PC |
PC |
1 |
Reducing nipple for main rod |
|
PC |
1 |
|
PC |
1 | |
Lifter |
|
PC |
1 |
U-fork |
57 |
PC |
1 |
Safety clamp |
57 |
PC |
1 |
Pliers |
24 |
PC |
1 |
L-wrench |
73/89 |
PC |
2 |
