| Feature: | Truck Crane |
|---|---|
| Brand Name: | CHANGJIANG |
| Max. Lifting Load: | 55 |
| Rated Loading Capacity: | 55 |
| Year: | 2015 |
| Make: | CHNAGJIANG |
| Model Number: | LT1055 |
| Place of Origin: | China (Mainland) |
| Max. Lifting Height: | 56 |
| Condition: | Used |
Quick Details
Specifications

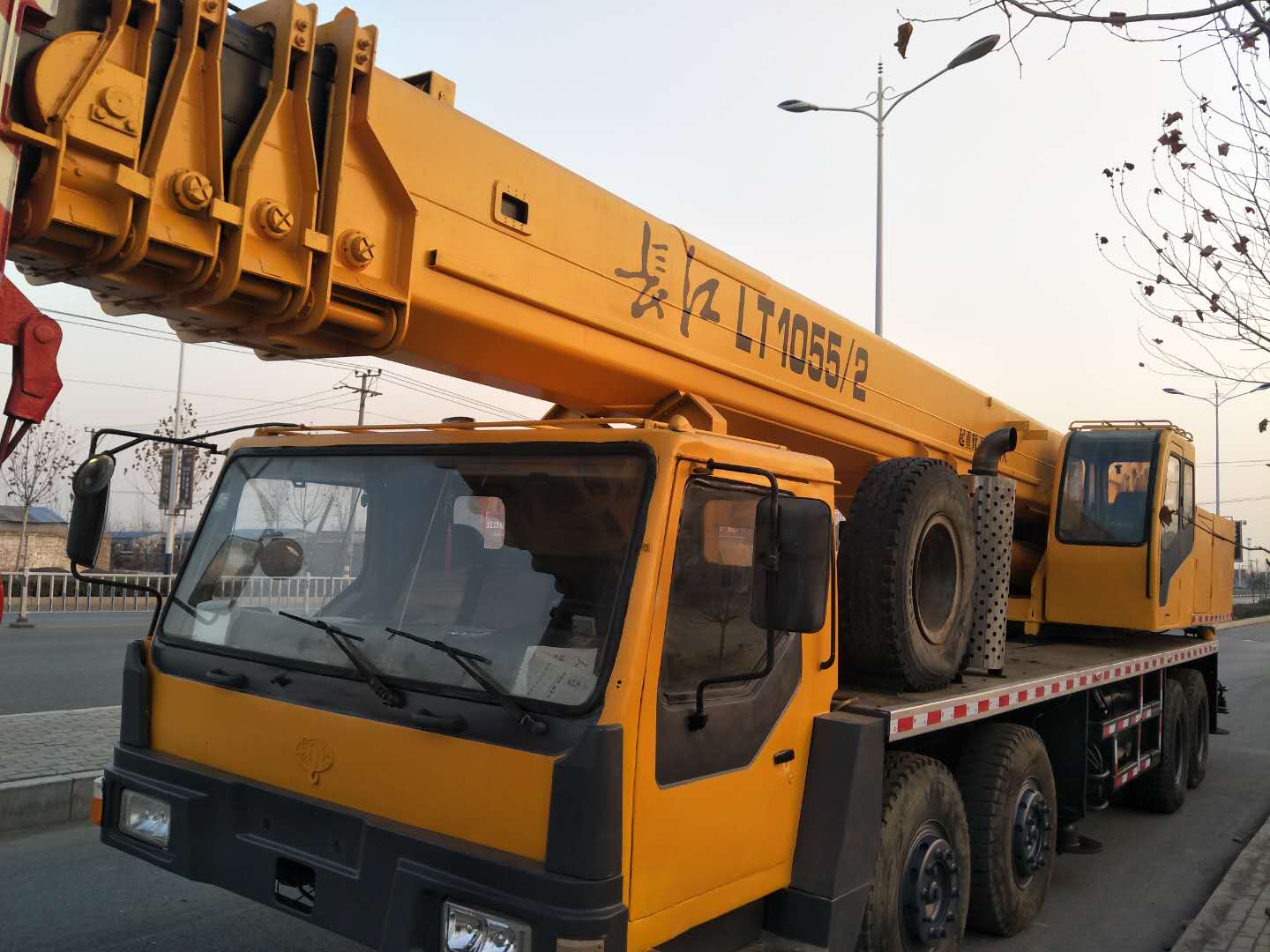

Changjiang LT1055 55 ton Truck Cranes
Place of Origin: Sichuan, China
Make: Changjiang
Year: 2015
Model Number: LT1055
Max. Lifting Load: 55ton
Rated Loading Capacity: 55ton
Rated Lifting Moment: 710KN.M
Basic arm: 10.94 M
Longest main arm + auxiliary arm length: 56m
Maximum speed (km/h): 75
Rated power (kw / rpm) 112 / 1800
Boom: Five section boom
Span:6m
Weights and Ground pressure
Curb weight: 42.1 t (92,748 lbs)
Gross vehicle weight rating 42.2 t (93,000 lbs)
Axle load distribution8500 kg / 8500 kg / 25200 kg (tandem axle)
Dimensions
Overall length:13300 mm
Overall width: 2750 mm
Overall height: 3685 mm
