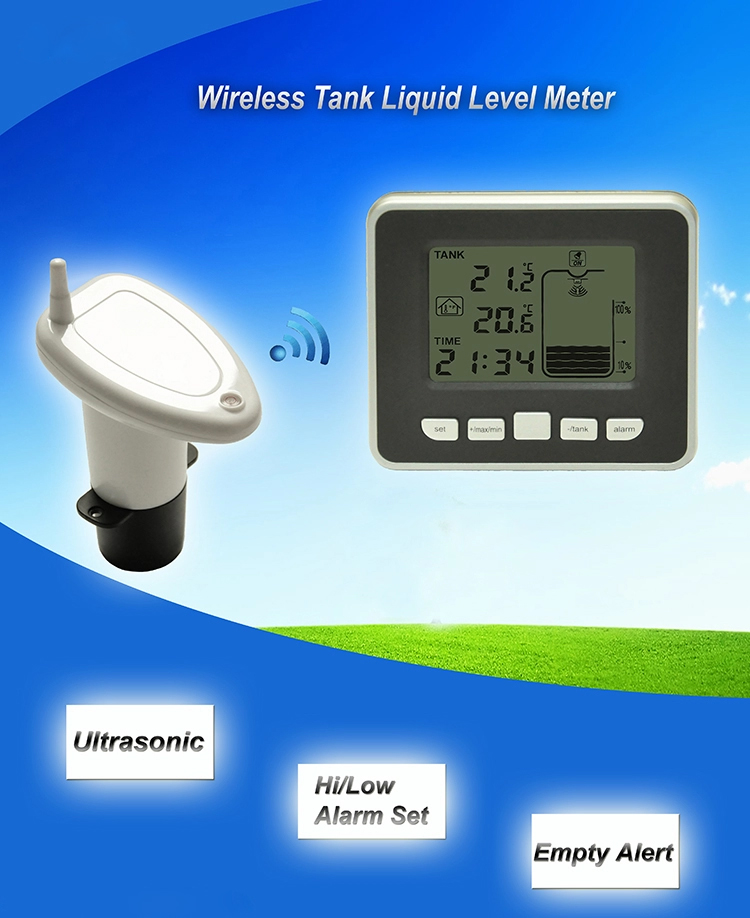

Features:

1. Monitors tank liquid depth level
2. Tank liquid level displayed on a 10-element LCD bar graph
3. Min/max records of tank liquid level
4. Tank liquid level high/low alarm
5. Tank liquid empty alert
6. Indoor temperature (of or oC)
7. Tank temperature (of or oC)
8. Time alarm
9.  Free Standing or wall hanging



Technical details:

 Indoor temperature range:0~60C
Outdoor temperature range:-40~60C
Temperature accuracy:1C
Water level measure rang:0 ~15m
Resolution:0.01m
Accurate: +/-0.03M
Transmission frequency:433MHZ
Transmission range:100 meters(300 feet)in open area
Transmission interval: 30s when level changes or 3 minutes when level does not change



Operation method of useage:

Install batteries for remote sensor and then for receiver.Put the sensor in water of tank. The sensor will measure the tank liquid depth and temperature of tank liquid automatically.



Package:

Color box for inner packing and corrugated carton for outer packing.
