Product Description:

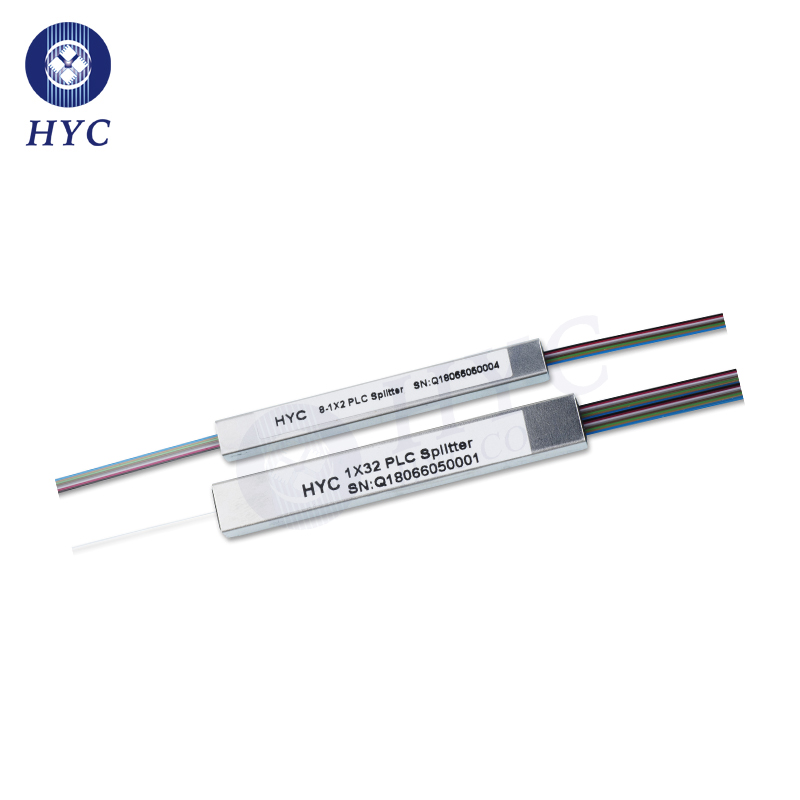

HYC's 4/ 6/ 8-1x2 PLC Splitter integrates up to 8 waveguides into one chip for reducing size and cost savings. 8-1x2 can be used independently without disturbing each other. It has good parameters of insert loss, good directivity and stable return loss and so on.



Features:

Low insertion loss,low PDL
Good channel to channel uniformity
High integration chip
Wide operating wavelength from 1260-1650nm
Compact design, save space
A variety of package structure



Applications:

CATV system
Optical fiber sensor
LAN network system
FTTH



Specifications:

Parameters	4-1x2	6-1x2	8-1x2
Operating wavelength(nm)	1260~1650
Fiber type	G652D/G657A1/G657A2
Insertion Loss(dB)	4.0
Uniformity(dB)	0.6
Return Loss(dB)	55
PDL(dB)	0.2
Directivity (dB)	55
Temperature Stability(-40~ 85 )(dB)	0.5
Operating temperature ()	-40~85
Storage temperature ()	-40~85
Package dimension (mm) LxWxH	45x5x4(250um)/70x12x4(900um)/120x80x18(2.0 or 3.0mm)
