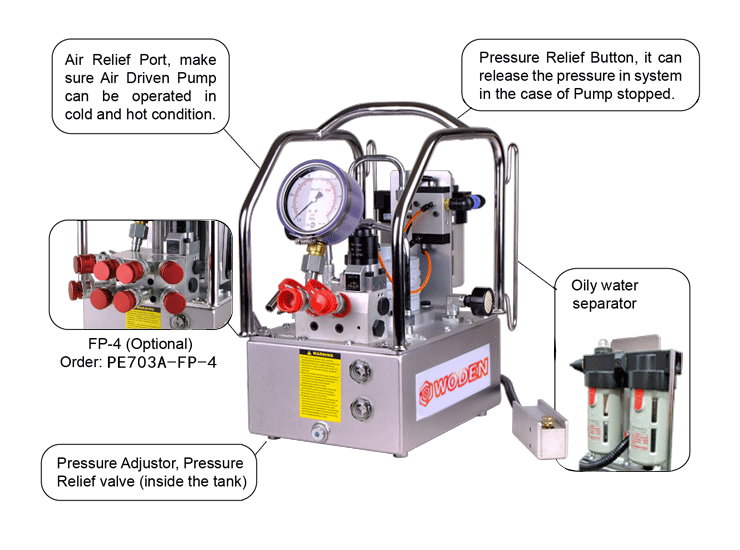

PQ703A Air Hydraulic Pump

Main Advantages:



Features

 Use where air(4~8 bar) is the preferred source of energy.
 Compact automatic three stage flow, can start in high pressure.
 Applicable on both one or two wrenches simultaneously.
 Aluminum oil tank with oil gauge and motor. Total weight only 20.5 kg.
 Have 00 high pressure gauge.

 Infinitely variable pressure adjustment between 40~700 bar.

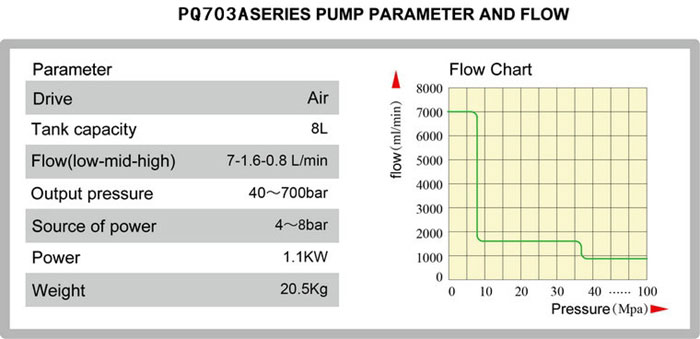

Technical details:





Our Factory:
WODEN hydraulic, products quality is stable,good price , timely after-sales. It is a brand of hydraulic wrenches and bolt tensioners in China, providing high quality bolt solutions for China and foreign users. Our products have been sold to: China Petroleum, Sinopec, CNOOC, Sinochem, China Oil and Gas, and many other well-known Chinese companies. At the same time, ,we also provide products and services for many medium-sized and above companies. Foreign markets are also constantly expanding, and the products have been sold to the United States, Russia, South Korea, Malaysia, Vietnam, Africa and other countries and regions. And by the recognition of domestic and foreign users and praise.
Hydraulic wrenches are available in two types: hydraulic wrenches and Low profile hydraulic wrenches. Select the appropriate type and model based on the data of the on-site bolt and nut.
There are currently 12 models of hydraulic wrenches with torques ranging from a minimum of 82 ft.lbs (112 Nm) to 51,874 ft. lbs (70320) Nm, which can be used to tightening and loosening bolts from M16 to M120. All product models are available from stock.
Low profile hydraulic wrenches are currently available in six models with torques ranging from a minimum of 171 ft. lbs (233 Nm) to 32,893 ft. lbs (44590 Nm), which can accommodate bolt tightening and loosening in the hex nut S19-S175 range. Please contact us for the models and details.





Certificates:
ISO9001:2015
ISO12100:2010
EN60204





Our Service:
Our products are: hydraulic wrenches, hydraulic bolt tensioners and related accessories.
Our services include: bolt tightening hydraulic tool selection, technical advice, after-sales and more.





FAQ:
There are any difficulties in the selection, please contact us, thank you for your cooperation and support!
