Product name: OADM

Specifications

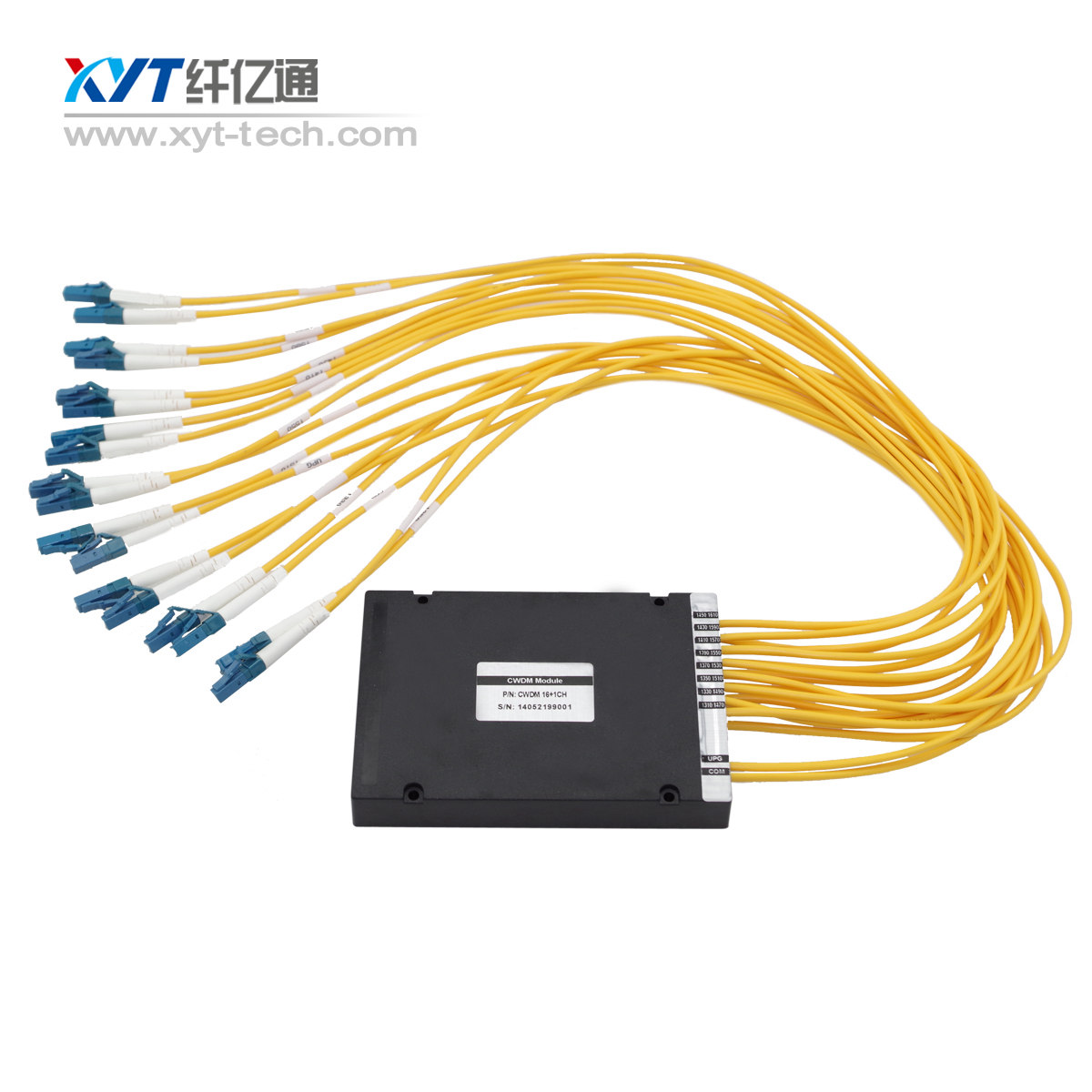

  Optical Module OADM Mux Equipment Optical Add-drop Multiplexer Single Fiber 4ch CWDM OADM

Description

DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

Features

Low Insertion Loss

Wide pass band

High Channel Isolation

High Stability and reliability

Applications

Channel Add/Drop

DWDM Network

Fiber Optical Amplifier

Performance Specifications

Parameter Channel Spacing

100GHz



200GHz



Channel Wavelength

1530.33~1560.61(21~59 TU grid)

Center wavelength Accuracy

0.05

0.1

Channel Spacing (GHz)

100

200

Channel Passband (@-0.5dB bandwidth) (nm)

>0.22

>0.5

Insertion Loss Pass Channel

0.8

0.9

Insertion Loss Reflect Channel

0.4

Channel  Ripple

0.3

Isolation

Adjacent

N/A

>30

N/A

>30



Non-adjacent

N/A

>40

N/A

>40

Reflection Channel Isolation (dB)

> 13

> 13

Insertion Loss Temperature Sensitivity

0.003

Wavelength Temperature Shifting

<0.002

Polarization Dependent Loss

<0.1

Polarization Mode Dispersion

<0.1

Directivity

>50

Return Loss

>45

Maximum Power Handling

500

Operating Temperature

-5~+75

Storage Temperature

-40~85

Package dimension

  1. 1. 5.5 x L34(L38 for 900um Jacket)

 Above specification are for device without connector

 Ordering Information

Optical Module OADM Mux Equipment Optical Adddrop Multiplexer Single Fiber 4ch CWDM OADM

Channel Spacing

Channel

Pigtail Type

Fiber length

Connector

100=100G

200=200G

C20= 1561.42 nm
C21= 1560.61 nm


0=250um

1=900um

2=2.0mm
3=3.0mm

1=1m
2=1.5m
3=others

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC

C=others
