| Brand Name: | QT-AQUA Soil moisture/temperature meter |
|---|---|
| color: | brown |
| Material: | leather |
| Appearance: | no |
| Glass transition temperature: | no |
Quick Details
Specifications

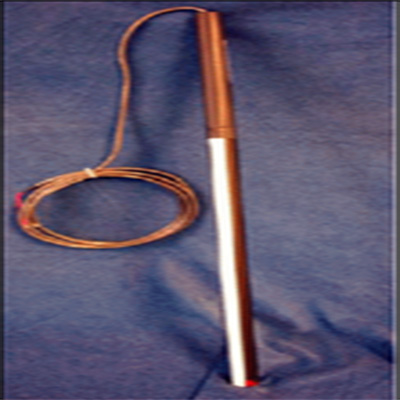

Product description: the QT-AQUA soil moisture/temperature meter can be used for the measurement of soil volumetric water content based on the advanced TDR principle. the electrical signal can be directly output, and the soil volumetric water content and soil temperature can be shown directly. the meter can be widely used in agricultural production, scientific research, etc because of its low cost.
Feature
- GPS coordination can be recorded
- Record data Automatically or manually
- Wireless data transmission via Wi-Fi
- Recognize sensors by two-dimensional code
- Automatically recognize connected sensors
- Terminal memory card is up to 32G
- Display real-time data and curve of recorded data
- Export data to Excel for analysis
Technical parameters
AQUA-TEL-TDR | |
Soil moisture | |
Measurement range |
0~100% |
Accuracy |
< 3% |
Repeatability error |
< 1% |
Output |
Optional 0~5 V; 4~20 mA; 0~1 mA |
Soil temperature | |
Measurement range |
-60~85 |
Accuracy |
2 |
Output |
0C = 273 A, 50C=323 A |
Probe parameters | |
Power |
12 VDC 20% @ 40 mA |
Size |
68cm length x 1.9 cm diameter |
Warm-up time |
1s |
Standard cables |
3m |
| |
Handheld terminal | |
CPU |
Quad-Core:1.3GHz |
Operating system |
Android 4.2 |
ROM |
4G |
RAM |
1G |
Extended memory |
up to 32G |
Screen size |
5.0 in. |
Screen resolution |
960*540 |
Operation mode |
Touch screen |
Screen color support |
16 million |
Origin: China
