| Brand Name: | XYT |
|---|---|
| Color: | -- |
| Compatible Brand: | Huawei,cisco,zte,etc |
| frequency: | -- |
| Product name: | optical switch |
| Model Number: | XYT-OSW-D2*2B |
| Place of Origin: | China (Mainland) |
| place of origin: | Guangdong, China (Mainland) |
| Wavelength: | 1260-1650nm |
| Voltage Type: | 3V/5V |
| Type: | D2*2B OSW |
| loose tube: | 0.9/2.0/3.0mm/customized |
| Connector: | LC/FC/SC/ST |
| Fiber length: | 1m/2m/3m/customized |
Quick Details
Specifications

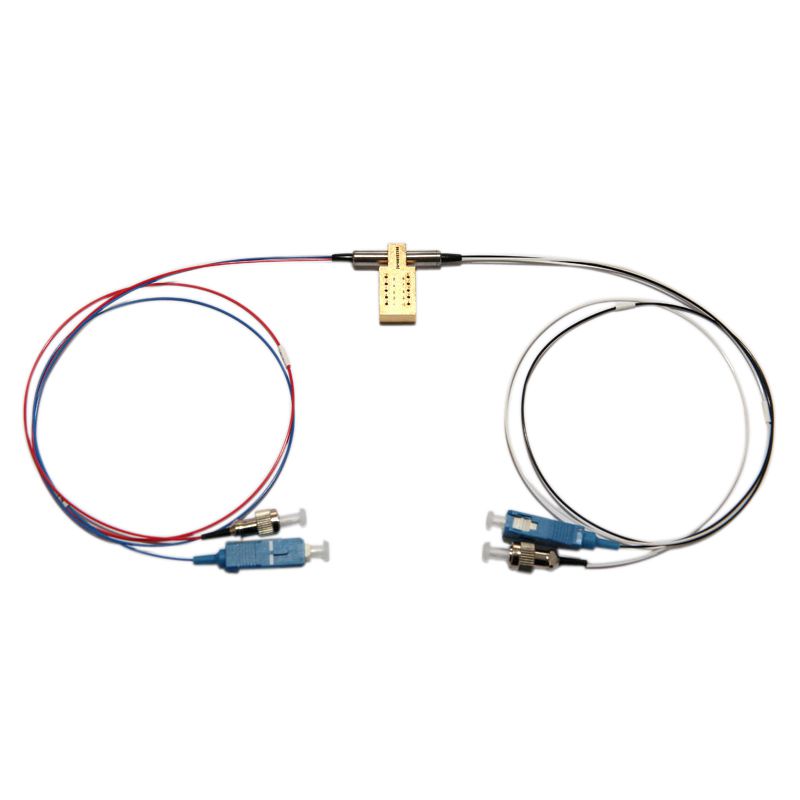

2x2 Bypass mechanical Fiber Optical Switch
Features |
Applications |
Unmatched Low Cost Low Insertion Loss High Channel Isolation Highly Stable and Reliable Epoxy-Free Optical Path |
the light signal top/bottom road System monitoring Instrument equipment Light signal routing
|
Parameter |
Values | ||
Wavelength Range |
nm |
850 |
1260~1650 |
Operating Wavelength |
nm |
850 |
1310/1490/1550/1625/1650 |
Insertion Loss |
dB |
Typ:0.8 Max:1.2 |
Typ:0.5 Max:0.8 |
Return Loss |
dB |
MM30 SM50 | |
Crosstalk |
dB |
MM35 SM55 | |
PDL |
dB |
0.05 | |
WDL |
dB |
0.25 | |
TDL |
dB |
0.25 | |
Repeatability |
dB |
0.02 | |
Power Supply |
V |
3.0 or 5.0 | |
Lifetime |
Times |
107 | |
Switch Time |
ms |
8 | |
Transmission Power |
mW |
500 | |
Operating Temperature |
-20~+70 | ||
Storage Temperature |
-40~+85 | ||
above specification are for device without connector.
Pins | |||||||||
Type |
Pin |
Electric Drive |
Status Sensor | ||||||
12 |
Channel |
1 |
5 |
6 |
10 |
2-3 |
3-4 |
7-8 |
8-9 |
Latching |
P1-P2 |
V+ |
GND |
-- |
-- |
Open |
Close |
Close |
Open |
P1-P3 |
-- |
-- |
GND |
V+ |
Close |
Open |
Open |
Close | |
Non-latching |
P1-P2 |
V+ |
-- |
-- |
GND |
Open |
Close |
Close |
Open |
P1-P3 |
-- |
-- |
-- |
-- |
Close |
Open |
Open |
Close | |
Optical route | |||
Specifications |
Voltage |
Current |
Resistance |
5V latching |
4.5~5.5 |
36~44mA |
125 |
5V non-latching |
4.5~5.5 |
26~32mA |
175 |
3V latching |
2.7~3.3 |
54~66mA |
50 |
3V non-latching |
2.7~3.3 |
39~47mA |
70 |
Ordering Information | |||||||
Product |
Wavelength |
Voltage Type |
Control model |
Fiber Type |
Fiber Diameter |
Fiber Length |
Connector |
1*2 Mechanical Optical switch |
85=850nm |
3=3V |
L=Latching |
5=50/125 |
1=Bare Fiber |
1=1m |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=others
|
