| Brand Name: | XYT |
|---|---|
| Color: | -- |
| Compatible Brand: | Huawei,cisco,zte,etc |
| frequency: | -- |
| Product name: | optical switch |
| Model Number: | XYT-MSW-1*8 |
| Place of Origin: | China (Mainland) |
| place of origin: | Guangdong, China (Mainland) |
| Wavelength: | 1260-1610nm |
| Voltage Type: | 3V~5V |
| Type: | MSW-1*2 |
Quick Details
Specifications

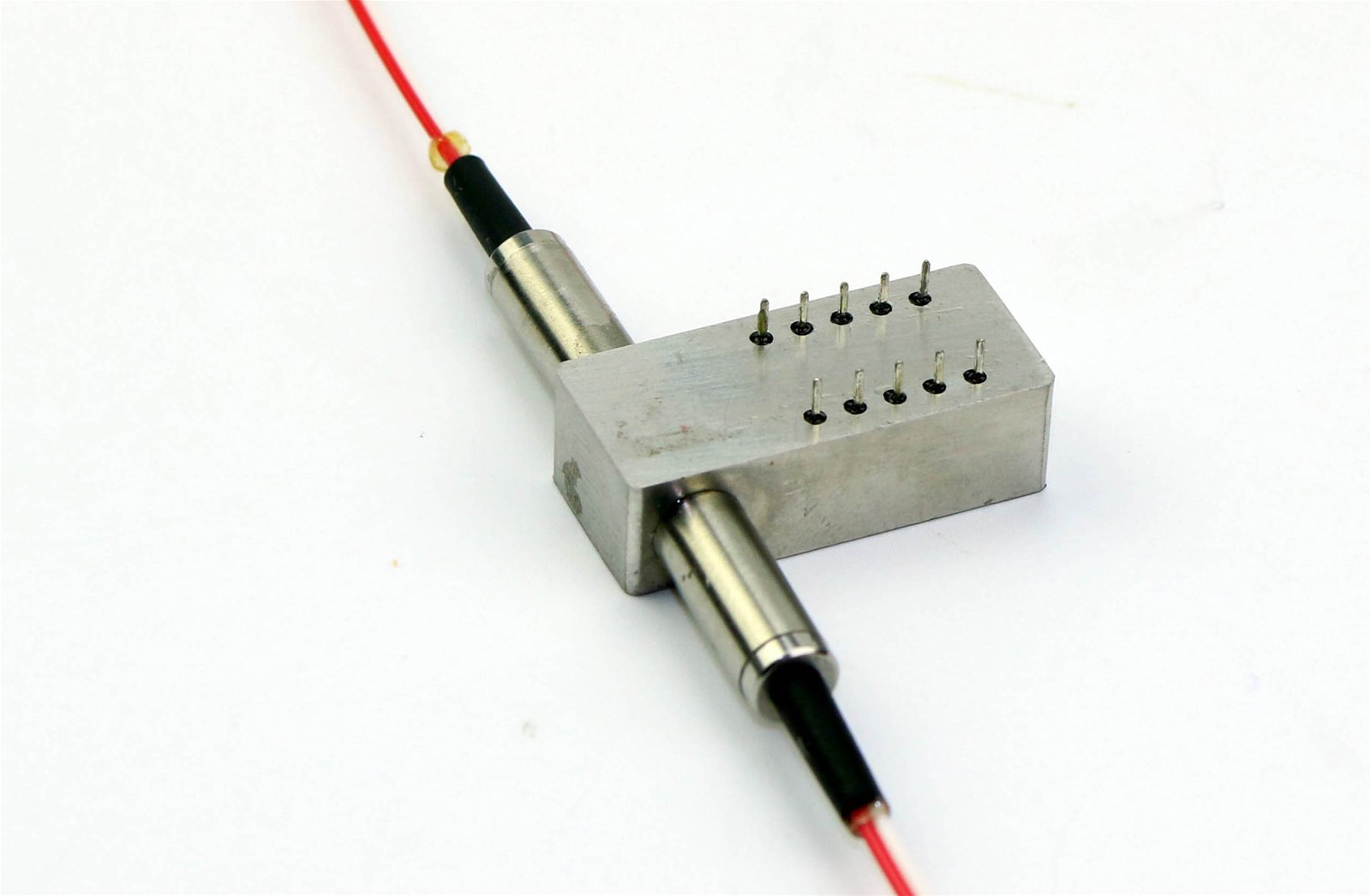

3 Years Warranty 1*2 MEMS Optic Switch Fiber Optical Switch with Low Insertion Loss
Features
Unmatched Low Cost
Low insertion Loss
High Channel Isolation
High Stability, High Reliability
Epoxy-free on Optical Path
Latching or Non-latching
Applications
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Network Test System
Performance
Parameters |
1*2 | ||
Wavelength Range |
nm | 670-980 | 1260~1650 |
OperatingWavelength |
nm | 670/785/850/980 |
1310/1490/1550/1625/1650 |
Insertion Loss |
dB | Typ:0.8 Max:1.2 |
Typ:0.5 Max:0.8 |
Return Loss |
dB | MM30 SM50 | |
Crosstalk |
dB | MM35 SM55 | |
PDL |
dB | 0.05 | |
WDL |
dB | 0.25 | |
TDL |
dB | 0.25 | |
Repeatability |
dB | 0.02 | |
Power supply |
V | 3.0 or 5.0 | |
Lifetime |
Time | 107 | |
Switch Time |
ms | 8 | |
Transmission Power |
mW | 500 | |
OperatingTemperature |
-20~+70 | ||
Storage Temperature |
-40~+85 | ||
Weight |
g | 16 | |
| Dimension | mm | (L)27.0(W)12.6(H)8.0(0.2) | |
