After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Certification: | CE |
Type: | Mill Machine |
Brand Name: | FDSP |
Condition: | New |
Warranty: | one year |
Weight: | 680kg |
Dimension(L*W*H): | 1480*993*1080mm |
Power(W): | 3000 |
Voltage: | 380V/400V/415V 50/60HZ |
Model Number: | SFSP568-1 |
Place of Origin: | China (Mainland) |
Quick Details
Specifications
Advantages of Hammer mill pulverizer
1.It is simple structure, safe, dependable, easily mounting and convenient operation, low vibration, high output;
2. It is widely used for grinding granular materials, such as corn, sorghum, wheat, soybean, etc;
3. Steel plate welded structure; motor and rotor are mounted on same base plate;
4. Pin coupling direct connection driving; Rotor passes accurate dynamic balancing test;
5. Safe operation door to ensure it is locked when operation;
6. the inlet is on top of machine for easy operation.
Techinical Parameters
Model Parameters |
Dia. of Rotor (mm) |
Width of Grinding Chamber (mm) |
Speed of Rotor (rpm) |
Power (kw) |
Output (t/h) |
SFSP568- |
560 |
360 |
2940 |
22 |
3-4 |
SFSP568- |
560 |
360 |
2940 |
30 |
3-5 |
SFSP568- |
560 |
400 |
2940 |
37 |
5-6 |

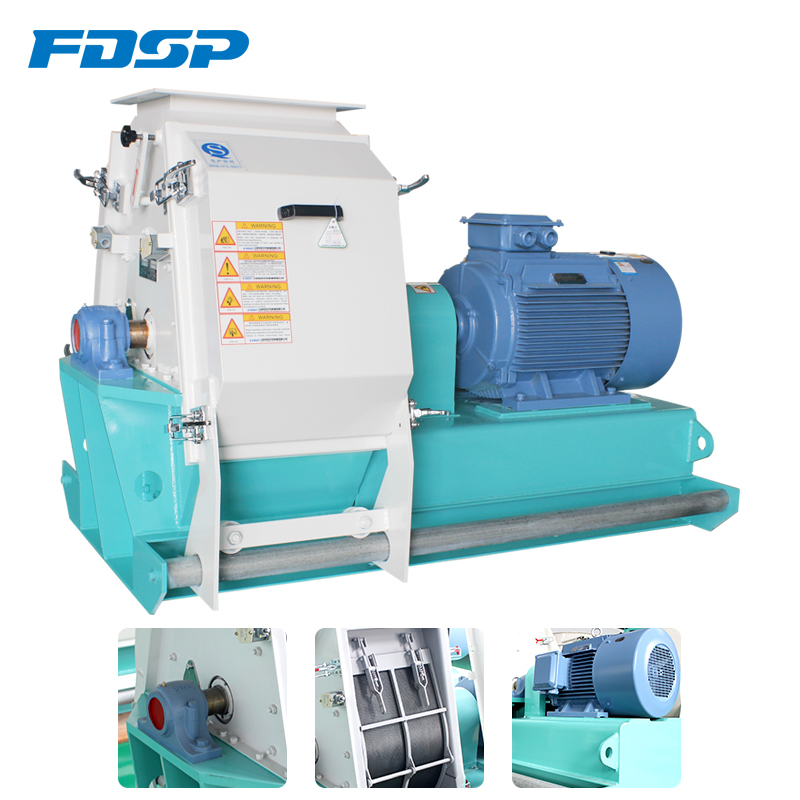

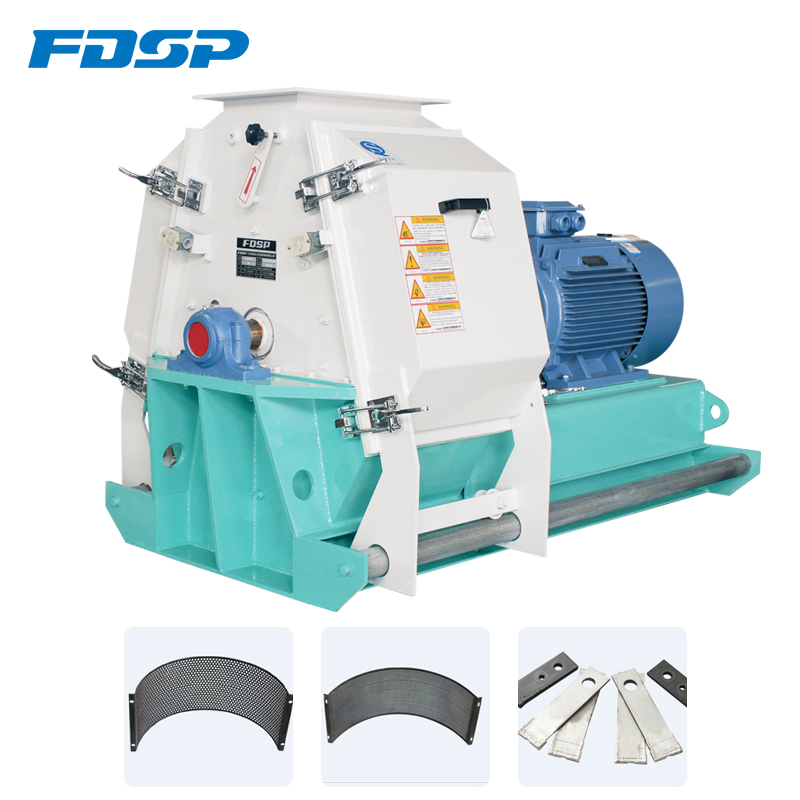

Products picture of hammer mill pulverizer
