14channel Single Fiber Compacted CWDM Module with LC/APC Connector Low IL

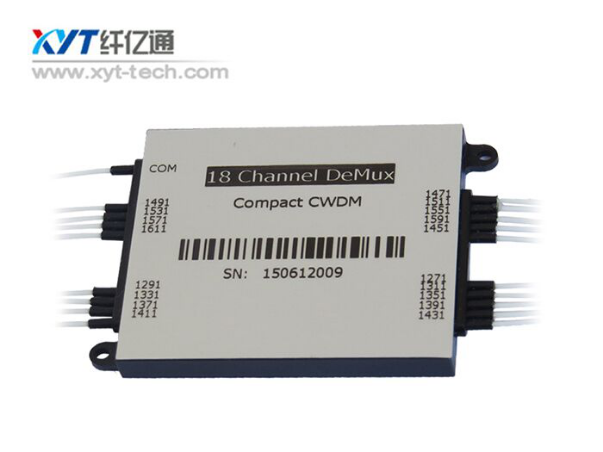

Sharetop Now offers a Mini CWDM (CCWDM) module that provides bandwidth capacity Expansion for future network growth in one of the industry's smallest Packages.the compact CWDM modules are based on free space optics Technology.It is available in 4-or 8-channel configurationsIt have lower Overall insertion loss and better uniformity across the channels.Its Compact size and unique carrier tray set it apart, making it easier to Deploy in a variety of field situations.

Features:

Epoxy free in optical path

Stable and reliable

Compact size



Applications:

Optical Add/Drop

Telecom networks

Metro networks



Specifications:

Parameter	Unit	Min	Typical	Max
Channel Number	CH	8
Operating Wavelength	nm	1260~1620
Channel Wavelength	nm	1471 1491 1511 1531 1551 1571 1591 1611
CHannel INsertion Loss	dB		1.0	1.5
Passband Bandwidth	nm	13	15
Channel Ripple	dB		0.3	0.5
Adjacent CHannel ISolation	dB	30	35
Non-ADjacent CHannel ISolation	dB	40
Return Loss	dB	45
Directivity	dB	55
PDL	dB			0.2
PMD	ps			0.2
Power Handling	mW			300
Operating temperature	C	0 ~+70
Storage temperature	C	-40 ~+85
Package (exclude boots)	mm	44(L)X28(W)X7(H)

Notes:

1. All specifications include all states of polarization and all operating temperature and all wavelength ranges specified.

2. All the data are without connectors. Insertion loss of one pair connector is less than 0.3dB.



Ordering Information
CCWDM	Module Type	Wavelength	Fiber Type	Fiber Length	Connector
