| Brand Name: | XYT |
|---|---|
| Wavelength: | 1310/1490/1550nm |
| Data Rate: | -- |
| warranty: | 3years |
| Connector: | FC, SC, LC, ST |
| Model Number: | XYT-F-1XN |
| Place of Origin: | China (Mainland) |
| Product name: | FWDM Filter |
| Application: | CATV, Optical amplifiers, EDFA |
| Fiber type: | 1x2 |
| Packing: | Tube Steel |
| Type: | Passive device |
Quick Details
Specifications

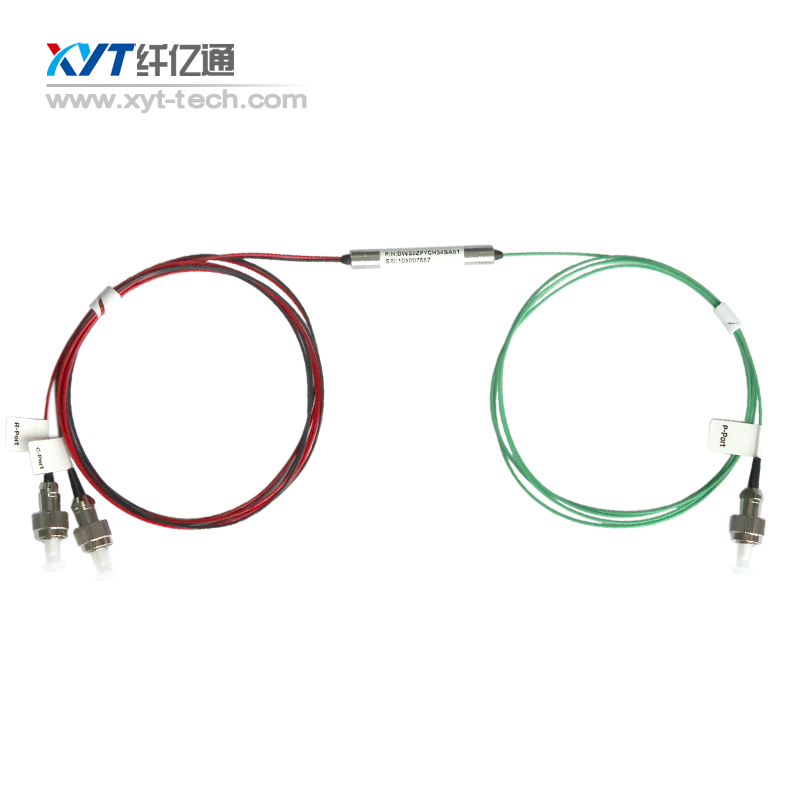

FWDM wdm filter 1310nm 1490nm 1550nm Optical wdm Filter cwdm filter for CATV/EDFA/Optical amplifiers
Product Description
Description
Filter-based Wavelength Division Multiplexer (Filter WDM, or FWDM) is based on the Mature membrane filter technology, with a wide channel bandwidth, low Insertion loss, high channel isolation degrees and high environmental Stability and reliability. the device combines or separates light at Different wavelengths in a wide wavelength range. the Filter-Based WDM Is extensively used in EDFA, Raman amplifiers, WDM networks and fiber Optics instrumentation.
Features
Wide bandwidth
Low insertion loss
High channel isolation
Exceptional reliability and stability
Applications
Optical amplifiers
CATV
Specifications
Item |
Unit |
Parameters | |||||
Pass Port
(C-P)
|
Central Wavelengthp |
nm | 1310 |
1550 |
1550 |
1310/1490 | |
Wavelength Range |
nm | 1260~1360 |
1550~1560 |
1540~1620 |
1260~1500 | ||
Insertion Loss |
dB |
0.60 | |||||
Flatness |
dB |
0.30 | |||||
Isolation @R |
dB |
30 | |||||
Reflect
Port
(C-R)
|
Central WavelengthR |
nm |
1490/1550 |
1310/1490/1600 |
1310/1490 |
1550 | |
Wavelength Range |
nm |
1460~1620 |
1260~1500&
1580~1620 |
1260~1500 |
1535~1620 | ||
Insertion Loss |
dB |
0.40 | |||||
Flatness |
dB |
0.25 | |||||
Isolation @P |
dB |
13 | |||||
Directivity |
dB |
50 | |||||
Optical Return Loss |
dB |
50 | |||||
Polarization Dependent Loss |
dB |
0.1 | |||||
PMD |
ps |
0.1 | |||||
Thermal Stability |
dB/ |
0.005 | |||||
Optical Power |
mW |
500 | |||||
Tensile Load |
N |
5 | |||||
Operating Temperature |
-5 to +70 | ||||||
Storage Temperature |
-40 to +85 | ||||||
Fiber type |
|
SMF-28e | |||||
Package dimension |
mm |
TBD | |||||
Note: under normal temperature conditions, not including connectors, splices and end device loss
Ordering information(FWDM-1-1-1-0)
Product name |
Type |
Tube |
Fiber length |
Connector |
FWDM |
1=T1310nmR1490+1550 2=T1490nmR1310+1550 3=T1310+1490nmR1550 4=T1550nmR1310+1490
|
1=250um Fiber 2=900um Fiber 3=Others |
1=0.5+/-0.1m 2=1.0+/-0.1m 3=Others |
0=No connector 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC |
