| Type: | Ball |
|---|---|
| Structure: | Other Structure |
| Seals Type: | other |
| Precision Rating: | +/-10% |
| Outside Diameter: | mm-120 mm |
| Bore Size: | mm-120 mm |
| Brand Name: | X-FAN |
| Place of Origin: | China (Mainland) |
| Model Number: | RDM1225B |
| Certification: | Other,CE,CSA,RoHS,UL, |
| Material: | Plastic |
| Installation: | Other |
| Voltage (V): | 12 |
| Power (W): | 3 |
| Power Source: | Electric |
| 120x120x25mm: | DC fan |
| 12V: | 0.23A |
| UL CUL: | TUV |
Quick Details
Specifications
Fan Spec:

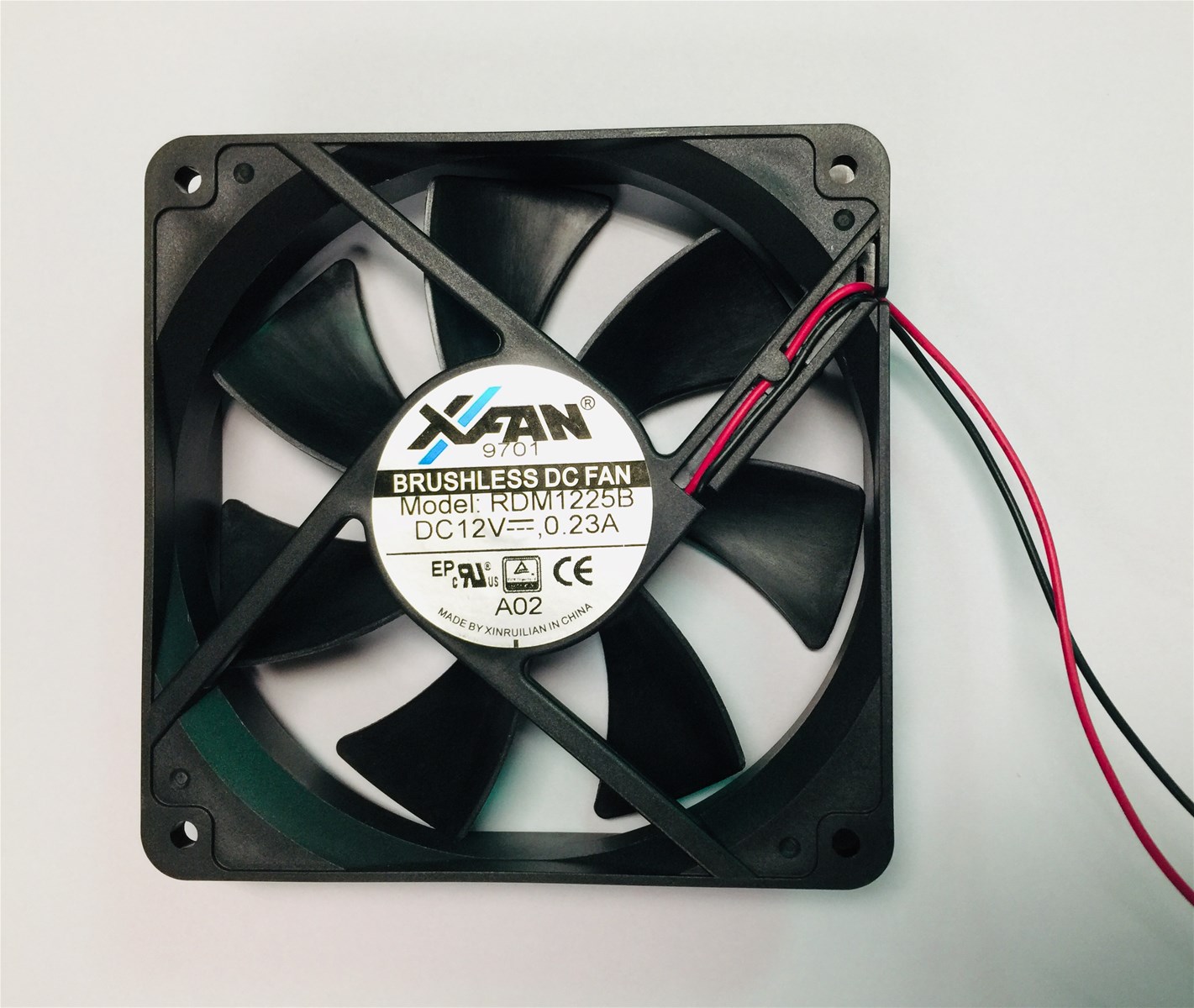

Model no. RDM1225B, 12V, standard 2 wires
Ball bearing type,
2000RPM, 0.23A,
76.9CFM, 3.5mmH2O,38dba
Operation voltage: 6.0-13.8V
Function:
2 wires & 3 wires & 4 wires type are available,
with optional features: auto restart, tach output, alarm detector, PWM
Life time:
Average 70,000hours while fan operating at rated voltage in room temperature conditions
Safety approvals:
UL/CUL/TUV/CE
Model no. RDM1225B, 12V, standard 2 wires
Ball bearing type,
2000RPM, 0.23A,
76.9CFM, 3.5mmH2O,38dba
Operation voltage: 6.0-13.8V
Function:
2 wires & 3 wires & 4 wires type are available,
with optional features: auto restart, tach output, alarm detector, PWM
Life time:
Average 70,000hours while fan operating at rated voltage in room temperature conditions
Safety approvals:
UL/CUL/TUV/CE
