| Certification: | CCC,CE,ROHS,UL |
|---|---|
| Protect Feature: | Totally Enclosed |
| Output Power: | 0.12kw-5.5kw |
| Type: | Asynchronous Motor |
| Brand Name: | TECHTOP |
| Efficiency: | IE 1 |
| Place of Origin: | China (Mainland) |
| AC Voltage: | 115/120 V |
| Phase: | Single-phase |
| Frequency: | 50HZ or 60HZ |
| Model Number: | ML series |
| Laura WhatsApp: | +86-13472822686 |
| TECHTOP: | techtop@foxmail.com |
Quick Details
Specifications
TECHTOP motor

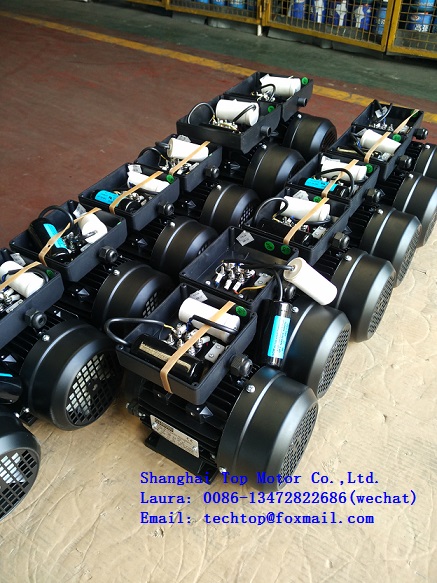

ML series Single-Phase Capacitor Start and Capacitor Run
Asynchronous Motors Aluminum Housing
TECHTOP dual capacitor motor
Long service life, low failure rate,
Resistant to complex working conditions,
Highly cost performance
Strict company management,constant innovation,and perfect aftersales improvement
TECHTOP has 31 years' experience in production and sale of electrical motors with 3 factories and 10
Oversea subsidiaries for our global strategy. It's one of the largest LV motor exporters in China
and the 1st brand in aluminum motors in the world.
TECHTOP GROUP is manufacturing, processing and selling electric motor products, provides its
Customers worldwide with local stock and delivery, customized products and technical solutions,
Backed by excellent customer services
TECHTOP has high reputation by implementing new innovation. We owns over 30 intellectual property
Patents for exceptional product design & technology. the quality and manufacturing process meet
ISO9001, CCC, CE, CSA, UL, EEV, CC, ATEX, and GL etc.
IEC(fr56-355) and NEMA(fs48-449) standard motor in aluminum and cast iron housing, meets efficiency
in IE1, IE2, IE3 and IE4, NEMA EPACT and PREMIUM; GOST standard motor, fire pump motor, VHS motor,
HT smoke extraction motor, DC & EC motor
ML series Single-Phase Capacitor Start and Capacitor Run
Asynchronous Motors Aluminum Housing
TECHTOP dual capacitor motor
Long service life, low failure rate,
Resistant to complex working conditions,
Highly cost performance
Strict company management,constant innovation,and perfect aftersales improvement
| MODEL | OUTPUT | NT | PACKING | REMARKS | |||
| (KW) | (HP) | (kg) | (mm) | ||||
| ML | 631-2 | 0.18 | 0.25 | 4.00 | 221*145*193 | 30uf/250V | 10uf/450V |
| ML | 632-2 | 0.25 | 0.33 | 4.50 | 221*145*193 | 40uf/250V | 12uf/450V |
| ML | 711-2 | 0.37 | 0.50 | 6.10 | 260*160*199 | 75uf/250V | 12UF/450V |
| ML | 712-2 | 0.55 | 0.75 | 6.50 | 260*160*199 | 100uf/250V | 16UF/450V |
| ML | 801-2 | 0.75 | 1.00 | 9.00 | 295*180*236 | 100uf/250V | 20uf/450V |
| ML | 802-2 | 1.10 | 1.50 | 10.00 | 295*180*236 | 150uf/250V | 30uf/450V |
| ML | 90S-2 | 1.50 | 2.00 | 13.00 | 345*181*253 | 200uf/300V | 40uf/450V |
| ML | 90L-2 | 2.20 | 3.00 | 14.50 | 373*181*253 | 250uf/300V | 50uf/450V |
| ML | 100L-2 | 3.00 | 4.00 | 25.00 | 449*210*270 | 400uf/300V | 60uf/450V |
| ML | 112M1-2 | 3.70 | 5.00 | 33.50 | 450*230*313 | 600uf/300V | 60uf/450V |
| ML | 112M2-2 | 4.00 | 5.50 | 34.50 | 450*230*313 | 600uf/300V | 60uf/450V |
| ML | 631-4 | 0.12 | 0.16 | 4.00 | 221*145*193 | 30uf/250V | 10uf/450V |
| ML | 632-4 | 0.18 | 0.25 | 4.50 | 221*145*193 | 40uf/250V | 12uf/450V |
| ML | 711-4 | 0.25 | 0.33 | 6.10 | 260*160*199 | 50uf/250V | 12UF/450V |
| ML | 712-4 | 0.37 | 0.50 | 6.50 | 260*160*199 | 75UF/250V | 16uf/450V |
| ML | 801-4 | 0.55 | 0.75 | 9.50 | 295*180*236 | 100uf/250V | 20uf/450V |
| ML | 802-4 | 0.75 | 1.00 | 10.50 | 295*180*236 | 100uf/250V | 25uf/450V |
| ML | 90S-4 | 1.10 | 1.50 | 13.50 | 345*181*253 | 150uf/250V | 35uf/450V |
| ML | 90L-4 | 1.50 | 2.00 | 14.50 | 373*181*253 | 200uf/300V | 40uf/450V |
| ML | 100L1-4 | 2.20 | 3.00 | 24.00 | 449*210*270 | 300uf/300V | 50uf/450V |
| ML | 100L2-4 | 3.00 | 4.00 | 28.50 | 449*210*270 | 500uf/300V | 60uf/450V |
| ML | 112M-4 | 3.70 | 5.00 | 34.50 | 450*230*313 | 600uf/300V | 60uf/450V |
