| Certification: | CCC,CE,ROHS,UL |
|---|---|
| Protect Feature: | Totally Enclosed |
| Output Power: | 0.25HP-50HP |
| Type: | Asynchronous Motor |
| Brand Name: | TECHTOP |
| Efficiency: | |
| Place of Origin: | China (Mainland) |
| AC Voltage: | 208-230 / 240 V |
| Phase: | Three-phase |
| Frequency: | 60HZ |
| Model Number: | JM JP MOTOR |
| Laura: | +86-13472822686 |
| TECHTOP: | techtop@foxmail.com |
Quick Details
Specifications
TECHTOP MOTOR

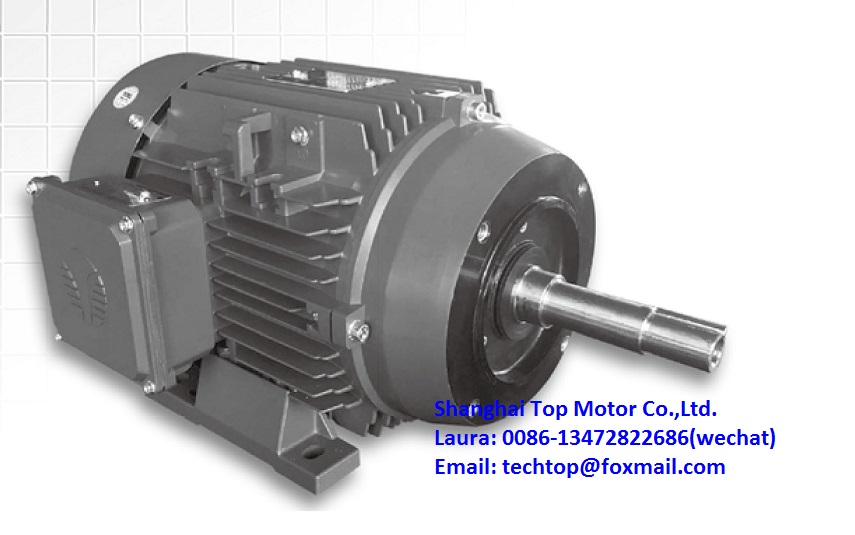

NEMA 56J JM JP Pump Motors
1/4HP thru 50HP
Standard FEATURES
* Aluminum housing
* IP55 Rated
* MG1 Part 31 for VFD use
* Continuous Duty
* Dual Voltage
* 40 Ambient Temperature Rating
* Double Lip Oil Seals
* Dual Oversized Bearings
* Multi mount Removable Feet
* Conduit Box is 90 Rotatable
* Stainless Steel nameplate
* One-Way Brass Condensation Drains
* F1,F2,F3 Field Convertible (Shipped F1)
NEMA standard (EPACT and Premium Efficiency) fs48/140 to 449 (1HP to 500HP, 2/4/6/8 poles)
1. HVAC series Resilient cradle Motors
2. SLD series NEMA Single Phase Rolled Steel Frame ODP Motors
1/4HP thru 10HP;48thru 215T; 48C thru 215TC
3. SLF series NEMA Single Phase Rolled Steel Frame TEFC Motors
1/4HP thru 10HP;48thru 215T;48C thru 215TC
4. TD series NEMA EPACT & Premium Efficiency Rolled Steel Frame 3-Phase ODP Motors;
1/4HP thru 10HP; 48 thru 215T; 48C thru 215TC
5. TF series NEMA EPACT & Premium Efficiency Rolled Steel Frame 3-Phase TEFC Motors
1/4HP thru 10HP; 48 thru 215T; 48C thru 215TC
6. TFA/TXA series NEMA Premium Efficiency 3-Phase Motors
1/4 thru 50HP Aluminum TEFC; 56 thru 326T
7. NEMA 56J JM JP Pump Motors
8. NEMA Three-Phase Brake Motors Aluminum TEFC
1/4hHP thru 25 HP,56T thru 256T
9. TDA Series NEMA Premium Efficiency Three-Phase Motors
Aluminum ODP; 1/4 HP thru 15HP; 56 thru 215T
10. TLF Series NEMA Single-Phase Motors Aluminum TEFC;
1/4HP thru 10HP; Frame Size #56-#210T
11. TLD Series NEMA Single-Phase Motors Aluminum ODP;
1/4HP thru 10HP; Frame size 56-210T
12. TXC series NEMA Premium Efficiency 3-Phase Motors
1HP thru 500HP Cast Iron TEFC; 143T thru 449T
13. Crusher Duty Motors
75HP thru 200HP Cast Iron TEFC
14. TOC Series Oil Pumper Motors
3HP thru 125HP Design D foot mounted, 213T thru 445T, Cast Iron TEFC
15. TXC IEEE-841 three-Phase Motor Petrochem motor-NEMA Premium Efficiency
16. TFC Series NEMA JM JP Pump Motors
1HP thru 100HP
17.TDC series NEMA Premium Efficiency 3-Phase Motors
7.5HP thru 250HP; 254T thru 449T; Cast Iron ODP
Shanghai Top Motor Co.,Ltd.
Laura: +86-13472822686
(WhatsApp & wechat)
