| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Brand Name: | KINKAI |
| Type: | Dehumidifier |
| Condition: | New |
| Certification: | CE |
| Weight: | 180kg |
| Dimension(L*W*H): | 1675*860*1280mm |
| Power(W): | 5500 |
| Voltage: | 220V/380V |
| Model Number: | JK03RD |
| Place of Origin: | China (Mainland) |
| Name: | Seafood dehumidifier fish/shrimp drying machine |
| Adjustable temperature: | 10-75C |
| Capacity: | 300-3000kg |
| Function: | heating cooling dehumidify |
| Dehumidification amount: | 12.0 L/H |
| Drying room size: | 316082070*2200mm |
| Heating capacity: | 10.5KW |
| Cooling capacity: | 7.8 KW |
Quick Details
Specifications
Seafood dehumidifier fish/shrimp drying machine
What is heat pump dryer?
A device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in refrigerator.
Dry vegetables like Radish, lettuce, pumpkin, carrots, spinach, cassava etcDry fruits like Apple, lemon, mango slices, dried longan, dried longan etc
Dry meat: fish, Sausage, jery beef, duck, ham ect
Others it can dry noodle, wooden, stick incense, herbs, flowers ect.
Dehydrator Functions:
Heating drying
Cooling drying
Heating +dehumidify dryingOur Drying Features:
Heating drying
Cooling drying
Heating +dehumidify dryingOur Drying Features:
*Running Stable, operating easily
Touch screen, runnig stable, operating easily, can set different drying curve, suitable for drying different materials.
*Second waste heat recovery technology(patent)
Adopt air to air heat exchanger dehumidify and recovery waste heat at the same time, saving energy more than 70%.
*Exact control temperature and humidity
According to different material setting different drying curve, the heat pump dryer can control the drying chamber temperature between 10-75C.
*Recovery volatilized component
Some kinds of material contain volatilized component, in drying processing, hot and wet air will become condenser water then drain, collect the condenser water so that collect volatilized component.
* Energy saving&Environmental protection
Adopt close dehumidify+hot air circulating drying type, saving operating cost; without waste gas and waste heat pollution; Low noise

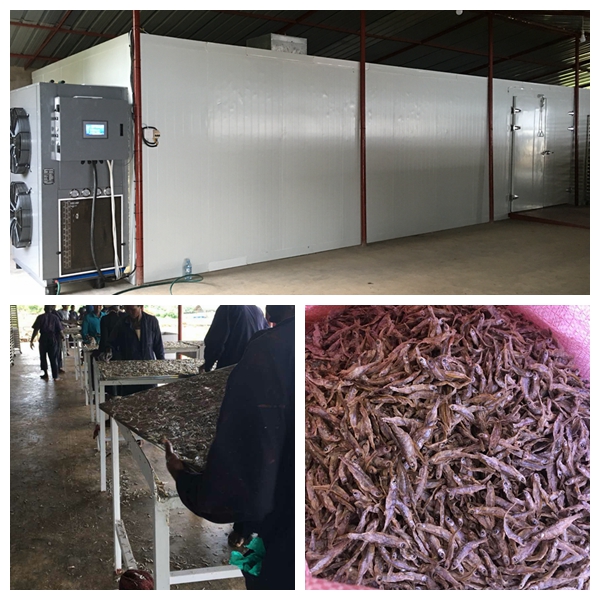

Dry fish Project
Technical Data
Single Dryer+Dryer Chamber | ||||
Model |
Unit |
JK03RD |
JK06RD |
JK12RD |
Power Input |
KW |
4.8 |
8.5 |
15.0 |
Power supply |
V/PH/HZ
|
220V/3PH,50/60Hz 380V/3PH,50/60Hz |
380V/3PH,50/60HZ | |
Rated Current |
A |
9.6A(380V) 22A(220V) |
17.0 |
30.0 |
Heat Capacity |
KW |
10.5 |
21.0 |
42.0 |
Cooling Capacity |
KW |
7.8 |
18.0 |
32.0 |
Dehumidify |
L/H |
12.0 |
25.0 |
50.0 |
Max Temperature |
75 |
75 |
75 | |
Working condition |
0-43 |
0-43 |
0-43 | |
Electric Shock Protection Grade |
I |
I |
I | |
Max.Exhause Pressure |
MPa |
3.0 |
3.0 |
3.0 |
Noise |
dB(A) |
75 |
75 |
75 |
Power Consumption |
KWH |
4.8 |
8.5 |
15.0 |
Electric Heater |
KW |
3.0 |
6.0 |
12.0 |
Blowing Type |
/ |
Horizontal Blowing 360 | ||
Dimension of Dryer |
MM |
1675*860*1280 |
1760*1060*1280 |
2120*1360*1590 |
Weight |
KG |
180 |
285 |
480 |
Buying Guide
Item |
Model |
Drying room size |
Input Capacity |
1
|
Single JK03RD |
3160*2070*2200 mm |
300kg |
2
|
Single JK06RD |
5700*2170*2200 mm |
600kg |
3
|
Single JK12RD |
5810*3230*2200 mm |
1000kg |
4
|
Double JK03RD |
7510*2070*2200 mm |
800kg |
5
|
Double JK06RD |
10530*2170*2200 mm |
1500kg |
6
|
Double JK12RD |
10750*3230*2200 mm |
2500kg |
Packing and Shipment
Our Service
1We could Calculate and match you the best dryer that according to your drying quantity and our experience.
2We could try to help you set the drying method in some ways,such as we could do the free trial drying for you,
or according to the physical characteristic of the drying machine material,to set the suitable drying temperature,the
Drying dehumidify,the drying time for you.
3We have the professional engineer to give you technical support in your installation,operation,and maintenance.
4Warranty:1 year,during this year,we could offer you the spare part if any spare part is broken.Except the manned destroy.
5You could choose the galvanized sheet iron or stainless steel housing material for you to choose.
6We are 24 hours online for your refer in our duty time.
