| Type: | Axial Flow Fan |
|---|---|
| Certification: | CE,CSA,ROHS,UL |
| Air Volume: | 13.2cfm |
| Voltage: | 12V |
| Brand Name: | X-FAN |
| Type: | DC FAN |
| Model Number: | RDH5010B |
| Place of Origin: | China (Mainland) |
| DC Axial Fan: | 12V |
| 50x50x10mm: | 0.16A |
| Ball bearing type: | 5300RPM |
| UL CUL CE: | 70000hours |
Quick Details
Specifications

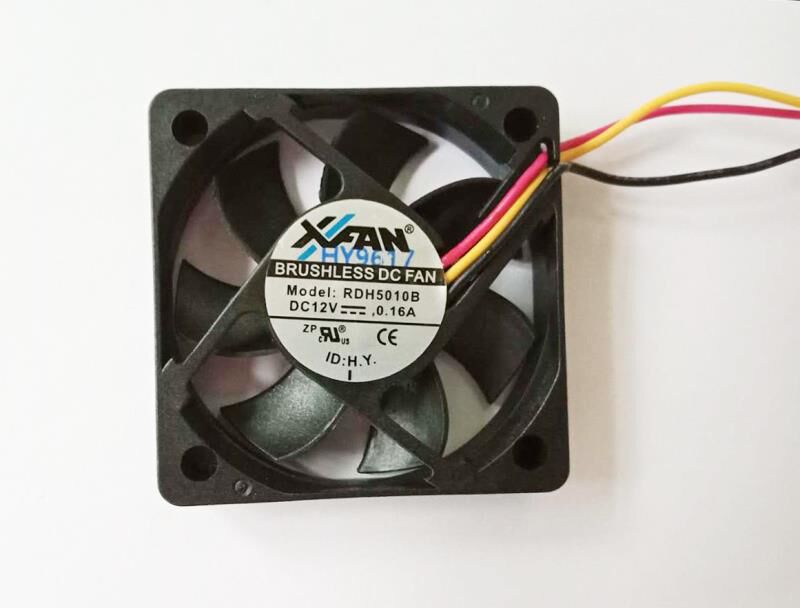

SPEC:
DC Fan, 12V
Size 50x50x10mm,
Ball bearing type
5300rpm, 13.20 CFM, 3.3mmH2O, 32dba
3 wires, with alarm detector
Features optional:
Sleeve bearing and ball bearing
Available by different speed, medium speed at 4500rpm, low speed at 3500rpm;
5V version and 12V version
2 wires version and 3 wires version for optional
Function: tach output or alarm detector
Safet Approval:
UL, CUL, CE
Life time:
70,000hours while fan is working at rated voltage in room temperature 40C and 15%-65% RH enviroment.
Appliance:
Power suppliers, beauty & health care, home appliance, machinery, measurement & instruments, medical part, service equipments, telecommunication.
DC Fan, 12V
Size 50x50x10mm,
Ball bearing type
5300rpm, 13.20 CFM, 3.3mmH2O, 32dba
3 wires, with alarm detector
Features optional:
Sleeve bearing and ball bearing
Available by different speed, medium speed at 4500rpm, low speed at 3500rpm;
5V version and 12V version
2 wires version and 3 wires version for optional
Function: tach output or alarm detector
Safet Approval:
UL, CUL, CE
Life time:
70,000hours while fan is working at rated voltage in room temperature 40C and 15%-65% RH enviroment.
Appliance:
Power suppliers, beauty & health care, home appliance, machinery, measurement & instruments, medical part, service equipments, telecommunication.
