| Type: | Axial Flow Fan |
|---|---|
| Certification: | CE,CSA,ROHS,UL |
| Air Volume: | 129CFM |
| Voltage: | 48V |
| Brand Name: | X-FAN |
| Type: | DC FAN |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Speed: | 2900RPM |
| Power: | 14.40w |
| Model Number: | RDM1238B4 |
| Place of Origin: | China (Mainland) |
| Blade Material: | Plastic |
| Mounting: | |
| DC FAN: | 48V |
| 120x120x38: | 0.30A |
| Ball bearing type: | 2900rpm |
| UL CUL TUV CE: | 70000hours |
Quick Details
Specifications
the following example is for you reference.

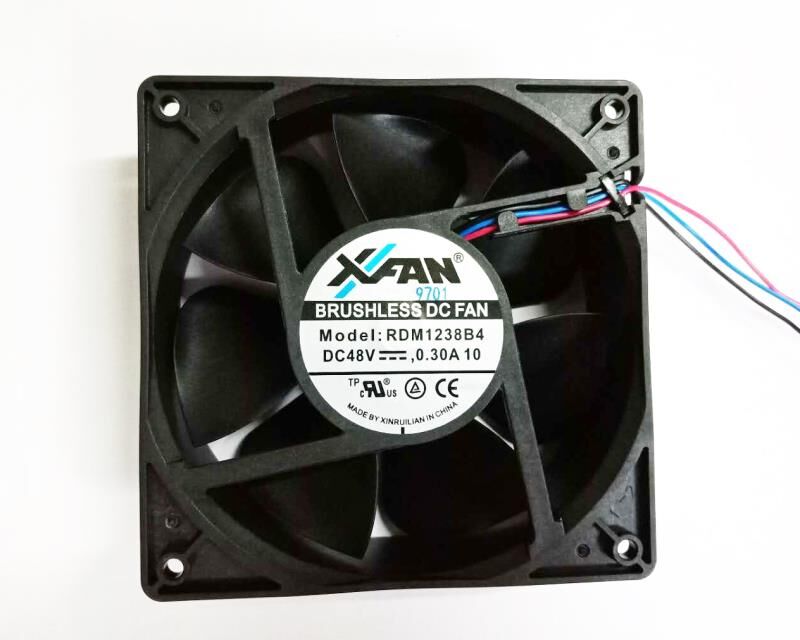

1.Brief Spec:
DC fan, rated voltage 48V
Size 120x120x38mm,
Ball bearing,
2900rpm, 0.30A, 129CFM, 7.8mmH2O, 44dba
3 wires, red/black/blue, with tach output function and auto restart
UL/CUL/TUV/CE approvals
2.Techincal parameters:
DC 48V
Size 120x120x38mm,
Ball bearing,
2900rpm, 0.30A, 129CFM, 7.8mmH2O, 44dba
3 wires, with tach output function and auto restart
Insulation class: UL class A
3.Features optionals:
1). Standard 2 wires with auto restart
2). 3 wires with tachout or rotation detector
3). 4 wires with tachout and PWM
4. Application:
this model widely used in service equipments, telecommunications, machinery
