| Feature: | Tower Crane |
|---|---|
| Certification: | ISO |
| Brand Name: | VANSIN |
| Max. Lifting Height: | 300m |
| Max. Lifting Load: | 8t |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 12 months |
| Model Number: | TC6513 |
| Place of Origin: | China (Mainland) |
| Span: | 65m |
| Rated Lifting Moment: | 1250kn.m |
| Rated Loading Capacity: | 8t |
| Application: | Building construction |
| Product name: | 8t 65m jib TC6513 topkit tower hat construction tower crane full welded mast section self erecting crane used in Dubai |
| Max load: | 8t |
| Jib length: | 65m |
| Tip load: | 1.3t |
| Freestanding height: | 45m |
| Mast section: | 1.8*1.8*2.8m |
| Crane model: | Topkit tower crane |
Quick Details
Specifications
8t 65m jib TC6513 topkit tower hat construction tower crane full welded mast section self erecting crane used in Dubai

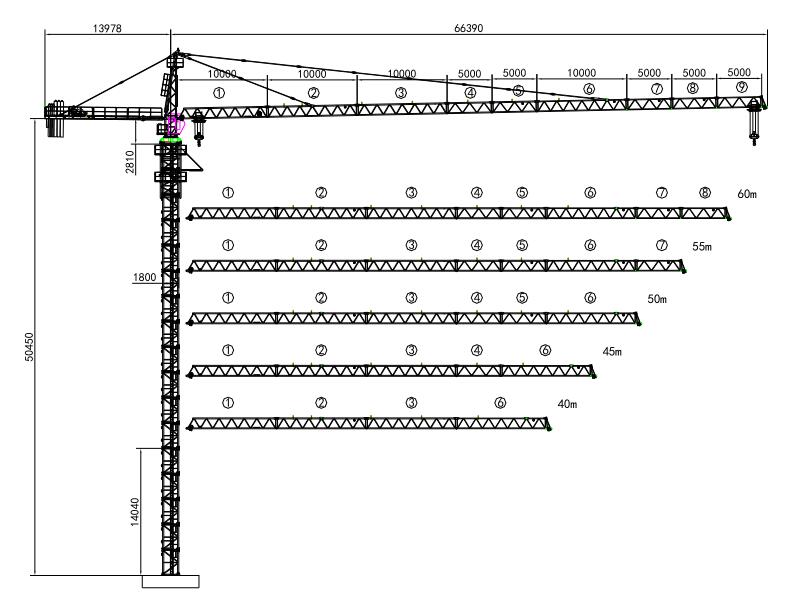

1. Overview for the 8t topkit tower crane with tower hat, 65m jib

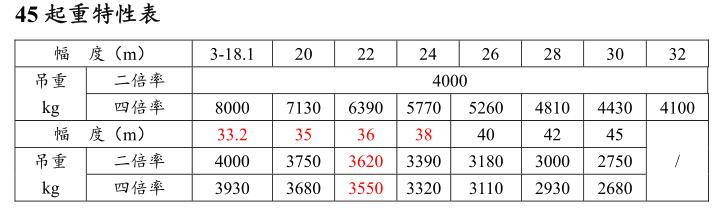

2. Load diagram for the 8t toWer crane, can change the boom length to be 60m, 55m, 50m, 45m, 40m
3. Mechanisms, including hoisting meChanism, slewing mechanism, trolleying mechanism, jacking mechanism
4. Robot welding system, mast section welding robot, turntable welding robot, Panasonic welding robot, ABB welding robot
5. Painting line, automatic shot blasting and painting line, spraying plastic line
6. CNC PlasmA cutting machine, smooth surface, high quality
7. Mast section in stock, split mast section, L46A1, L68A1, L68B1, L68B2, L69A1
