the following example is for you reference.

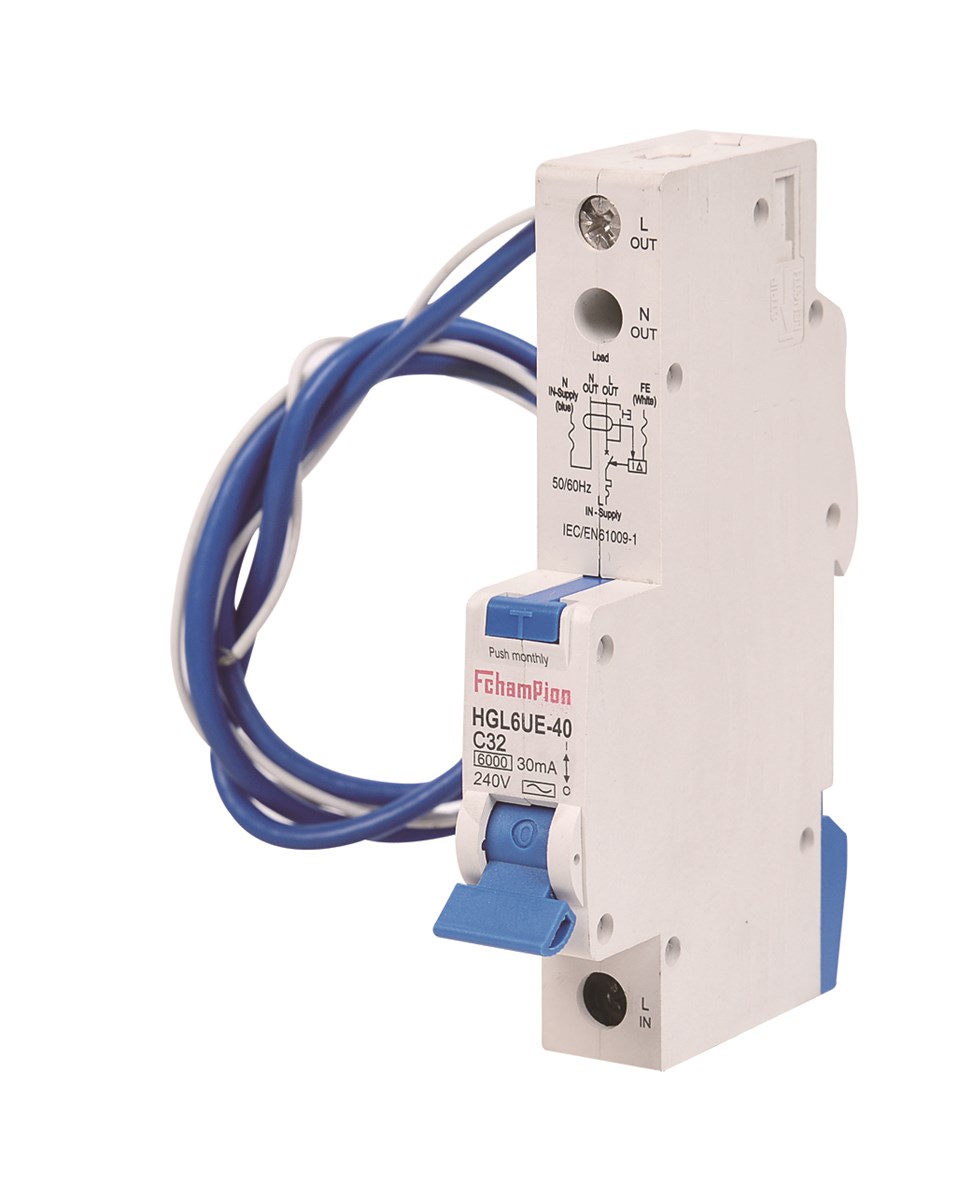

Features:



 Standard IEC/EN61009-1 GB/T16917.1
Instantaneous trip type B/C/D
the number of poles 1P+N
Rated short circuit breaking capacity Icn 6kA
Release Type of Leakage Protection Electronic
Rated working current In 6-40A
Rated working voltage Ue AC 230V
Rated operating frequency 50/60Hz
Rated insulation voltage Ui 500V
Rated residual operating current  I n 10/30/100/300 mA
Life 4000 Times
Residual current type A/AC

Technical details:





Operation method of useage:





Package:
