| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Sling Type: | Cable |
| Power Source: | Electric |
| Brand Name: | VANSIN |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | ISO |
| Lift Speed: | 33m/min |
| Maximum Lifting Height: | 250m |
| Maximum Lifting Weight: | 4t |
| Usage: | Construction Hoist |
| Model Number: | SC200/200 |
| Place of Origin: | China (Mainland) |
| Product name: | 4t load double cage SC200/200 electric construction elevator frequency type used in Philippines |
| Cage type: | Double cage |
| Cage size: | 3.0*1.5*2.2m |
| Power source: | Electric construction elevator |
| Motor power: | 2*3*11kw |
| Speed: | 0-63m/min |
| Mast section: | 0.65*0.65*1.508 |
| Main chord: | 76*6mm |
| Material: | Q345B Manganese Steel |
| Color: | Customized |
Quick Details

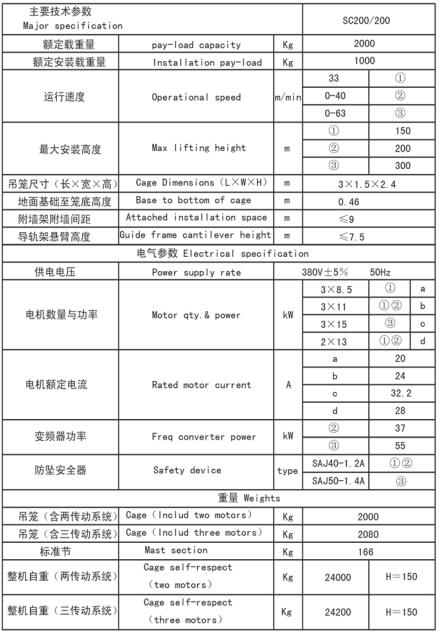

Specifications
4t load double cage SC200/200 electric construction elevator frequency type used in Philippines

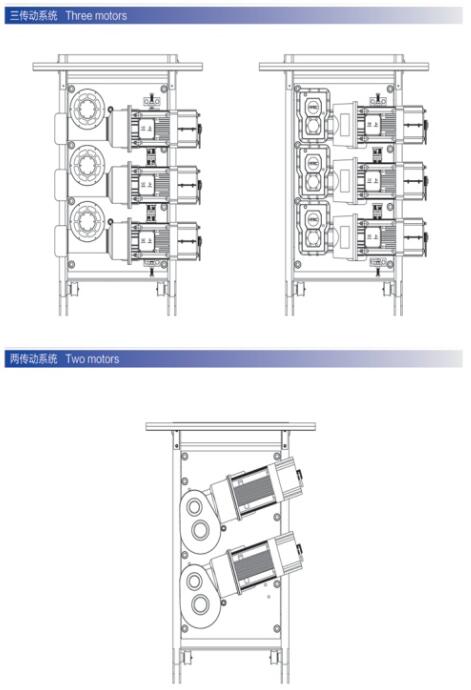

2. Mechanisms of the construction elevator, VFD, two drive, three drive. Wall tie and mast section of the construction elevator
3. RObot welding system for the mast section
4. Painting line for mast seCtion, hoisting jib, balance jib, wall tie, etc.

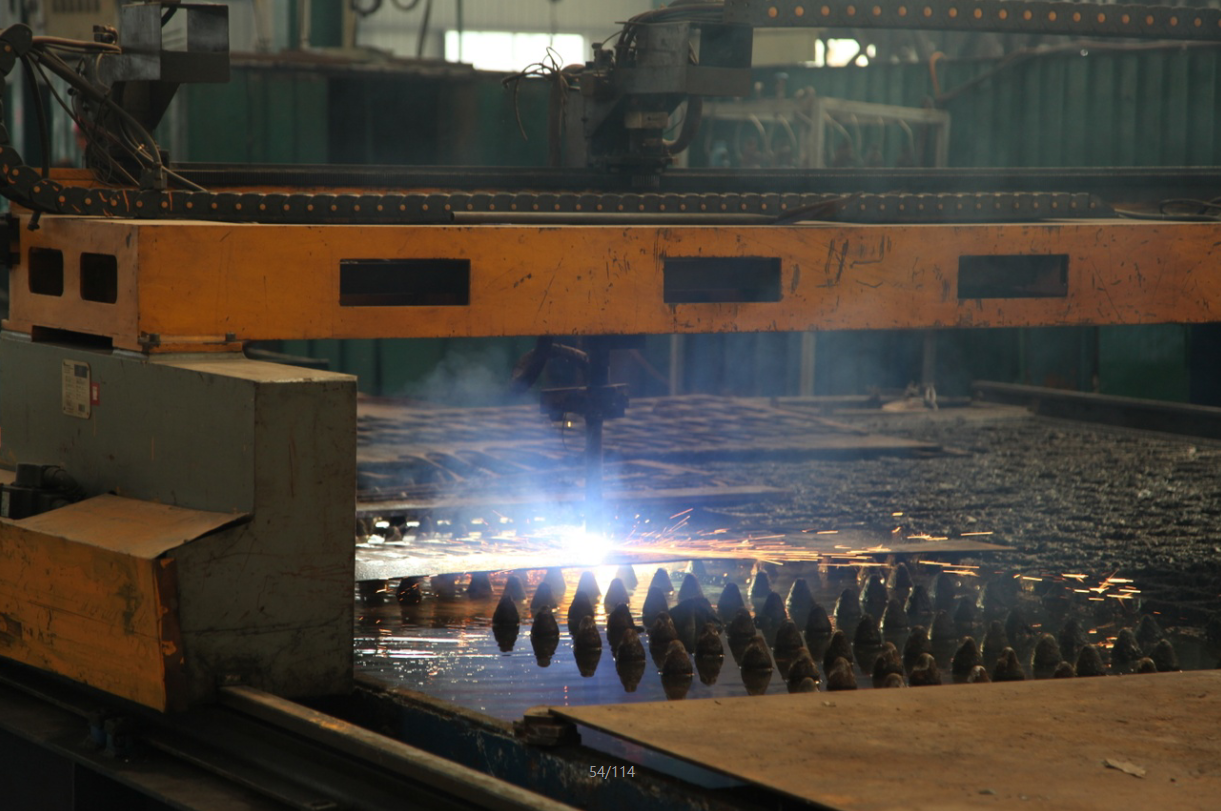

5. CNC Plasma Cutting machine for the smooth surface
