| Type: | Other |
|---|---|
| Certification: | CE,CSA,ROHS,UL |
| Voltage: | 220-240V |
| Power: | 20W |
| Brand Name: | X-FAN |
| Type: | AC Axial Fan |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Speed: | 2500/2900RPM |
| Air Volume: | 117/137CFM |
| Model Number: | RAM1278B1-C |
| Place of Origin: | China (Mainland) |
| Mounting: | |
| Blade Material: | Plastic |
| AC Axial Fan: | 220-240V |
| 127x127x38mm: | 0.09A |
| Ball bearing type: | 2500/2900RPM |
| UL CUL TUV CE: | 70,000hours |
Quick Details
Specifications
the following example is for you reference.

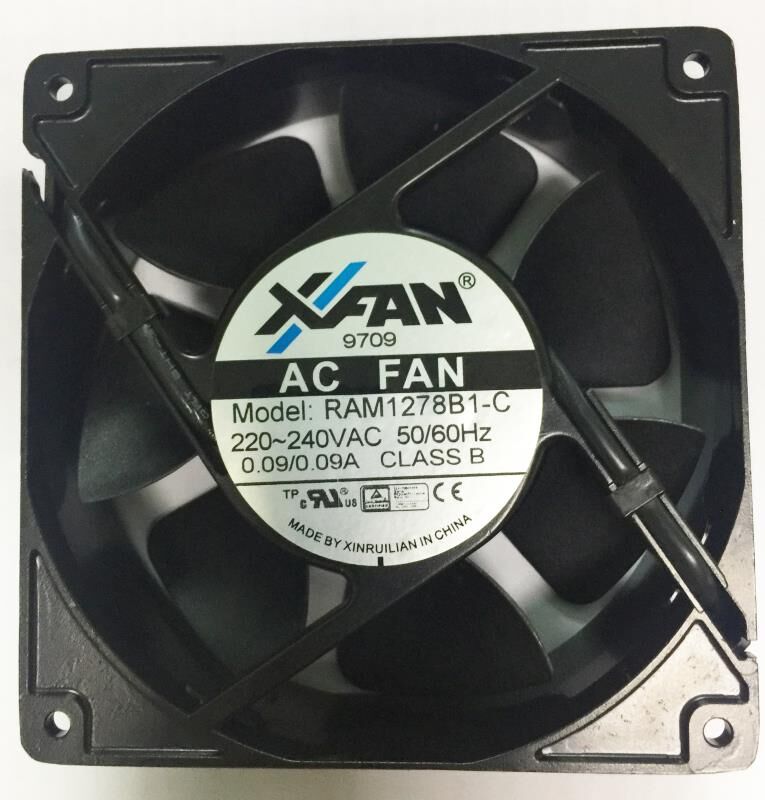

1. Specification:
AC fan,
Model No.: RAM1278B1-C,
Aluminum Alloy frame, PA6 impeller
Capacitor-run induction motor
Size 127x127x38mm, 220~240V,
Ball bearing type
50/60HZ, 20/20W, 2500/2900RPM,
117/137CFM, 42/46dba
Terminal type
UL/CUL/TUV/CE approvals
ROHS
2.Features optional:
this size is also available in sleeve bearing;
Terminal type or lead wire type can be chosed
100~125V voltage available
Air flow: 117~151 CFM
3.Life time:
50,000hours while the fan works at room temperature and relative 15%~65% RH enviroment.
4. Application:
Customer use this model inside machinery, energy products, home appliance for heating removal.
