| Material: | Brass |
|---|---|
| Size: | M16-100,G1/2-G4,NPT1/2-NPT4 |
| Protection Level: | IP68 |
| Brand Name: | Sanhui |
| Color: | Metallic color |
| Model Number: | SH-BDM-2 |
| Place of Origin: | China (Mainland) |
| Optional materials: | Stainless steel |
| Seal: | Silicon rubber |
| Claw: | PA66 |
| Fireproof classification: | Vo |
| Environmental conditions: | Environmental conditions : |
| Thread: | M,G,NPT |
Quick Details
Specifications
Materials:Brass,Stainless steel 304,316
Surface treatment:Nickel planted,Passivation
Sealing materials:Silicon rubber,Neoprene,Teflon,PA6
Explosion mark:Exd IIC GB/Exe II GB/Ex tD A21 IP68
Fireproof grade:V0(UL94)
Protection level:IP68 (screwed-on the cap)
Ambient temperature:Static from -60 to 100,short up to 120
Dynamic from -20 to 80,short up to 100 without halide.
Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,Strict21,22 inflammable dust environment,it is widely used in petroleum, chemical, warehouse, food, pharmaceutical, military and other electrical cable fixing and sealing.

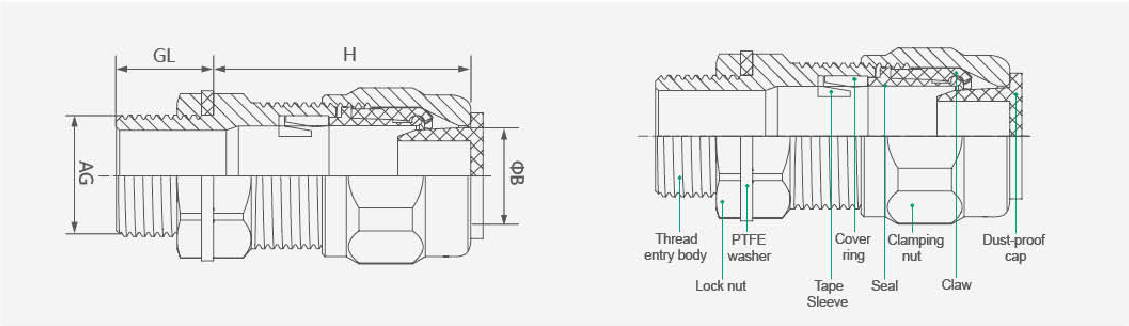

Mode |
Entry thread size AG |
Cable Acceptance details |
H |
GL |
Hexagon size | ||||||
Inner Sheath |
outside diameter(B) |
Wire armored /belt/knits | |||||||||
M |
NPT.G |
Min |
Max |
1 |
Orientation 2 |
across flats |
across corners | ||||
SHBDM-2-01o |
M20 |
1/2" |
<8 |
5.5 |
12.0 |
0.9/1.25 |
0/0.7 |
30.0 |
16 |
24.0 |
27.7 |
SHBDM-2-01S |
M20 |
1/2" |
<12 |
9.5 |
16.0 |
0.9/1.25 |
0/0.7 |
38.0 |
16 |
24.0 |
27.7 |
SHBDM-2-02 |
M25 |
3/4" |
<15 |
12.5 |
20.5 |
0.9/1.25 |
0/0.7 |
38.0 |
16 |
30.0 |
34.6 |
SHBDM-2-03 |
M32 |
1" |
<21 |
16.9 |
26.0 |
1.25/1.6 |
0/0.7 |
44.0 |
18 |
36.0 |
41.6 |
SHBDM-2-04 |
M40 |
1 1/4" |
<27 |
22.0 |
33.0 |
1.6/2.0 |
0/0.7 |
46.0 |
18 |
45.0 |
53.1 |
SHBDM-2-05 |
M50 |
1 1/2" |
<33 |
28.0 |
41.0 |
1.8/2.5 |
0/0.7 |
50.0 |
20 |
55.0 |
63.5 |
SHBDM-2-06 |
M63 |
2" |
<43 |
36.0 |
52.6 |
1.8/2.5 |
0/1.0 |
64.0 |
20 |
68.0 |
75.1 |
SHBDM-2-07 |
M75 |
2 1/2" |
<54.4 |
46.0 |
65.3 |
1.8/2.5 |
0/1.0 |
70.0 |
20 |
80.0 |
92.4 |
SHBDM-2-08 |
M85 |
3" |
<66 |
57.0 |
78.0 |
1.8/2.5 |
0/1.0 |
80.0 |
20 |
95.0 |
109.6 |
If some requirement,welcome to contact with us.
