| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ce |
| Weight: | 500kg |
| Brand Name: | HOPU |
| Condition: | New |
| Dimension(L*W*H): | 1.5x1.2x1.7 |
| Power(W): | 20 to 60 |
| Voltage: | 380 |
| Usage: | Insulation Oil |
| Model Number: | ZYD-M |
| Place of Origin: | China (Mainland) |
| Working Pressure: | 0.03 |
| Flow: | 50LPM |
| TRAILER: | 2 or 4 wheels mounted |
Quick Details
Specifications
Function

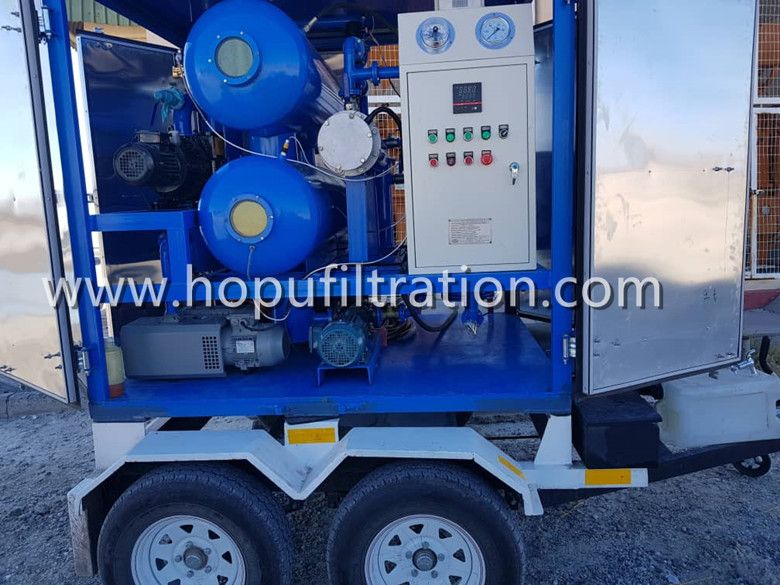

ZYD-M mobile oil purifier is movable trailer type transformer oil regeneration system easily move for long distance. It is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color.
Trailer Mounted Enclosed Double Stage Vacuum Dehydration Transformer Oil Purifier can quickly remove the water, gas, and other contaminants such as solid particles in the waste insulating oil, transformer oil, capacitor oil, switch oil, mutual inductor oil, etc. The breakdown voltage of the oil after processed can be improved by 35KV or above just for one-time. It is mainly suitable for the power transmissions equipment whose voltage is 110KV or above.
the machine is equipped with canopy and mobile trailer, which is suitable for both indoor and outdoor usage and convenient to move for long distance.
Features
1. Equipped with trailer, it moves very easily and can be used both indoor and outdoor.
2.Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.
1. Equipped with trailer, it moves very easily and can be used both indoor and outdoor.
2.Unique vacuum dehydration, degassification and regeneration system, adopt stereo-evaporation technology. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
3. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
4. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
5. Can be applied for vacuum oiling and drying power transmission equipment.
6. Special additives for depolarization can recover oil color of aged transformer oil to new.
Technical Parameter | ||||||||
| Item | Unit | ZYD-M-30 | ZYD-M-50 | ZYD-M-100 | ZYD-M-150 | ZYD-M-200 | ZYD-M-250 | ZYD-M-300 |
| Flow rate | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Working vacuum | MPa | -0.08~-0.099 | ||||||
| Working pressure | MPa | 0.3 | ||||||
| Temperature range | C | 20 ~ 80 | ||||||
| Power | 3 ph 380V 60Hz (or as needed) | |||||||
| Working noise | DB(A) | 70 | 70 | 70 | 75 | 75 | 75 | 75 |
| Heating power | kW | 28 | 30 | 45 | 60 | 75 | 90 | 120 |
| Total power | kW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 |
| Oil Inlet/Outlet | mm | 25 | 32 | 42 | 50 | 50 | 60 | 60 |
| Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 |
| mm | 1500 | 1600 | 1800 | 1900 | 2000 | 2100 | 2200 | |
| Overall | mm | 800 | 850 | 1100 | 1150 | 1200 | 1200 | 1200 |
| mm | 1600 | 1700 | 1900 | 2000 | 2100 | 2200 | 2300 | |
Guarantee Value:
| Item | Unit | after treatment |
| Breakdown Voltage | kV | 75 |
| Moisture content | PPM | 3 |
| Gas content | % | 0.1 |
