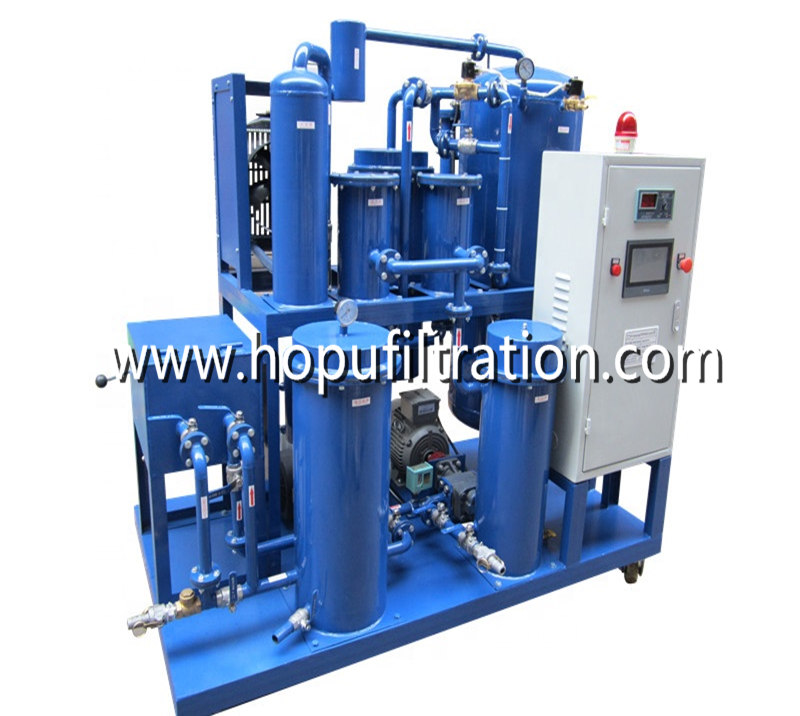

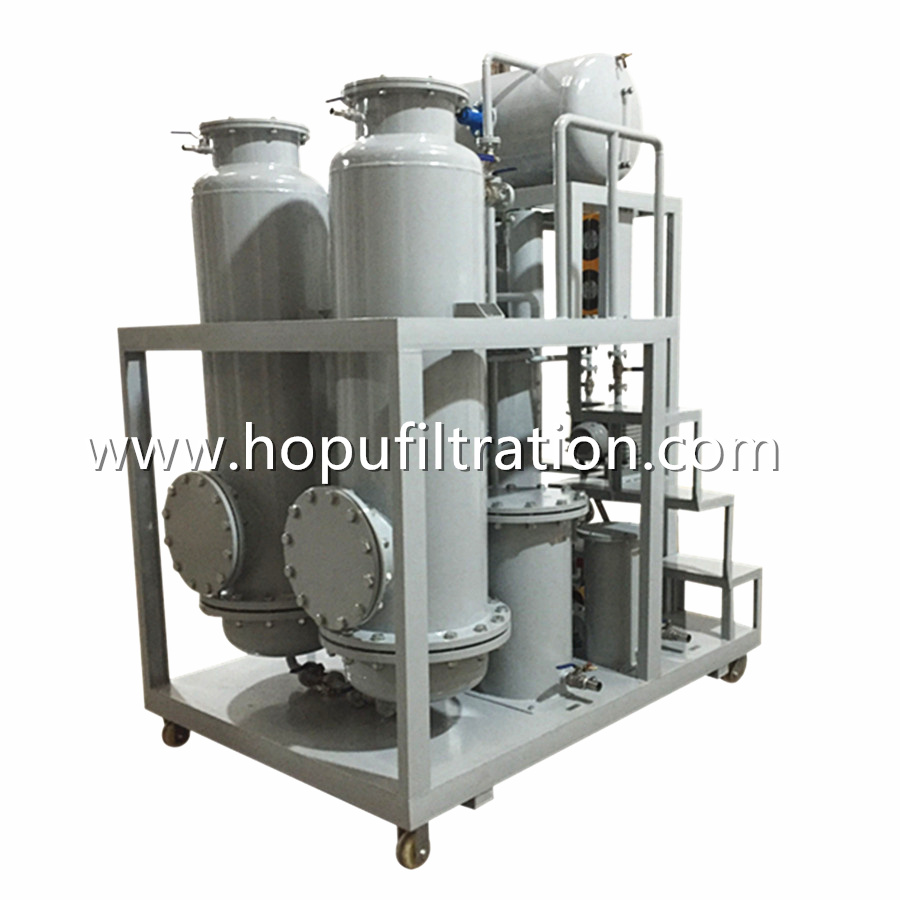

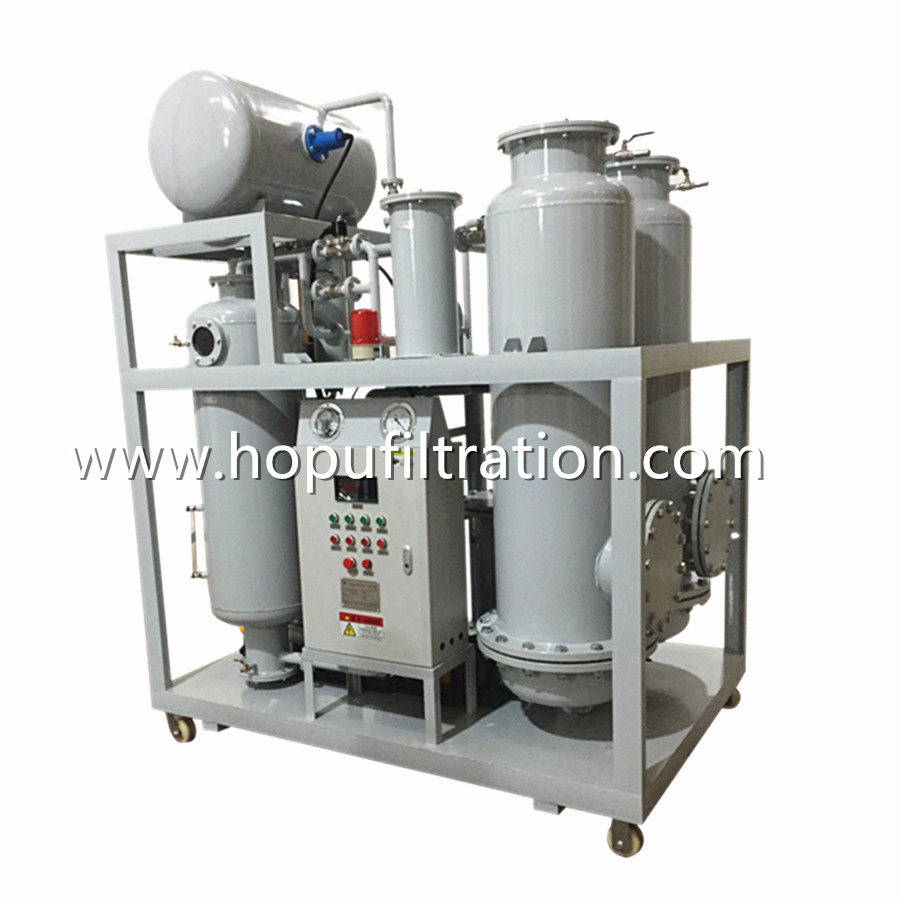

Frying Oil Purification Plant, Cooking oil decolorization System, Waste Restaurant Oil Purifier,factory sale

1.It dewater, deodorize, and eliminate impurities highly effective.

2.According to Cooking oil`S Nature of high water, more acid matter, much impurity and offensive

odor content, tHis machine adopts Plate Pressure system Which Can separate the sundry goods and

Water from the oil quickly and effectively. Then superadd two primary filters and fine filter, it can remove

Impurities thoroughly. next, the machine adopts highly vacuum system to dewater and deodorize. In addition,

this machine uses stainless steel filter element, it resists the acid in oil strongly.



Product Features



1.the product is equipped with three stage purification, portable, easy to operate, very low price,

No need of Purification paper, No contamination to the ground.

2.this machine can fast degas, dewater, and remove the Impurities such as the harmful subStances,

Pigment, suspended solids, FFA and so on.

3.It can Enhance the oil quality, restore the cooking oil viscosity, improve the oil`s color and Transparence

with the REGENERATION systems, which can reduce acid value, peroxide value, color, Odor and

Heavy metals augments of Frying oil and improve its operational performance.



Technical Parameter



1.the Purifier could effectively remove the FFA, dust, impurities, water and organic substance

Contained in waste oil.

2.It has a strong demulsifying capability, which could separate large amount of water from oil.

3.It has a strong impurity removing capability for the using of special filtration materials applications

to increase the Filtration area and Its Accuracy. Its large area and intensive precision filtration materials

Can remove the tiny particles in the oil while the backwash function automatically cleans the large amount

of dirt in the filter, serving as a Cleaning device to the system, thus the seriously contaminated oil can be

Brought back to a specification under Control.

Technical Data:

Item	Unit	COP-10 l/minute	COP-20 l/minute	COP-30 l/minute	COP-50 l/minute	COP-100 l/minute	COP-150 l/minute	COP-200 l/minute	COP-300 l/minute
Vacuum degree	Mpa	-0.06 ~- 0.095
Working pressure	Mpa	0.4
Temperature range		0~100 adjustable depend on oil type
Working noise	dB(A)	75	75	75	78	78	78	80	82
Heating power	KW	36	40	45	60	90	120	180	195
Total power	KW	38	42	47	65	96	127	197	217
Inlet/outlet caliber	mm	25	25	25	32	42	50	50	60
Dimension	m	1.7*1.15*1.7	1.75*1.15*1.75	1.8*1.2*1.75	1.85*1.3*1.85	1.9*1.5*1.9	1.9*1.7*2.0	2.1*1.7*2.1	2.2*1.7*2.2
Weight	kg	450	550	600	750	850	1000	1200	1500
Demulsification value	min	15
Power supply		380V 50HZ 3Phase(or as customer request)
Water content	PPM	50
Particles	m	1~5 without free carbon
Cleanness	NAS	6 Grade(NAS1638)
