| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE, ISO, SGS, BV |
| Weight: | 330Kg~1700Kg |
| Brand Name: | Yuneng |
| Condition: | New |
| Dimension(L*W*H): | As per capacity |
| Power(W): | 13.5~127KW |
| Voltage: | 380V or as per request |
| Usage: | Lubricant Oil |
| Model Number: | ZJC1.8KY, ZJC3KY,ZJC6KY,ZJC9KY,ZJC12KY |
| Place of Origin: | China (Mainland) |
| Working Pressure: | Less than 0.5MPa |
| Flow: | 30~200L/min |
| Function: | Compressor Oil Purifying Machine |
| Structure Material: | Carbon steel |
| Horizontal tank: | Considering viscosity, better for dehydration |
| Heater: | Low heat load, carbon steel |
| Electric wiring: | IEC standard |
| Filter: | International famous brand, high quality |
| Working vacuity: | -0.07 ~ -0.09MPa |
| Working tempwerature: | 40~60 Celsius |
| Worter content: | Less than 50PPM |
| Filtering accuracy: | 3 micron |
Quick Details
Specifications

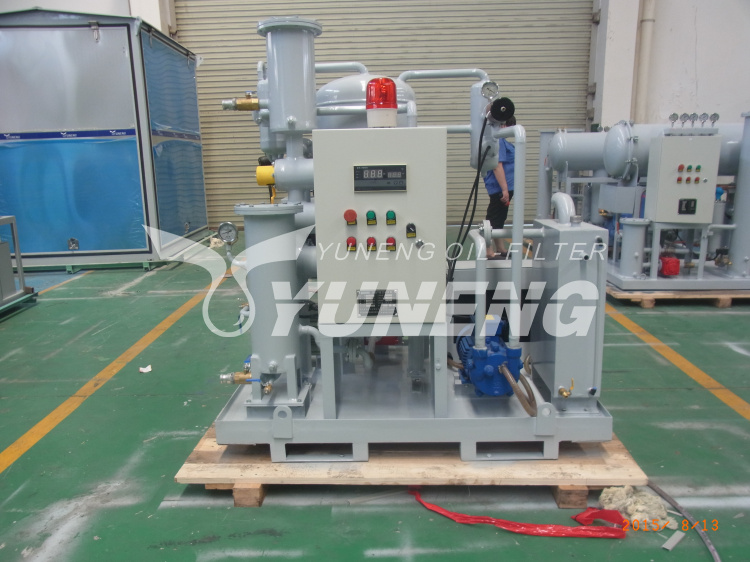

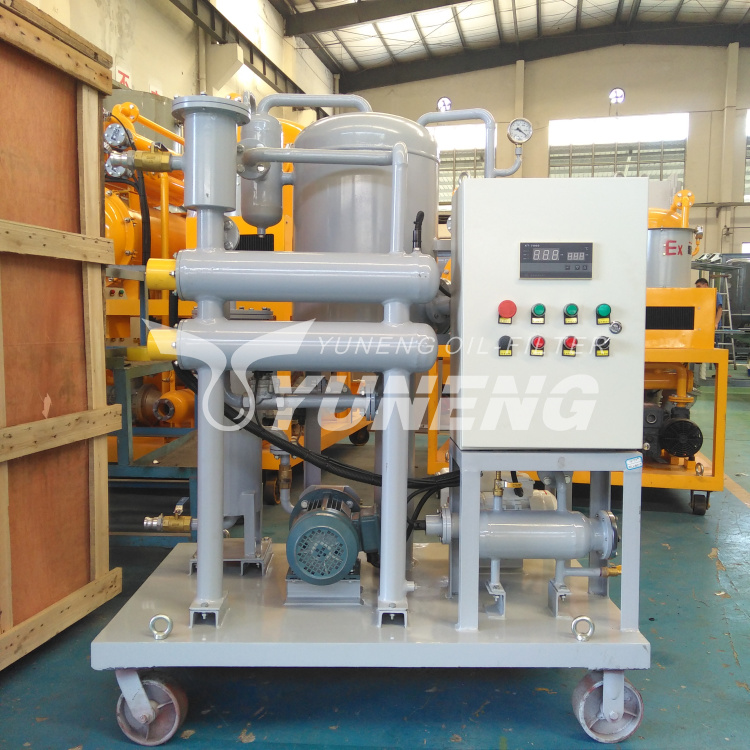

Compressor Oil Purifying Machine with Water Content Less Than 50PPM
Compressor Oil Purifying Machine with Water Content Less Than 50PPM Are mainly designed to purify various industrial waste oils with the viscosity lower than 320 mm/s, such as tirbine oil, mechanical oil, hydraulic oil and cooler oil etc. Which are polluted by the water infiltration, emulsification and particle pollution etc. In the process of their production, transportation and usage. through special design of the vacuum separation system and the impurity filtering system, Yuneng oil filters can effectively filter out various pollutants in the oil. It has remarkable economic benefits, it will be an ideal choice for the plants maintenance service, energy-saving and cost-reducing.
Compressor Oil Purifying Machine with Water Content Less Than 50PPM Are mainly designed to purify various industrial waste oils with the viscosity lower than 320 mm/s, such as tirbine oil, mechanical oil, hydraulic oil and cooler oil etc. Which are polluted by the water infiltration, emulsification and particle pollution etc. In the process of their production, transportation and usage. through special design of the vacuum separation system and the impurity filtering system, Yuneng oil filters can effectively filter out various pollutants in the oil. It has remarkable economic benefits, it will be an ideal choice for the plants maintenance service, energy-saving and cost-reducing.
| Item | Name of parameter | Unit | Model | |||||
| ZJC1.8KY | ZJC3KY | ZJC6KY | ZJC9KY | ZJC12KY | ||||
| Technical parameter of the equipment | Nominal flow capacity | L/min | 30 | 50 | 100 | 150 | 200 | |
| Working vacuity | MPa | -0.07 ~ -0.09 | ||||||
| Working pressure | MPa | 0.5 | ||||||
| Working temperature of oil | 40~60 | |||||||
| Working power | (380V-50Hz) 3Phase 4 Wires, or as per buyer's option | |||||||
| Total electric power | KW | 13.5 | 33 | 65 | 97 | 127 | ||
| Pipe diameter of oil outlet/inlet | DN | 25/25 | 32/32 | 40/40 | 50/50 | 65/65 | ||
| Size | Length | cm | 130 | 155 | 190 | 180 | 185 | |
| Width | cm | 95 | 110 | 110 | 140 | 145 | ||
| Height | cm | 140 | 170 | 180 | 210 | 220 | ||
| Weight | Kg | 330 | 560 | 950 | 1300 | 1700 | ||
| Oil treatment index | Water content | PPM | 50 | |||||
| Filtering accuracy | m | 3 | ||||||
| Impurities | None (by visual inspection) | |||||||
