| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE, ISO, SGS, BV |
| Weight: | 310Kg~2200Kg |
| Brand Name: | Yuneng |
| Condition: | New |
| Dimension(L*W*H): | As per capacity |
| Power(W): | 4~27KW |
| Voltage: | 380V or as per request |
| Usage: | Transformer Oil |
| Model Number: | ZJ-70,ZJ-150,ZJ-300,ZJ-600,ZJ-1200 |
| Place of Origin: | China (Mainland) |
| Working Pressure: | Less than 0.5MPa |
| Flow: | 30~300L/min |
| Application: | Vacuum Pumping Set For Vacuum Drying |
| Structure Material: | Carbon steel |
| Vacuum pumps: | 2 stage rotary vacuum pump+booster roots pump |
| Oil pump: | Centrifugal oil pump, better than gear pump |
| Electric wiring: | IEC standard |
| Pumping level: | 2 |
| Pumping speed: | 70~1200L/s |
| Power: | 4~27KW |
| Color: | Gray or as per buyers |
| Usage: | Vacuum Pumping Set For Vacuum Drying |
Quick Details
Specifications

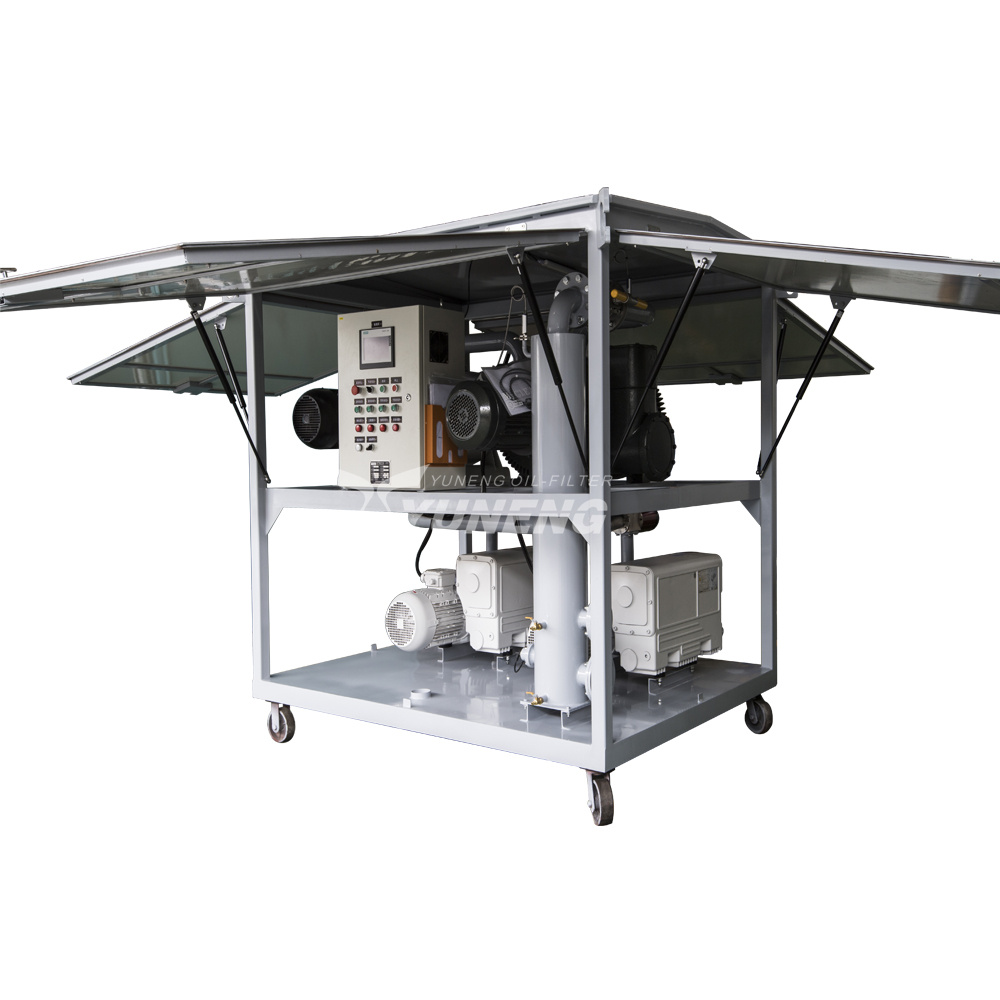

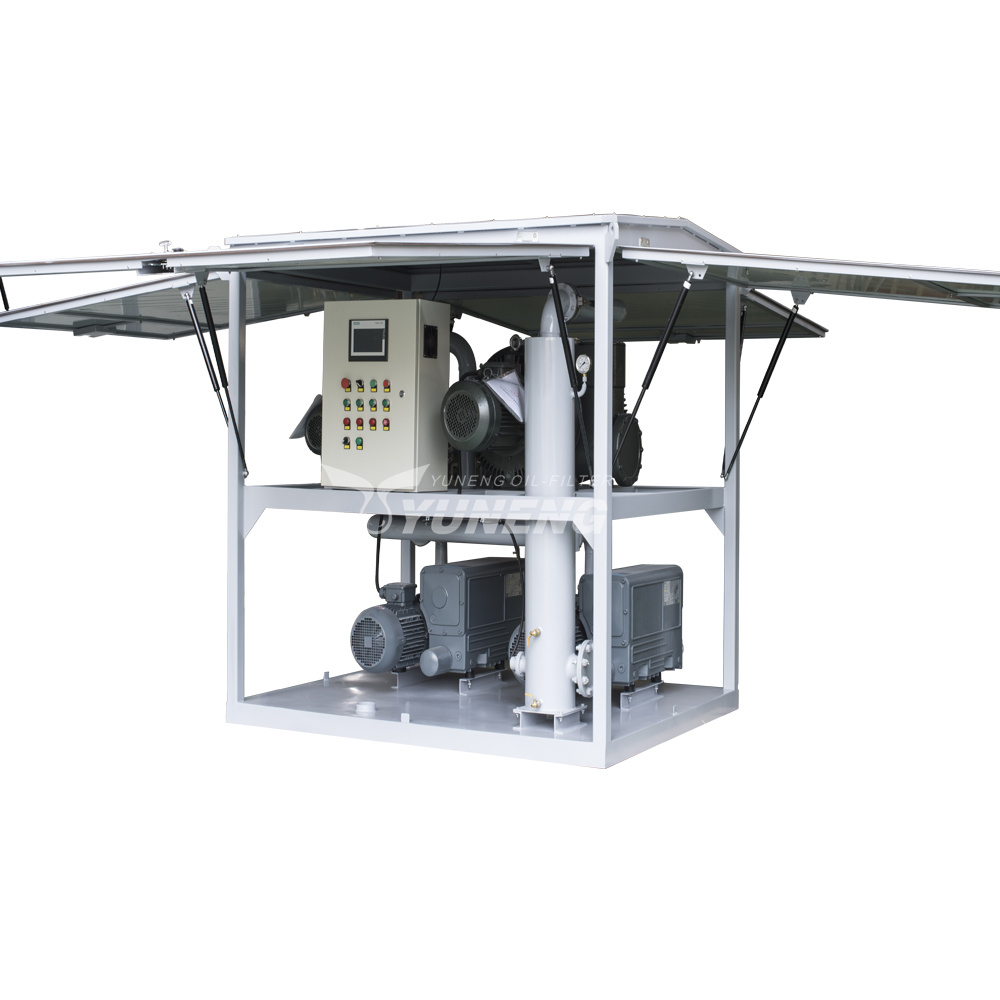

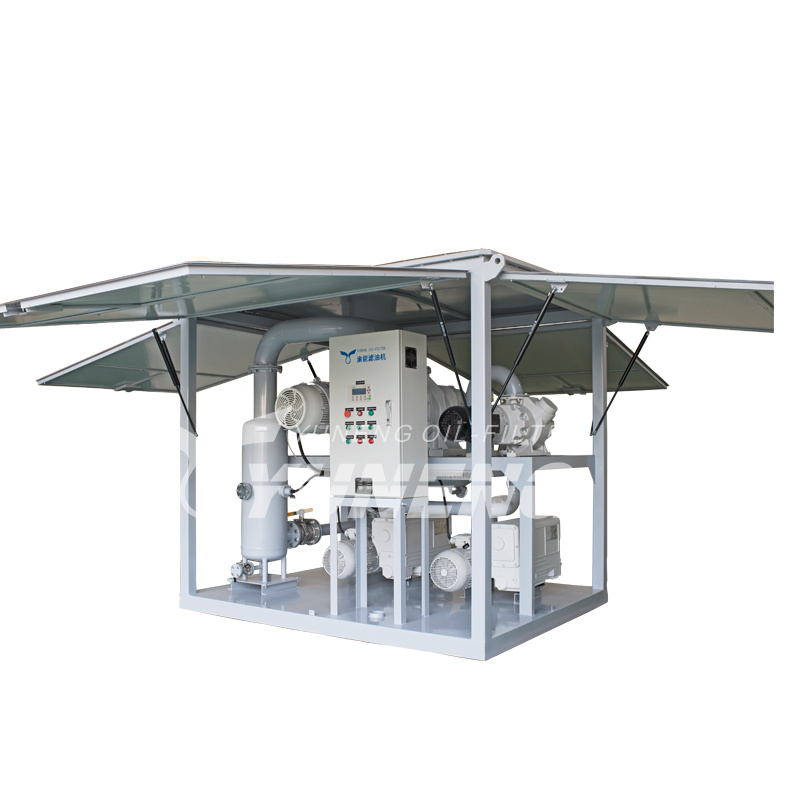

Vacuum Pumping Set for Vacuum Drying In High Voltage Electrical Transformer
Vacuum Pumping Set for Vacuum Drying In High Voltage Electrical Transformer is mainly used for vacuum drying and vacuumization while injecting oil in high voltage electrical transformer such as 220KV, 500KV, 800KV, 1000KV, by selecting world famous German vacuum pumps, the working vacuity can reach up to 10Pa, limit vacuity up to 1Pa. and the GIS interface and vacuum degree intelligent setting are available according to customer's requirement. the advantages include anti-sucking, fast startup, quick pumping, stable performance and simple operation.
Vacuum Pumping Set for Vacuum Drying In High Voltage Electrical Transformer is mainly used for vacuum drying and vacuumization while injecting oil in high voltage electrical transformer such as 220KV, 500KV, 800KV, 1000KV, by selecting world famous German vacuum pumps, the working vacuity can reach up to 10Pa, limit vacuity up to 1Pa. and the GIS interface and vacuum degree intelligent setting are available according to customer's requirement. the advantages include anti-sucking, fast startup, quick pumping, stable performance and simple operation.
1. GIS connection available
2. Digital vacuum degree management
3. Anti-absorption
4. Machine can start fast
5. Strong vacuum pumping capacity
6. Stable performance
7. Easy operation
There is a combination of axial fan and condenser to deal moisture and gas from vacuum pump and roots pump, it can prolong time to change vacuum oil while meet emission standard.
| Name of Parameter | Unit | Model | |||||
| ZJ-70 (252 m/h) |
ZJ-150 (540 m/h) |
ZJ-300 (1080 m/h) |
ZJ-600 (2160 m/h) |
ZJ-1200 (4320 m/h) | |||
| Pumping speed | L/s | 70 | 150 | 300 | 600 | 1200 | |
| Limit vacuity | PA | 3 | 3 | 3 | 3 | 1 | |
| Pumping level | 2 | 2 | 2 | 2 | 3 | ||
| Working power | (380V-50Hz) 3Phase 4Wires, or as per buyer's option | ||||||
| Power | KW | 4 | 6 | 10 | 14 | 27 | |
| Diameter of vacuum connection | DN | 25 | 40 | 50 | 65 | 80 | |
| Size | Length | cm | 120 | 130 | 150 | 160 | 250 |
| Width | cm | 95 | 100 | 115 | 115 | 175 | |
| Height | cm | 150 | 160 | 185 | 200 | 200 | |
| Weight | Kg | 310 | 430 | 520 | 780 | 2200 | |
